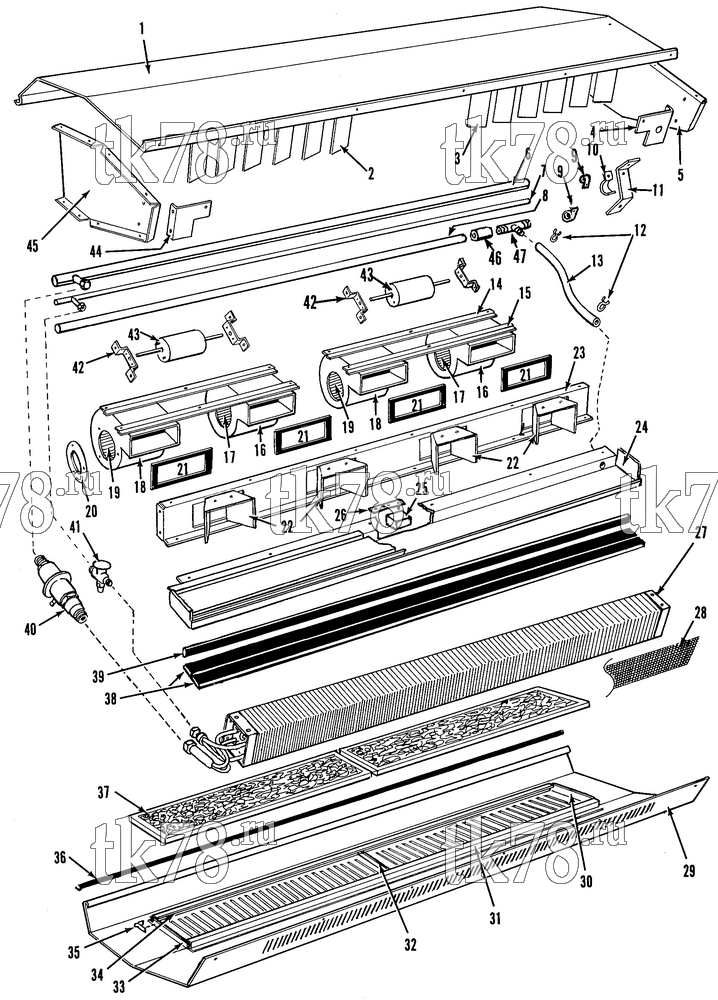

Установкa Thermo King схема EVAPORATOR ASSEMBLY (B3 1005 & 1015, Before 5/79) – 99F12
Обновление от: 1/13/99
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-3943 | HOUSING - evaporator | 1 | |
| 55-2872 | NUT - rivet (10-32) | 29 | ||
| 55-3736 | NUT - rivet (1/4-20) | 12 | ||
| 33-1114 | GASKET - between housing & coil | 1 | ||
| 2 | 99-4073 | DEFLECTOR - air (left) | 1 | |
| 3 | 99-4074 | DEFLECTOR - air (right) | 1 | |
| 55-2012 | RIVET - deflector | 6 | ||
| 4 | 99-4075 | PANEL - air block | 1 | |
| 55-1322 | PLUG - button | 1 | ||
| 55-2778 | SCREW - panel | 3 | ||
| 55-5563 | NUT - captive | 2 | ||
| 5 | 99-4076 | PANEL (right) | 1 | |
| 55-1510 | SCREW - panel | 5 | ||
| 55-431 | FLATWASHER | 5 | ||
| 6 | 66-2566 | TUBE - suction | 1 | |
| 7 | 66-2567 | TUBE - liquid | 1 | |
| 8 | 66-2568 | TUBE - evaporator drain | 1 | |
| 9 | 55-549 | CLAMP (0.5 in dia) | 3 | |
| 55-1203 | CLAMP (0.875 dia) | 3 | ||
| 10 | 55-3738 | CLAMP | 3 | |
| 11 | 99-4077 | BRACKET | 3 | |
| 55-1510 | SCREW - bracket/clamp | 8 | ||
| 55-1511 | LOCKWASHER | 8 | ||
| 55-431 | FLATWASHER | 8 | ||
| 55-664 | NUT | 8 | ||
| 12 | 55-8270 | CLAMP - hose | 3 | |
| 13 | 98-1201 | HOSE - drain (25 ft) | A/R | |
| 14 | 99-4149 | BRACKET | 2 | |
| 55-5655 | SCREW - bracket | 16 | ||
| 15 | 99-4148 | BRACKET | 2 | |
| 16 | 99-4150 | HOUSING - blower | 2 | |
| 17 | 78-424 | WHEEL - blower | 2 | |
| 18 | 99-4151 | HOUSING - blower | 2 | |
| 19 | 78-425 | WHEEL - blower | 2 | |
| 20 | 77-1127 | RING - inlet | 2 | |
| 55-5655 | SCREW - ring | 12 | ||
| 21 | 33-1125 | GASKET | 4 | |
| 22 | 99-4152 | BAFFLE | 4 | |
| 55-2778 | SCREW - baffle | 8 | ||
| 23 | 99-4153 | PANEL | 1 | |
| 55-5563 | NUT - speed | 8 | ||
| 24 | 98-1490 | PAN - drain | 1 | |
| 25 | 99-8437 | BRACKET - terminal board/circuit breaker/resistor | 1 | |
| 44-5512 | BREAKER - circuit (30 amp, 12V) | 1 | ||
|
10-44-5512 | Автоматический выключатель, 30A | 2 260 ₽ |
|
| 44-3753 | BREAKER - circuit (15 amp, 24V) | 1 | ||
| 44-6660 | RESISTOR (12V units) | 1 | ||
| 44-9043 | RESISTOR (24 V units) | 1 | ||
| 44-6695 | JUMPER - circuit breaker | 2 | ||
| 44-6694 | BOARD - terminal | 1 | ||
| 44-6696 | MARKSTRIP - terminal board | 1 | ||
| 26 | 99-3413 | NUTSTRIP - bolt | 1 | |
| 55-401 | FLATWASHER | 2 | ||
| 55-3496 | LOCKWASHER | 2 | ||
| 55-346 | NUT | 2 | ||
| 27 | 67-442 | COIL - evaporator | 1 | |
| 28 | 99-4144 | SCREEN - evaporator | 1 | |
| 29 | 99-1489 | COVER | 1 | |
| 99-7107 | STRIP (neoprene, 25 ft) | A/R | ||
| 55-5550 | STUD - cover (oval head) | 6 | ||
| 55-4697 | WASHER - split | 6 | ||
| 30 | 99-4156 | ANGLE - filter | 1 | |
| 31 | 99-4155 | ANGLE - filter | 1 | |
| 32 | 99-4145 | PARTITION - filter | 1 | |
| 33 | 99-4154 | ANGLE - filter | 1 | |
| 34 | 99-4157 | ANGLE - hinge | 1 | |
| 55-1725 | RIVET - blind | 14 | ||
| 35 | 51-1112 | FASTENER - snap | 2 | |
| 55-1384 | SCREW - fastener | 2 | ||
| 55-406 | FLATWASHER | 2 | ||
| 55-5761 | LOCKWASHER | 2 | ||
| 55-295 | NUT | 2 | ||
| 36 | 99-2280 | EXTRUSION (rubber) | 1 | |
| 37 | 99-4158 | FILTER - air | 2 | |
| 38 | 99-4377 | STRIP (rubber, drain pan) | 2 | |
| 39 | 99-7107 | STRIP (rubber, drain pan) | 1 | |
| 40 | 66-2583 | VALVE - epr | 1 | |
| 99-4146 | PLUG | 1 | ||
| 33-1124 | O-RING - plug | 1 | ||
| 41 | 66-2582 | VALVE - expansion | 1 | |
| 42 | 99-4161 | BRACKET - motor | 4 | |
| 55-1189 | SCREW - bracket | 8 | ||
| 55-1511 | LOCKWASHER | 8 | ||
| 55-2752 | NUT | 8 | ||
| 43 | 104-279 | MOTOR (24VDC) | 2 | |
| 104-280 | MOTOR (12VDC) | 2 | ||
| 44-5145 | BRUSH - set (KATO) | 2 | ||
| 77-1259 | BEARING - KATO | 2 | ||
| 44-9048 | BRUSH (set, MET) | 2 | ||
| 44-9049 | CAP - brush (MET) | 2 | ||
| 77-2023 | BEARING - MET | 2 | ||
| 99-521 | SPACER - motor | 8 | ||
| 99-2944 | WASHER - motor (rubber) | 16 | ||
| 55-1511 | LOCKWASHER | 8 | ||
| 55-2752 | NUT - motor | 8 | ||
| 44 | 99-4162 | PANEL - air block | 1 | |
| 45 | 99-4163 | PANEL (left) | 1 | |
| 55-1510 | SCREW - panel | 4 | ||
| 55-431 | WASHER - panel | 4 | ||
| 46 | 98-1201 | HOSE - drain | A/R | |
| 47 | 55-3964 | TEE - drain hose | 1 |
