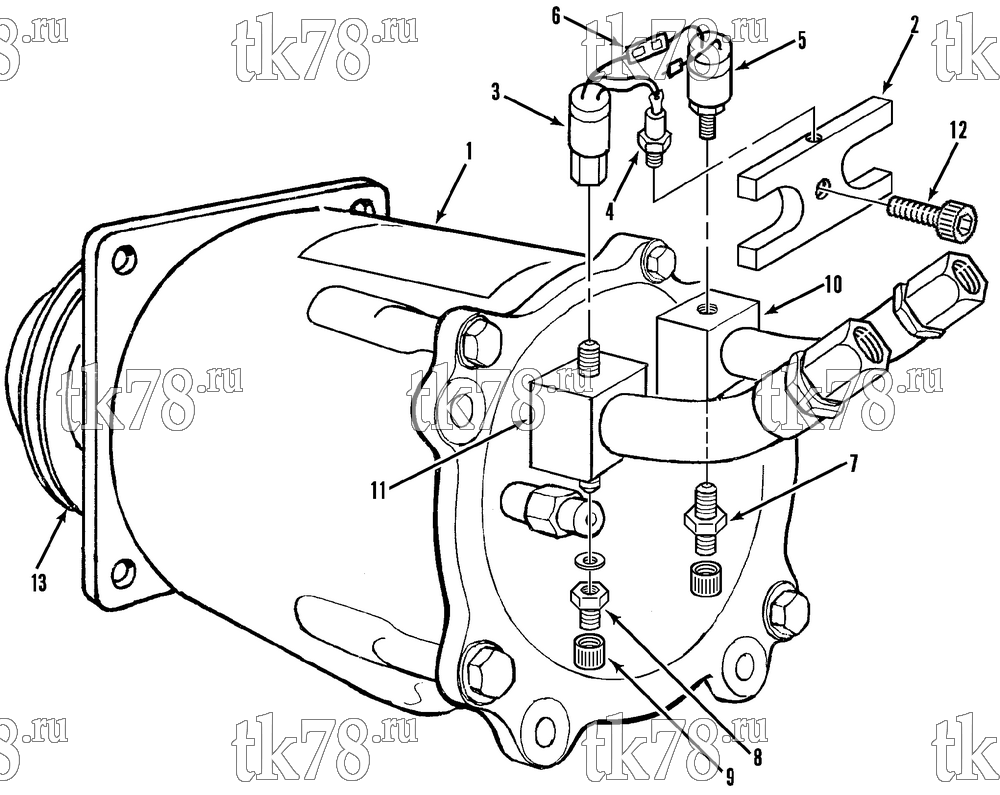

Установкa Thermo King схема COMPRESSOR GROUP (After 2/81) – 99F11
Обновление от: 5/11/00
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 102-230 | COMPRESSOR & CLUTCH (12V, 5.0 dia, A groove pulley) | 1 | |
| 102-244 | COMPRESSOR & CLUTCH (24V, 5.0 dia, A groove pulley) | 1 | ||
| 102-367 | COMPRESSOR & CLUTCH (12V, 5.8 dia, poly V groove pulley) | 1 | ||
| 203-515 | OIL - compressor (solest 120) | A/R | ||
| 2 | 99-7019 | PLATE - clamping | 1 | |
| 3 | 44-3843 | SWITCH - lpco | 1 | |
| 33-768 | GASKET - flare (1/4) | 1 | ||
| 4 | 44-3842 | DIODE - assembly | 1 | |
| 44-3940 | DIODE - only | 1 | ||
| 5 | 44-2907 | SWITCH - hpco | 1 | |
|
10-44-2907 | Выключатель высокого давления | 4 160 ₽ |
|
| 6 | 44-6101 | HARNESS - compressor | 1 | |
| 7 | 66-1911 | VALVE (Schrader) | 1 | |
| 8 | 11-2886 | VALVE (Schrader) | 1 | |
| 55-5672 | CAP - valve | 1 | ||
| 9 | 55-303 | NUT - flare | 1 | |
| 55-470 | BONNET | 1 | ||
| 10 | 66-3782 | ADAPTER - discharge | 1 | |
| 11 | 66-3781 | ADAPTER - suction | 1 | |
| 12 | 55-6960 | SCREW (3/8-24 x 2 in) | 1 | |
| 55-375 | LOCKWASHER (3/8) | 1 | ||
| 55-4559 | SCREW (M10 x 50 mm) | 1 | ||
| 55-5411 | LOCKWASHER (M10) | 1 | ||
| 13 | 77-1341 | PULLEY & BEARING (5.0 dia, A groove pulley) | 1 | |
| 77-1342 | PULLEY & BEARING (5.8 dia, poly V-groove pulley) | 1 | ||
| 77-1343 | CLUTCH - driver assembly | 1 | ||
| 44-5625 | COIL - assembly (12V) | 1 | ||
| 44-5626 | COIL - assembly (24V) | 1 |
