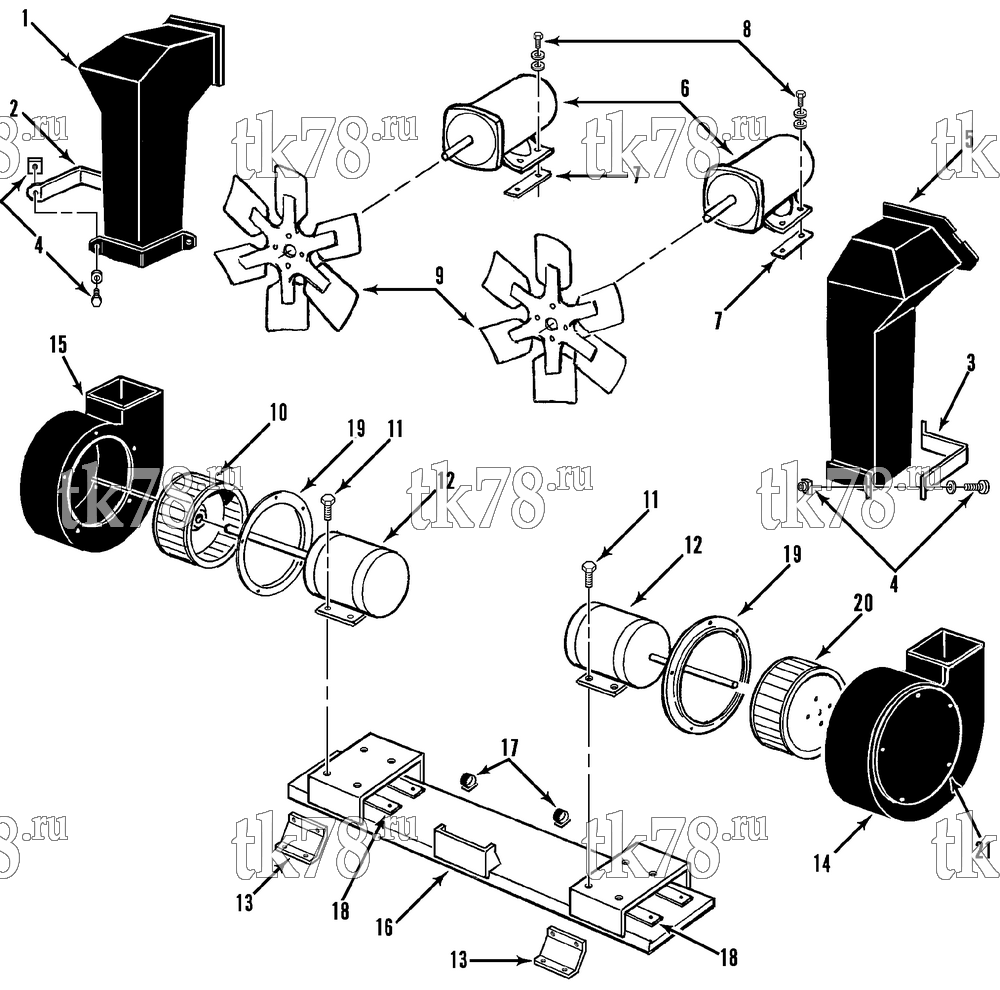

Установкa Thermo King схема MOTORS, BLOWERS & FAN GROUP (T3-M28) – 99E2
Обновление от: 5/22/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-3603 | DUCT (roadside, 102) | 1 | |
| 33-2027 | GASKET - duct outlet (102) | 1 | ||
| 55-4953 | NUT - duct (hexstop) | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 2 | 91-1267 | CLAMP - duct (roadside) | 1 | |
| 3 | 91-1266 | CLAMP - duct (curbside) | 1 | |
| 4 | 55-2977 | SCREW - clamp | 4 | |
| 55-2086 | FLATWASHER | 4 | ||
| 55-4415 | NUT - captive | 4 | ||
| 5 | 98-3602 | DUCT (curbside, 102) | 1 | |
| 33-2028 | GASKET - duct outlet (102) | 1 | ||
| 6 | 104-476 | MOTOR (27VDC, see 85G2) | 2 | |
| 44-7131 | RESISTOR - motor (Ohio) | 1 | ||
| 7 | 99-8335 | NUTSTRIP | 4 | |
| 55-3035 | RIVET - blind | 4 | ||
| 8 | 55-2969 | SCREW - motor | 8 | |
| 55-4727 | FLATWASHER | 8 | ||
| 55-2959 | LOCKWASHER | 8 | ||
| 9 | 78-1115 | FAN - assembly (complete) | 2 | |
| 77-1457 | HUB - condenser fan | 2 | ||
| 55-3089 | SCREW - fan | 2 | ||
| 55-2958 | FLATWASHER | 2 | ||
| 10 | 307-233 | WHEEL - blower (cw, roadside) | 1 | |
| 11 | 55-2969 | SCREW - motor | 8 | |
| 55-2958 | FLATWASHER | 8 | ||
| 55-2959 | LOCKWASHER | 8 | ||
| 12 | 304-514 | MOTOR - evaporator blower | 2 | |
| 77-2001 | BEARING - motor | 2 | ||
| 44-5416 | BRUSH (set of 4) | 1 | ||
| 44-8653 | RESISTOR - motor (Ohio) | 1 | ||
| 13 | 91-2627 | BRACKET - motor | 2 | |
| 55-2957 | SCREW - bracket | 8 | ||
| 55-2086 | FLATWASHER | 8 | ||
| 55-1800 | LOCKWASHER | 8 | ||
| 55-4953 | NUT | 8 | ||
| 14 | 98-7383 | HOUSING - blower (curbside, incl 21) | 1 | |
| 55-2977 | SCREW - housing | 3 | ||
| 55-3472 | NUT - jam | 3 | ||
| 55-4953 | NUT - blower | 6 | ||
| 55-2086 | FLATWASHER | 12 | ||
| 15 | 98-3609 | HOUSING - blower (roadside, incl 21) | 1 | |
| 55-3031 | SCREW - housing | 5 | ||
| 55-3472 | NUT - jam | 3 | ||
| 55-4560 | NUT - blower | 10 | ||
| 55-2001 | FLATWASHER | 10 | ||
| 16 | 98-3887 | MOUNT - motor | 1 | |
| 55-2969 | SCREW - mount to frame | 8 | ||
| 55-5032 | NUT - captive | 8 | ||
| 55-2958 | FLATWASHER | 8 | ||
| 55-2959 | LOCKWASHER | 8 | ||
| 17 | 99-9646 | MOUNT - cable tie (0.375 dia) | 3 | |
| 91-2633 | CLIP - cable tie (1.50 dia) | 1 | ||
| 18 | 91-2626 | NUTSTRIP - motor | 4 | |
| 55-3035 | RIVET - strip | 2 | ||
| 19 | 77-1834 | RING - inlet | 2 | |
| 20 | 307-234 | WHEEL - blower (ccw, curbside) | 1 | |
| 21 | 99-9316 | PLATE - blower housing cover | 2 | |
| 55-3669 | RIVET - plate | 10 |
