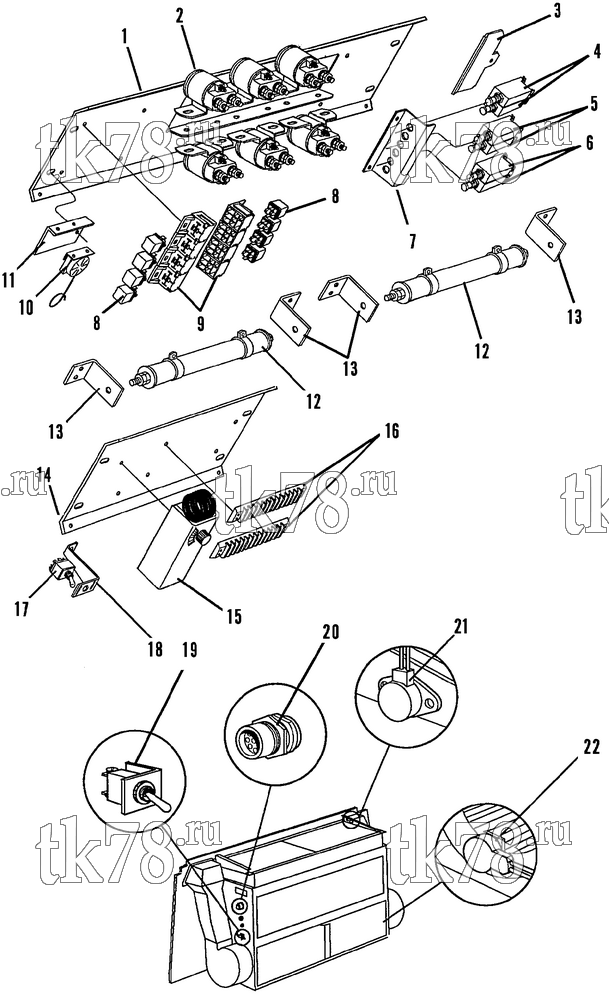

Установкa Thermo King схема CONTROL PANEL – 98G7
Обновление от: 3/13/96
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 309-1613 | PANEL - control (main) | 1 | |
| 55-145 | SCREW (1/4-20 x .750, hh) | 4 | ||
| 55-2958 | FLATWASHER (1/4) | 4 | ||
| 55-366 | LOCKWASHER - spring (1/4) | 4 | ||
| 2 | 304-305 | CONTACTOR (24V) | 6 | |
| 55-101 | SCREW (1/4-20 x 1, hh) | 6 | ||
| 55-2958 | FLATWASHER (1/4) | 12 | ||
| 55-4953 | NUT (1/4-20) | 6 | ||
| 3 | 304-1832 | BUSBAR - main power | 1 | |
| 55-6913 | SCREW (1/4-20 x 1 round hd, brass) | 1 | ||
| 305-698 | LOCKWASHER (1/4, ext tooth, brass) | 2 | ||
| 55-2873 | WASHER (1/4, brass) | 2 | ||
| 55-1801 | NUT (1/4-20, brass) | 2 | ||
| 4 | 304-185 | BREAKER - circuit (50A, CB6, CB5) | 2 | |
| 5 | 304-187 | BREAKER - circuit (35A, CB3 & CB4) | 2 | |
| 6 | 304-186 | BREAKER - circuit (10A, CB2, CB1) | 2 | |
| 7 | 309-1623 | BRACKET - circuit breaker | 1 | |
| 305-1016 | SCREW (#10-32 x .625, hh) | 2 | ||
| 55-2964 | LOCKWASHER | 2 | ||
| 309-1614 | LABEL - circuit breaker | 1 | ||
| 8 | 304-595 | RELAY (24V) | 8 | |
| 9 | 44-5537 | SOCKET - relay | 8 | |
| 305-1016 | SCREW (#10-32 x .625, hh) | 4 | ||
| 55-2964 | LOCKWASHER | 4 | ||
| 309-1615 | LABEL (EFR) | 1 | ||
| 309-1616 | LABEL (LR) | 1 | ||
| 309-1617 | LABEL (BPR) | 1 | ||
| 309-1618 | LABEL (DLR) | 1 | ||
| 309-1619 | LABEL (HR2) | 1 | ||
| 309-1620 | LABEL (HR2) | 1 | ||
| 309-1621 | LABEL (CLR) | 1 | ||
| 309-1622 | LABEL (AHR) | 1 | ||
| 10 | 304-804 | SWITCH - frost | 1 | |
| 305-811 | SCREW (#8-32 x .50, round hd) | 2 | ||
| 305-1136 | LOCKWASHER | 2 | ||
| 305-1323 | NUT (#8-32) | 2 | ||
| 11 | 309-1877 | BRACKET - frost switch mounting | 1 | |
| 12 | 304-647 | RESISTOR | 2 | |
| 305-1016 | SCREW (#10-32 x .625, hh) | 4 | ||
| 305-744 | FLATWASHER | 8 | ||
| 305-1113 | LOCKWASHER | 8 | ||
| 55-2752 | NUT | 8 | ||
| 13 | 309-1789 | BRACKET - resistor mounting | 4 | |
| 55-5657 | SCREW - sheet metal | 8 | ||
| 14 | 309-1790 | PANEL - control | 1 | |
| 55-145 | SCREW (1/4-20 x .750, hh) | 4 | ||
| 55-2958 | FLATWASHER | 4 | ||
| 55-366 | LOCKWASHER | 4 | ||
| 15 | 304-863 | THERMOSTAT | 1 | |
| 55-4222 | SCREW (#6-32 x .50, round hd) | 2 | ||
| 55-1266 | FLATWASHER | 2 | ||
| 305-1112 | LOCKWASHER | 2 | ||
| 303-210 | GROMMET | 1 | ||
| 16 | 304-1864 | BLOCK - terminal | 2 | |
| 305-1023 | SCREW | 4 | ||
| 305-1112 | LOCKWASHER | 4 | ||
| 309-1624 | LABEL - Terminals | 2 | ||
| 309-1625 | LABEL (TB1) | 1 | ||
| 309-1626 | LABEL (TB2) | 1 | ||
| 17 | 304-811 | SWITCH - cycle reheat | 1 | |
| 18 | 309-1628 | BRACKET - cycle reheat switch | 1 | |
| 309-1627 | LABEL - cycle reheat | 1 | ||
| 19 | 304-811 | SWITCH - safety | 1 | |
| 304-438 | INSULATING - safety switch boot | 1 | ||
| 20 | 44-6837 | CONNECTOR - wire harness | 1 | |
| 55-5347 | LOCKWASHER - connector | 1 | ||
| 55-5398 | NUT - panel (connector) | 1 | ||
| 21 | 304-1862 | SWITCH - ambient (AMB) | 1 | |
| 44-6959 | CONNECTOR - tower (3-pin) | 1 | ||
| 44-5839 | TERMINAL - female (14-16 ga) | 2 | ||
| 44-6324 | SEAL - cable (blue, 12-14 ga) | 2 | ||
| 44-7812 | PLUG - cavity (green) | 1 | ||
| 304-817 | SWITCH - ambient temperature | 1 | ||
| 22 | 304-1838 | SWITCH - duct limiter (DLH) | 1 | |
| 44-5838 | CONNECTOR - tower (2-pin) | 1 | ||
| 304-1830 | TERMINAL (female) | 2 | ||
| 303-458 | SEAL - cable | 2 | ||
| 304-1863 | WIRE - harness | 1 |
