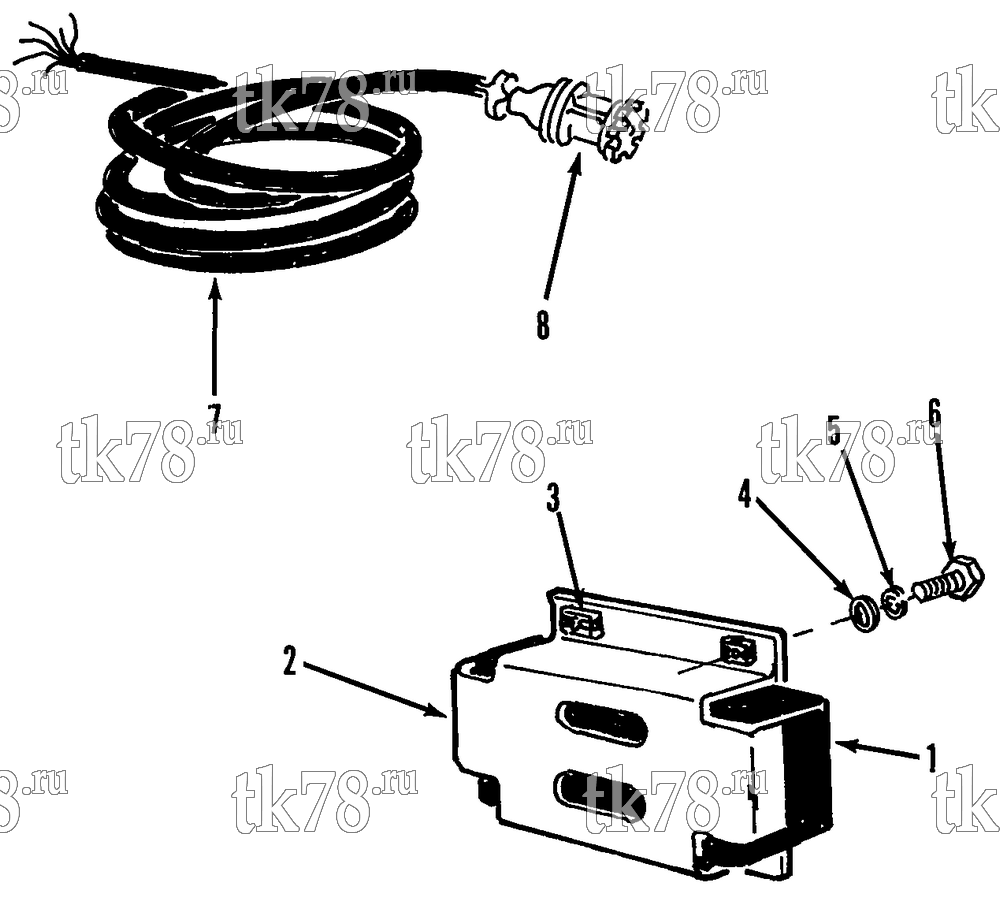

Установкa Thermo King схема POWER CABLES, PLUG, BATTERY – 98D12
Обновление от: 2/4/03
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 203-525 | BATTERY & HARNESS | 1 | |
| 99-7246 | STRIP (neoprene, 1/2 wide, 50 ft) | A/R | ||
| 99-5966 | STRIP (neoprene, 1 wide x 50 ft lg) | A/R | ||
| 2 | 99-8142 | TRAY - battery | 1 | |
| 3 | 55-3059 | NUT - captive (tray) | 4 | |
| 4 | 55-2086 | FLATWASHER | 4 | |
| 5 | 55-1800 | LOCKWASHER | 4 | |
| 6 | 55-1587 | SCREW - tray | 4 | |
| 7 | 45-1050 | CABLE - power (90 ft) | 2 | |
| 8 | 44-4051 | PLUG - power (MIPCO) | 1 | |
| 41-1976 | PLUG - power (Minnekes) | 1 | ||
| 41-2820 | PLUG - power (ESL) | 1 | ||
| 44-9891 | TERMINAL - pin (cable end) | 3 | ||
| 44-6310 | TERMINAL - pin (plug end) | 4 | ||
| 33-1878 | BUSHING - cable | 1 |
