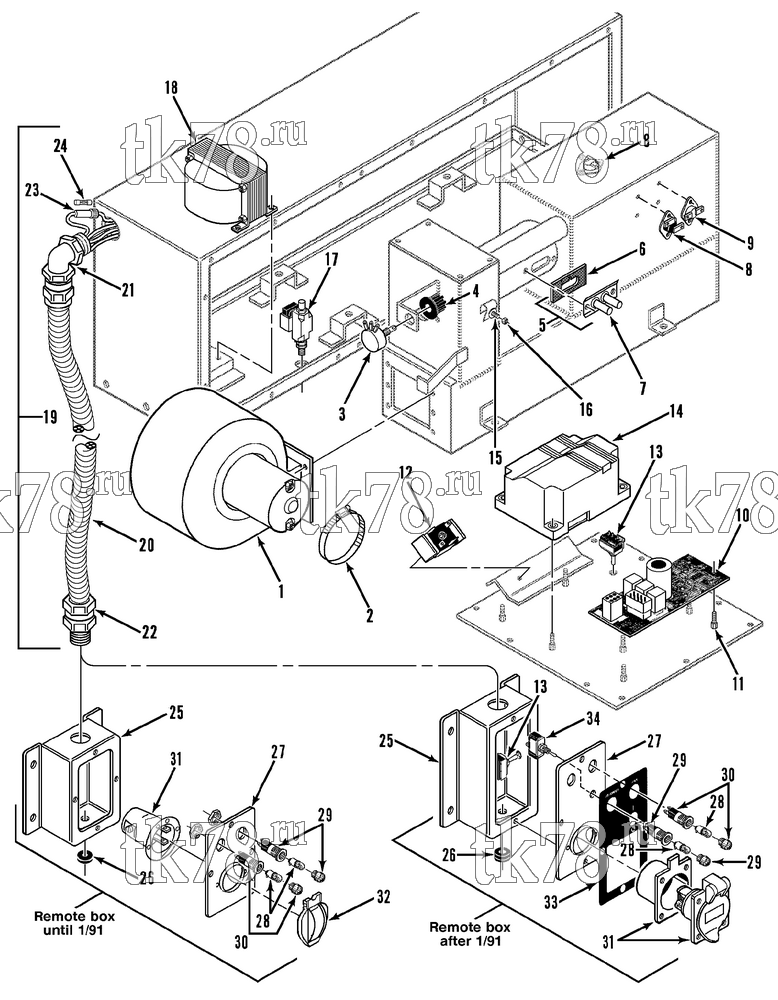

Установкa Thermo King схема ELECTRICAL COMPONENTS (ST37-20) – 97F5
Обновление от: 10/14/08
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 87-222 | BLOWER & MOTOR | 1 | |
| 87-224 | WHEEL - blower | 1 | ||
| 84-419 | MOTOR (12VDC) | 1 | ||
| 84-358 | COVER - terminal | 1 | ||
| 55-4560 | NUT - cover | 2 | ||
| 44-2791 | TERMINAL - ring (blue #10, 14-16 ga) | 1 | ||
| 84-358 | INSULATOR | 1 | ||
| 55-7551 | SCREW | 6 | ||
| 2 | 55-6225 | CLAMP | 1 | |
| 3 | 80-101 | KIT - thermostat (until 1/91) | 1 | |
| 84-417 | POTENTIOMETER | 1 | ||
| 4 | 84-359 | KNOB | 1 | |
| 5 | 80-102 | KIT - electrode & gasket | 1 | |
| 6 | 83-256 | GASKET | 1 | |
| 7 | 80-102 | KIT - electrode & gasket | 1 | |
| 80-102 | TUBING - heat shrink | 2 | ||
| 55-7551 | SCREW - electrode | 2 | ||
| 8 | 84-420 | THERMOSTAT - cool down (140 F, mounted on the top of the heat exchanger on some early units) | 1 | |
| 55-7551 | SCREW - thermostat | 2 | ||
| 9 | 44-7642 | THERMOSTAT - overheat (280 F) | 1 | |
| 55-7551 | SCREW - thermostat | 2 | ||
| 10 | 84-478 | BOARD - printed circuit | 1 | |
| 84-364 | CONNECTOR (15-pin, male) | 1 | ||
| 84-365 | PIN (female) | A/R | ||
| 84-366 | CONNECTOR (6-pin, female) | 1 | ||
| 84-360 | PIN (male) | A/R | ||
| 84-368 | CONNECTOR (5-pin, male) | 1 | ||
| 84-433 | HARNESS - main | 1 | ||
| 84-432 | CONNECTOR (15-pin) | 1 | ||
| 84-431 | CONNECTOR (8-pin) | 1 | ||
| 84-376 | FUSE - assembly | 1 | ||
| 11 | 85-204 | SPACER - pc board | 4 | |
| 55-1516 | NUT | 4 | ||
| 12 | 41-363 | RECTIFIER - bridge | 1 | |
| 84-428 | HEATSINK | 1 | ||
| 55-686 | NUT | 1 | ||
| 13 | 44-5861 | SWITCH (optional) | 1 | |
| 44-739 | BOOT - switch | 1 | ||
| 14 | 80-106 | BOX - igniter (until 8/92) | 1 | |
| 80-106 | BOX - igniter (after 8/92) | 1 | ||
| 55-1516 | NUT | 2 | ||
| 84-434 | HARNESS - high voltage (until 8/92) | 1 | ||
| 84-436 | HARNESS - high voltage (after 8/92) | 1 | ||
| 84-430 | PIN - square | A/R | ||
| 15 | 55-3404 | SCREW - ground | 1 | |
| 16 | 55-686 | NUT | 1 | |
| 17 | 81-356 | VALVE - gas | 1 | |
| 81-317 | FITTING - bulkhead (replaces 81-292 & 55-5023) | 1 | ||
| 55-2326 | NUT | 1 | ||
| 18 | 84-349 | TRANSFORMER | 1 | |
| 84-360 | PIN (male) | 2 | ||
| 84-361 | CONNECTOR (5-pin, female) | 1 | ||
| 55-4560 | NUT | 4 | ||
| 19 | 84-424 | HARNESS - remote box | 1 | |
| 20 | 84-425 | CONDUIT | 1 | |
| 21 | 89-219 | CONNECTOR - conduit (elbow) | 1 | |
| 22 | 89-223 | CONNECTOR - conduit | 1 | |
| 23 | 84-376 | FUSE - assembly | 1 | |
| 44-5767 | HOLDER - fuse | 1 | ||
| 24 | 44-3499 | FUSE (15 amp, 32V) | 1 | |
| 25 | 80-104 | KIT - receptacle box (until 1/91) | 1 | |
| 89-220 | BOX (after 1/91) | 1 | ||
| 26 | 83-258 | GROMMET | 1 | |
| 27 | 89-222 | PLATE (until 1/91) | 1 | |
| 91-3586 | PLATE (after 1/91) | 1 | ||
| 55-5636 | SCREW - plate | 4 | ||
| 28 | 44-984 | BULB | 2 | |
| 29 | 44-1093 | LENS & SOCKET (amber) | 1 | |
| 44-6069 | LENS (amber) | 1 | ||
| 30 | 44-1092 | LENS & SOCKET (green) | 1 | |
| 44-6070 | LENS (green) | 1 | ||
| 31 | 44-9360 | RECEPTACLE (after 1/91) | 1 | |
| 80-104 | KIT - receptacle (for units built before 1/91, replaces 84-362, 84-363, 89-231 & 89-221) | 1 | ||
| 91-3586 | PLATE | 1 | ||
| 44-9360 | RECEPTACLE | 1 | ||
| 91-3587 | NAMEPLATE | 1 | ||
| 89-220 | BOX | 1 | ||
| 55-2988 | RIVET - pop | 2 | ||
| 55-3013 | WASHER | 2 | ||
| 55-2988 | RIVET - pop | 2 | ||
| 32 | NSS | RECEPTACLE - cover (until 1/91) | 1 | |
| 33 | 91-3998 | NAMEPLATE (after 1/91) | 1 | |
| 34 | 44-5861 | SWITCH | 1 | |
| 44-739 | BOOT - switch | 1 |
