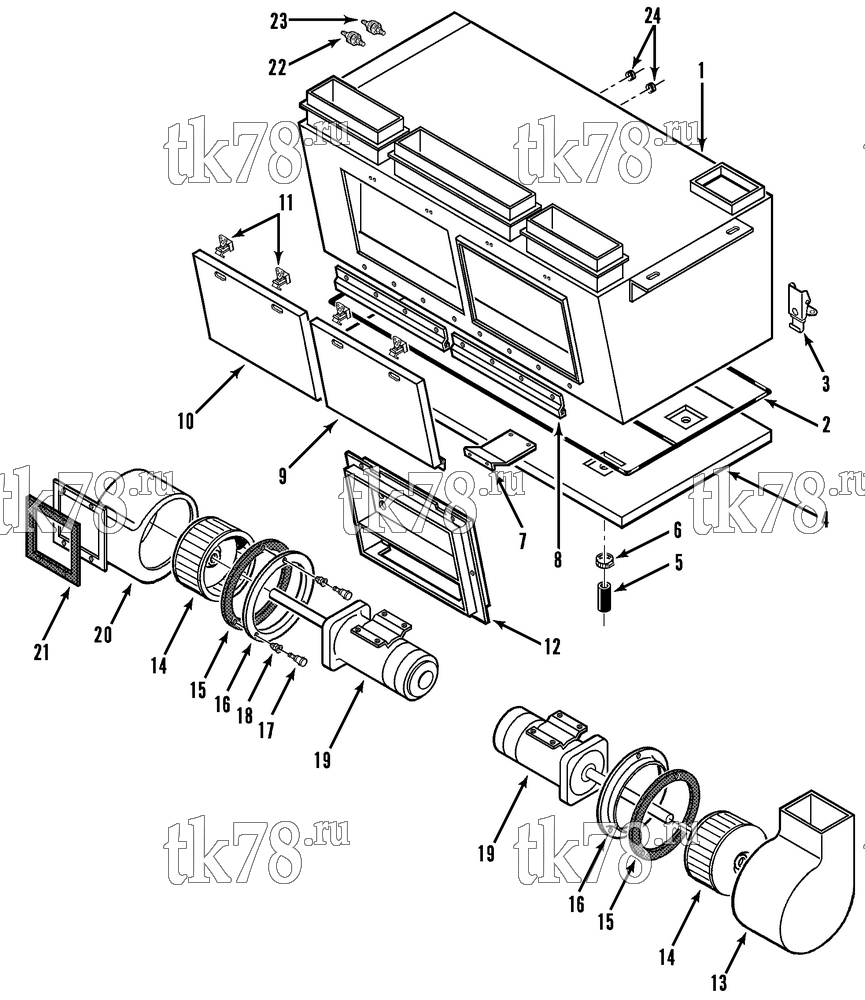

Установкa Thermo King схема FRAME, MOTOR & BLOWER GROUP (HEATER) – 97C3
Обновление от: 2/22/96
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-3888 | FRAME - heater | 1 | |
| 2 | 303-177 | GASKET - door | 1 | |
| 3 | 309-277 | LATCH - door | 4 | |
| 55-3101 | RIVET - latch | 16 | ||
| 4 | 309-383 | DOOR - access | 1 | |
| 5 | 91-2642 | BOOT - heater drain | 4 | |
| 6 | 55-6854 | CLAMP - boot | 4 | |
| 7 | 91-2639 | BRACKET - stabilizer | 1 | |
| 55-1587 | SCREW - bracket | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-4953 | NUT | 2 | ||
| 8 | 91-2643 | BRACKET - access door | 2 | |
| 55-3018 | SCREW - bracket | 8 | ||
|
20-55-3018 | Болт | 540 ₽ |
|
| 55-2086 | FLATWASHER | 8 | ||
| 55-1800 | LOCKWASHER | 8 | ||
| 9 | 98-3891 | COVER - control box | 1 | |
| 55-3027 | SCREW - cover (10-32 x 5/8) | 2 | ||
| 55-3000 | SCREW - cover (10-32 x 1) | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 55-4560 | NUT | 4 | ||
| 10 | 98-3892 | COVER - filter access | 1 | |
| 55-3027 | SCREW - cover | 4 | ||
| 55-4560 | NUT | 4 | ||
| 11 | 309-1910 | LATCH - cover | 4 | |
| 55-2647 | RIVET - latch | 12 | ||
| 12 | 98-3893 | BOX - control (see 97C5) | 1 | |
| 13 | 98-3890 | HOUSING - blower | 1 | |
| 55-1587 | SCREW - housing | 4 | ||
| 55-2086 | FLATWASHER | 6 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-4953 | NUT | 2 | ||
| 14 | 307-244 | WHEEL - blower | 2 | |
| 15 | 33-2124 | GASKET - inlet ring | 2 | |
| 16 | 77-1996 | RING - inlet | 2 | |
| 17 | 91-2640 | PLUNGER - latch (inlet ring) | 6 | |
| 18 | 55-7157 | GROMMET - plunger | 6 | |
| 19 | 304-514 | MOTOR - heater | 2 | |
| 44-5416 | BRUSH (set of 4) | 1 | ||
| 77-2001 | BEARING | 2 | ||
| 55-2969 | SCREW - motor | 8 | ||
| 55-2958 | FLATWASHER | 8 | ||
| 55-3238 | LOCKWASHER | 4 | ||
| 55-4954 | NUT | 8 | ||
| 20 | 98-3889 | HOUSING - blower | 1 | |
| 55-1587 | SCREW - housing | 6 | ||
| 55-2086 | FLATWASHER | 8 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 55-4953 | NUT | 2 | ||
| 21 | 33-2126 | GASKET - blower housing | 1 | |
| 22 | 55-3167 | STUD - terminal (negative) | 1 | |
| 55-3066 | LOCKWASHER (internal tooth) | 2 | ||
| 55-671 | NUT | 4 | ||
| 91-2647 | NAMEPLATE - negative | 1 | ||
| 23 | 305-533 | STUD - positive | 1 | |
| 91-2646 | NAMEPLATE - positive | 1 | ||
| 24 | 33-452 | GROMMET (7/8 id, 1/8 groove) | 2 | |
| 33-415 | GROMMET (5/8 id, 1/16 groove) | 2 | ||
| 33-612 | GROMMET (7/8 id, 1/16 groove) | 1 |
