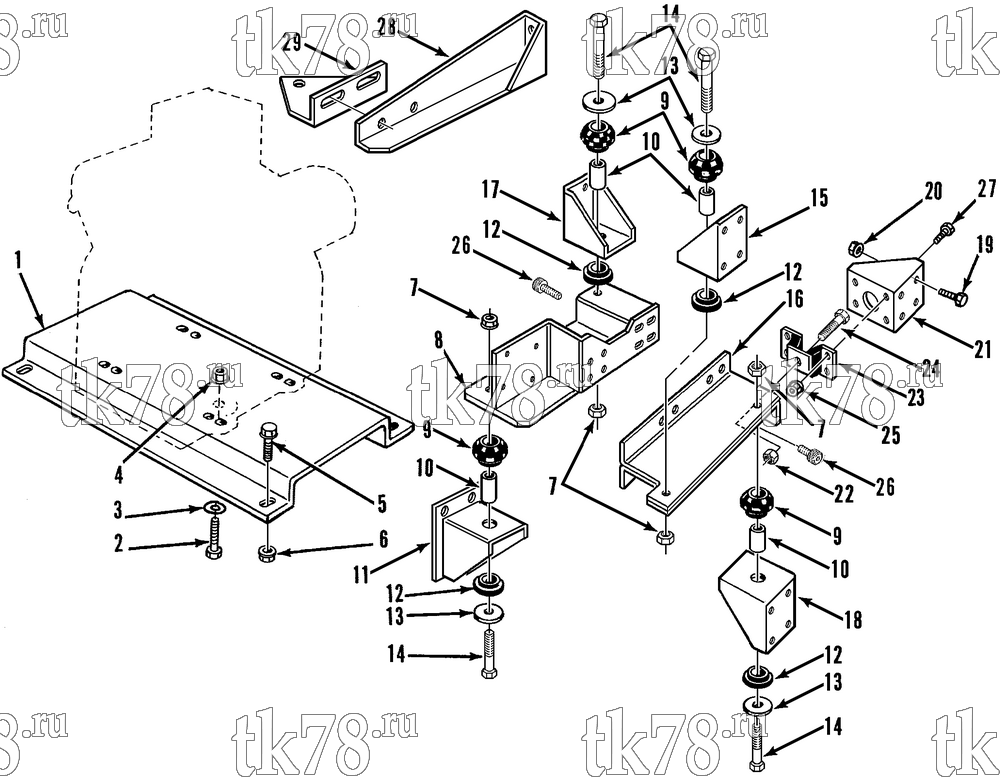

Установкa Thermo King схема ENGINE & COMPRESSOR MOUNTING – 96G8
Обновление от: 2/20/98
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 91-8549 | BRACKET - compressor | 1 | |
| 2 | 55-2683 | SCREW - compressor | 4 | |
| 3 | 55-4931 | WASHER - special | 4 | |
| 55-8659 | FLATWASHER | 4 | ||
| 4 | 55-8658 | NUT | 4 | |
| 55-5751 | WASHER - CSW | 4 | ||
| 5 | 55-4789 | SCREW - bracket | 4 | |
| 55-399 | WASHER - special | 4 | ||
| 55-5751 | FLATWASHER | 4 | ||
| 6 | 55-5050 | NUT | 4 | |
| 7 | 55-7724 | NUT | 4 | |
| 8 | 91-5644 | BRACKET - engine mount (oil filter side) | 1 | |
| 9 | 91-5827 | MOUNT - vibration | 4 | |
| 10 | 99-7529 | SPACER | 4 | |
| 11 | 91-2552 | BRACKET - engine mount (inboard left) | 1 | |
| 12 | 99-4581 | MOUNT - vibration | 4 | |
| 13 | 55-4299 | WASHER (2.5 od) | 2 | |
| 55-2016 | WASHER (2.0 od) | 2 | ||
| 14 | 55-4551 | SCREW - engine | 4 | |
| 15 | 91-2551 | BRACKET - engine mount (outboard left) | 1 | |
| 16 | 91-2556 | BRACKET - engine mount (starter side) | 1 | |
| 17 | 91-2554 | BRACKET - engine mount (inboard right) | 1 | |
| 18 | 91-2553 | BRACKET - engine mount (outboard right) | 1 | |
| 19 | 55-2969 | SCREW - engine bracket (1.0 in lg) | 22 | |
| 55-3490 | SCREW - engine bracket (1-1/4 in lg) | 2 | ||
| 55-1321 | WASHER - special (engine bracket) | 16 | ||
| 55-2958 | FLATWASHER | 20 | ||
| 91-4385 | NUTSTRIP - bracket | 2 | ||
| 20 | 55-7792 | NUT | 20 | |
| 21 | 91-4300 | BRACKET - snubber | 1 | |
| 91-1671 | SHIM | A/R | ||
| 22 | 55-5050 | NUT - mount | 1 | |
| 23 | 91-1673 | MOUNT - vibration | 1 | |
| 55-2977 | SCREW - mount | 4 | ||
| 55-2086 | FLATWASHER | 8 | ||
| 24 | 55-5704 | SCREW - snubber | 1 | |
| 25 | 55-4118 | NUT | 4 | |
| 26 | 55-6216 | SCREW - bracket | 16 | |
| 55-7122 | WASHER - belleville | 16 | ||
| 203-400 | SEALER - thread | A/R | ||
| 27 | 55-101 | SCREW - snubber | 4 | |
| 55-411 | FLATWASHER | 8 | ||
| 28 | 91-5648 | BRACKET - compressor brace | 1 | |
| 29 | 91-5647 | BRACKET - compressor | 1 | |
| 55-3095 | SCREW (1/4-20 x 2.0) | 1 | ||
| 55-1587 | SCREW (1/4-20 x 0.75) | 2 | ||
| 55-2086 | FLATWASHER | 3 | ||
| 55-7789 | FLATWASHER - GS | 3 | ||
| 55-7790 | NUT | 3 |
