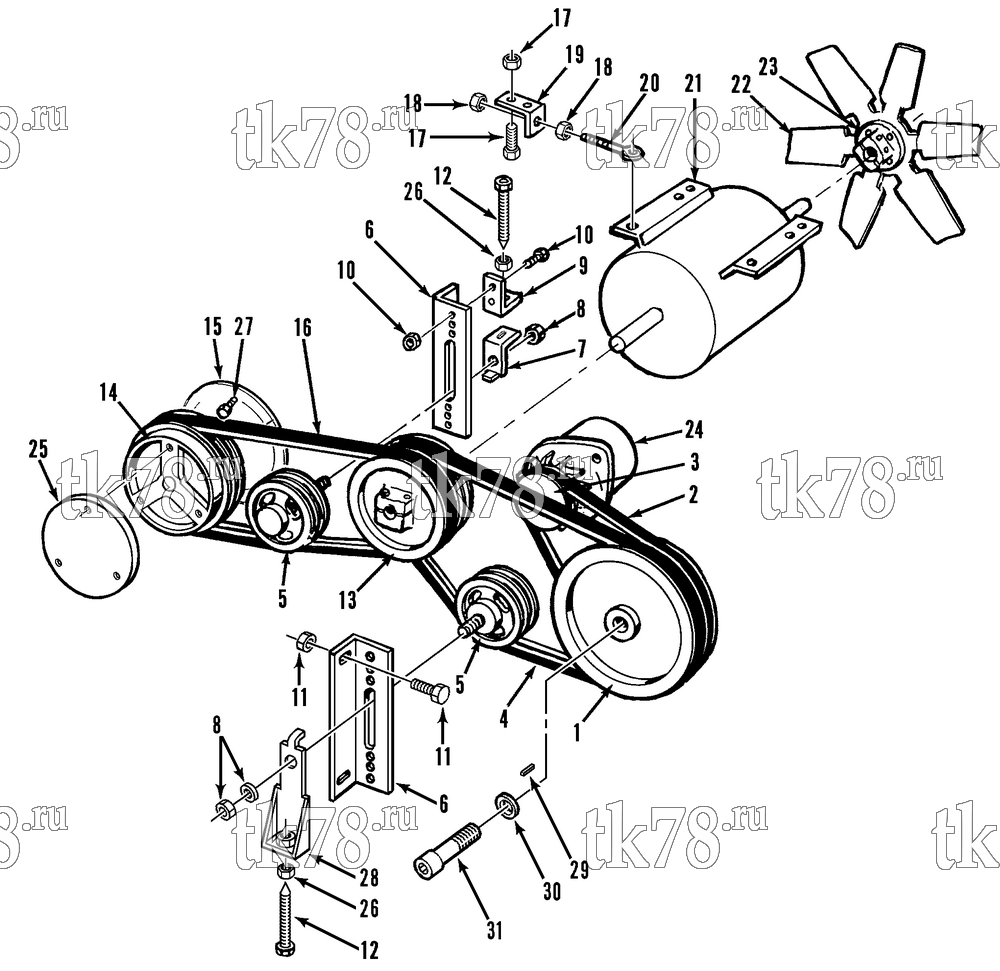

Установкa Thermo King схема BELTS, PULLEYS & FAN GROUP – 96D13
Обновление от: 3/2/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 77-1988 | PULLEY - compressor | 1 | |
| 55-9024 | KEY - pulley | 1 | ||
|
10-55-9024 | Шпонка коленвала, X418/426/430 | 590 ₽ |
|
| 55-4316 | SCREW - pulley | 1 | ||
|
10-55-4316 | Болт коленвала компрессора X426/430 | 470 ₽ |
|
| 77-2498 | SPACER | 1 | ||
|
10-77-2498 | Шайба муфты сцепления | 990 ₽ |
|
| 55-2363 | LOCKWASHER | 1 | ||
| 2 | 78-837 | BELT - alternator | 1 | |
| 10-78-837 | Ремень генератора, NWD | 2 190 ₽ |
|
|
| 3 | 77-1482 | PULLEY - alternator | 1 | |
| 77-2220 | PULLEY - alternator (95 amp) | 1 | ||
| 77-2375 | PULLEY - alternator (90 amp) | 1 | ||
| 4 | 78-570 | BELT - compressor | 1 | |
| 10-78-570 | Ремень электромотор - компрессор, URD/URD-III | 6 480 ₽ |
|
|
| 5 | 77-1475 | PULLEY - idler (see 60F11) | 2 | |
| 6 | 99-7392 | BRACKET - idler pulley | 2 | |
| 99-7391 | SPACER - idler bracket | 4 | ||
| 7 | 99-7394 | BRACKET - tension | 1 | |
| 8 | 55-314 | NUT - idler | 2 | |
| 55-2159 | LOCKWASHER | 2 | ||
| 55-1052 | WASHER - special | 2 | ||
| 9 | 99-7393 | BRACKET - tension | 2 | |
| 10 | 55-2963 | SCREW - bracket | 4 | |
| 55-7791 | FLATWASHER | 4 | ||
| 55-7792 | NUT | 4 | ||
| 11 | 55-4553 | SCREW - bracket | 4 | |
| 55-8658 | FLATWASHER | 4 | ||
| 55-8659 | NUT | 4 | ||
| 12 | 55-7764 | SCREW - tension adjustment | 2 | |
| 55-4931 | WASHER - special | 4 | ||
| 13 | 77-1989 | PULLEY - motor | 1 | |
| 55-2962 | SCREW - pulley | 2 | ||
| 55-2959 | LOCKWASHER | 2 | ||
| 14 | N/A | CLUTCH (see note) | 1 | |
| 107-273 | CLUTCH (after 3/15/95, see 145F4) | 1 | ||
| 15 | 11-7039 | FLYWHEEL (see 90D8) | 1 | |
| 16 | 78-342 | BELT - engine | 1 | |
| 10-78-342 | Ремень двигатель - электромотор, URD/URD-III | 16 820 ₽ |
|
|
| 17 | 55-2963 | SCREW - bracket | 2 | |
| 55-2114 | NUT | 2 | ||
| 18 | 55-287 | NUT - eyebolt | 2 | |
| 19 | 99-9127 | BRACKET - tension | 1 | |
| 91-2571 | BRACKET - tension (90 amp alternator) | 1 | ||
| 20 | 99-541 | BOLT - eye | 1 | |
| 91-2571 | BRACKET - tension (90 amp alternator) | 1 | ||
| 21 | 104-492 | MOTOR (208/230/380/460V, see 96D14) | 1 | |
| 22 | 78-567 | FAN - condenser | 1 | |
| 55-2963 | SCREW - fan | 4 | ||
| 55-2959 | LOCKWASHER | 4 | ||
| 23 | 77-1474 | HUB - fan | 1 | |
| 55-2962 | SCREW - hub to shaft | 2 | ||
| 55-2959 | LOCKWASHER | 2 | ||
| 24 | 41-2196 | ALTERNATOR (65 amp, model 8MR, see 144C2) | 1 | |
|
10-41-2196 | Генератор 65A, KD/MD/RD/TD-II / URD / SB-II/III | 22 650 ₽ |
|
| 44-6981 | ALTERNATOR (72 amp, see 74A12) | 1 | ||
| 44-9716 | ALTERNATOR (90 amp, see 120G9) | 1 | ||
| 10-45-1706 | Генератор 90A, URD | 43 600 ₽ |
|
|
| 45-1706 | ALTERNATOR (90 amp, see 133A12) | 1 | ||
| 10-45-1706 | Генератор 90A, URD | 43 600 ₽ |
|
|
| 25 | 91-4298 | SHIELD - clutch (before 3/16/95) | 1 | |
| 91-7423 | SHIELD - clutch (after 3/15/95) | 1 | ||
| 55-1587 | SCREW - shield | 3 | ||
| 203-400 | SEALER - thread | A/R | ||
| 55-2086 | FLATWASHER | 3 | ||
| 91-4299 | SPACER | 3 | ||
| 26 | 55-3300 | NUT - tension screw | 2 | |
| 27 | 55-5022 | SCREW - clutch | 6 | |
| 203-400 | SEALER - thread | A/R | ||
| 55-4625 | FLATWASHER | 6 | ||
| 28 | 91-1674 | BRACKET - tension | 1 | |
| 29 | 55-2024 | KEY | 1 | |
| 30 | 77-1394 | WASHER - compressor | 1 | |
| 31 | 55-4316 | SCREW - pulley | 1 | |
|
|
10-55-4316 | Болт коленвала компрессора X426/430 | 470 ₽ |
|
| 55-2363 | LOCKWASHER | 1 |
