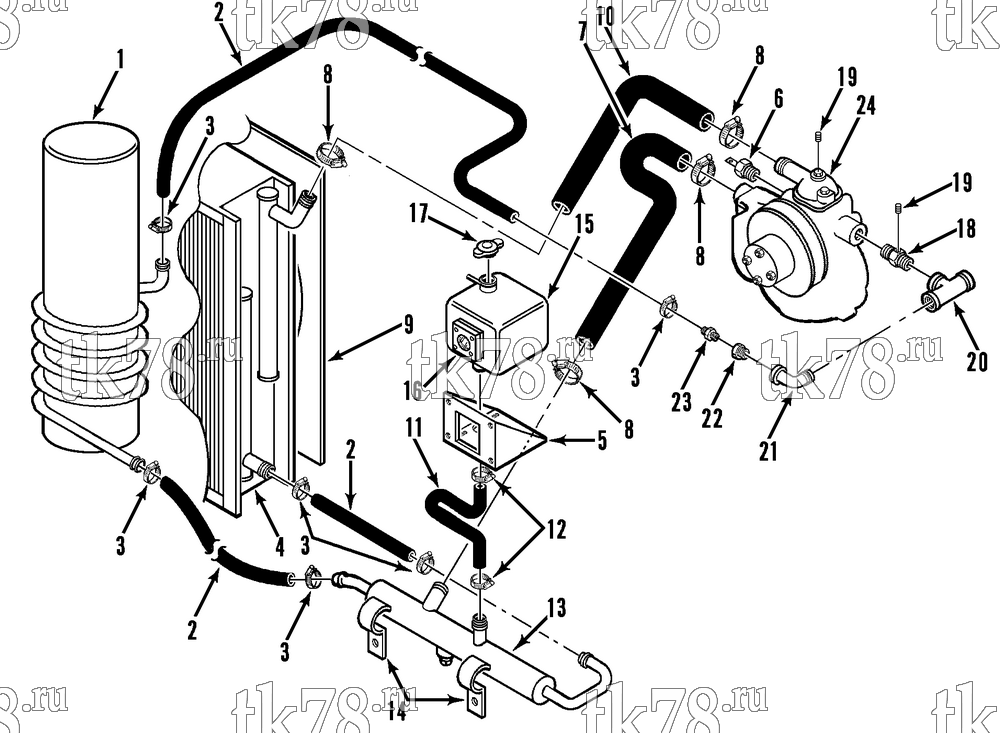

Установкa Thermo King схема ENGINE COOLING SYSTEM – 96D12
Обновление от: 2/22/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-977 | TANK - accumulator | 1 | |
| 2 | 98-796 | HOSE (5/8 id x 25 ft) | A/R | |
| 3 | 55-6726 | CLAMP - hose | 6 | |
| 4 | 67-976 | COIL - condenser/radiator | 1 | |
| 55-4974 | NUT - captive | 10 | ||
| 55-2977 | SCREW - coil | 6 | ||
| 55-2086 | FLATWASHER | 6 | ||
| 55-7789 | FLATWASHER - GS | 6 | ||
| 55-7790 | NUT | 6 | ||
| 5 | 91-2593 | BRACKET - expansion tank | 1 | |
| 55-3018 | SCREW - bracket | 8 | ||
|
20-55-3018 | Болт | 540 ₽ |
|
| 55-2086 | FLATWASHER | 8 | ||
| 55-1800 | LOCKWASHER | 8 | ||
| 6 | 44-3018 | SWITCH - water temperature | 1 | |
|
10-44-3018 | Датчик температуры двигателя, Yanmar / Isuzu | 5 830 ₽ |
|
| PP-44-3018 | Датчик температуры двигателя, Yanmar / Isuzu | 2 200 ₽ |
|
|
| 7 | 11-7274 | HOSE - engine to manifold | 1 | |
| 8 | 55-2818 | CLAMP - hose | 4 | |
| 9 | 98-2551 | ORIFICE - condenser (see 96G13) | 1 | |
| 10 | 11-7754 | HOSE - engine to radiator | 1 | |
| 11 | 11-7278 | HOSE - manifold to expansion tank | 1 | |
| 12 | 55-6726 | CLAMP - hose | 2 | |
| 13 | 11-7277 | MANIFOLD - coolant | 1 | |
| 55-3364 | PLUG - pipe | 1 | ||
| 203-385 | SEALER - thread | A/R | ||
| 14 | 91-2570 | CLAMP - manifold | 2 | |
| 55-1587 | SCREW - clamp | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-7789 | FLATWASHER - GS | 2 | ||
| 55-7790 | NUT | 2 | ||
| 15 | 12-489 | TANK - expansion | 1 | |
| 203-385 | SEALER - thread | A/R | ||
| 55-3364 | PLUG - pipe | 1 | ||
| 16 | 11-4728 | BEZEL - gauge | 1 | |
| 11-4729 | LENS | 1 | ||
| 11-4730 | DISC - expansion tank (reflective) | 1 | ||
| 33-1121 | GASKET - gauge | 1 | ||
| 55-5972 | SCREW - gauge | 4 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 17 | 11-9242 | CAP - tank (7 lb pressure) | 1 | |
|
10-11-9242 | Крышка радиатора 10 LBS | 2 370 ₽ |
|
| 18 | 55-8904 | FITTING - drain plug | 1 | |
| 19 | 55-2921 | PLUG - drain | 2 | |
| 20 | 55-6831 | TEE (female) | 1 | |
| 203-385 | SEALER - thread | A/R | ||
| 21 | 55-6557 | ELBOW | 1 | |
| 22 | 55-5872 | BUSHING | 1 | |
| 23 | 55-4180 | ADAPTER - hose | 1 | |
| 24 | 11-8805 | COVER - thermostat (see 132C10) | 1 |
