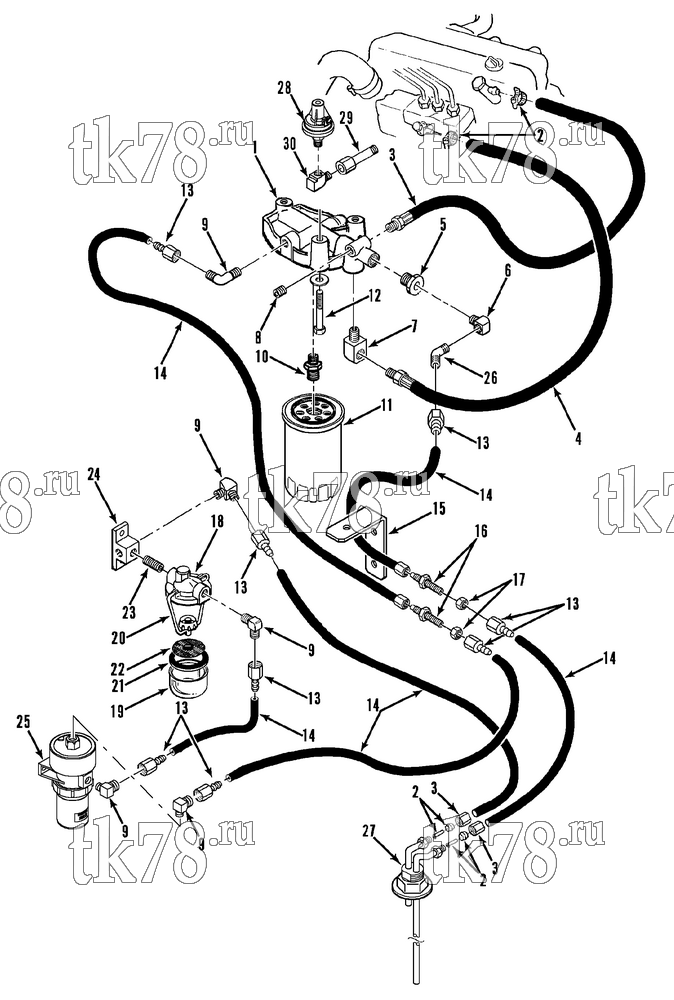

Установкa Thermo King схема FUEL FILTERS, HOSES & PUMP – 96D11
Обновление от: 4/26/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 11-6529 | BRACKET - filter | 1 | |
| 203-393 | SEALER - thread | A/R | ||
| 2 | 55-2796 | CLAMP - hose | 2 | |
| 3 | 66-6856 | HOSE - fuel return | 1 | |
| 4 | 11-8034 | HOSE - fuel inlet | 1 | |
| 5 | 55-5602 | BUSHING | 1 | |
| 6 | 55-460 | ELBOW | 1 | |
| 7 | 11-7753 | ELBOW - filter | 1 | |
| 8 | 55-433 | PLUG - pipe | 1 | |
| 9 | 55-308 | ELBOW | 5 | |
| 10 | 55-3168 | ADAPTER - fuel filter | 1 | |
| 11 | 11-9341 | FILTER - fuel | 1 | |
|
11-9341 OEM | Фильтр топливный EMI 2000, MD/RD/KD/T-Series | 2 680 ₽ |
|
|
US-11-9341 | Фильтр топливный, MD/RD/KD/T-Series | 1 840 ₽ |
|
|
10-11-9341 | Фильтр топливный, MD/RD/KD/T-Series | 1 090 ₽ |
|
| 12 | 55-3565 | SCREW - filter | 3 | |
| 55-2958 | FLATWASHER | 3 | ||
| 55-2959 | LOCKWASHER | 3 | ||
| 55-2114 | NUT | 3 | ||
| 13 | 55-2564 | FITTING - swivel | 10 | |
| 14 | 11-7231 | HOSE - fuel (1/4 x 35 ft) | A/R | |
| 15 | 99-7397 | BRACKET - hose support | 2 | |
| 55-1587 | SCREW - bracket | 2 | ||
| 55-7789 | FLATWASHER - GS | 4 | ||
| 55-7790 | FLATWASHER - szn | 4 | ||
| 55-4953 | NUT | 2 | ||
| 55-549 | CLAMP - hose | 6 | ||
| 55-2991 | SCREW - clamp | 3 | ||
| 55-2001 | FLATWASHER | 6 | ||
| 55-4560 | NUT | 3 | ||
| 16 | 66-1172 | FITTING - bulkhead | 2 | |
| 17 | 55-2253 | NUT - bulkhead fitting | 2 | |
| 55-2200 | LOCKWASHER | 2 | ||
| 18 | 11-8903 | PREFILTER | 1 | |
| 55-459 | COUPLING - filter head | 1 | ||
| 11-4956 | HEAD - filter | 1 | ||
| 19 | 11-7915 | BOWL | 1 | |
| 20 | 11-4957 | BAIL - filter | 1 | |
| 11-4958 | NUT - bail | 1 | ||
| 21 | 33-2464 | GASKET | 1 | |
| 22 | 11-4880 | ELEMENT - filter | 1 | |
| 23 | 55-4512 | NIPPLE | 1 | |
| 24 | 55-4496 | FLANGE | 1 | |
| 25 | 41-7059 | PUMP - fuel (12V) | 1 | |
|
30-66840-00 OEM | Топливный насос подкачки | 22 450 ₽ |
|
|
US-41-7059 | Топливный насос подкачки | 19 340 ₽ |
|
| P-30-01108-12 | Топливный насос подкачки, HP | 8 390 ₽ |
|
|
|
10-41-7059-HP | Топливный насос подкачки, HP | 7 920 ₽ |
|
| 10-376 | KIT - filter (diesel) | 1 | ||
| 10-378 | KIT - bowl & gasket | 1 | ||
| 33-4256 | GASKET - bowl to body | 1 | ||
| 10-273 | KIT - filter (for 41-2640 fuel pump) | 1 | ||
| 33-1676 | GASKET - fuel pump (for 41-2638 fuel pump) | 1 | ||
| 26 | 55-3358 | ELBOW (45 deg) | 1 | |
| 33-4402 | GASKET - fuel pickup (rubber) | 1 | ||
| 28 | 41-6865 | SWITCH - oil pressure | 1 | |
|
10-41-6865 | Сенсор давления масла, Yanmar, кроме 370 / 376 | 9 310 ₽ |
|
|
PP-41-6865 | Сенсор давления масла, Yanmar, кроме 370 / 376 | 2 720 ₽ |
|
| 203-393 | SEALER - thread | A/R | ||
| 29 | 11-7473 | EXTENSION - oil switch | 1 | |
| 30 | 55-460 | ELBOW | 1 |
