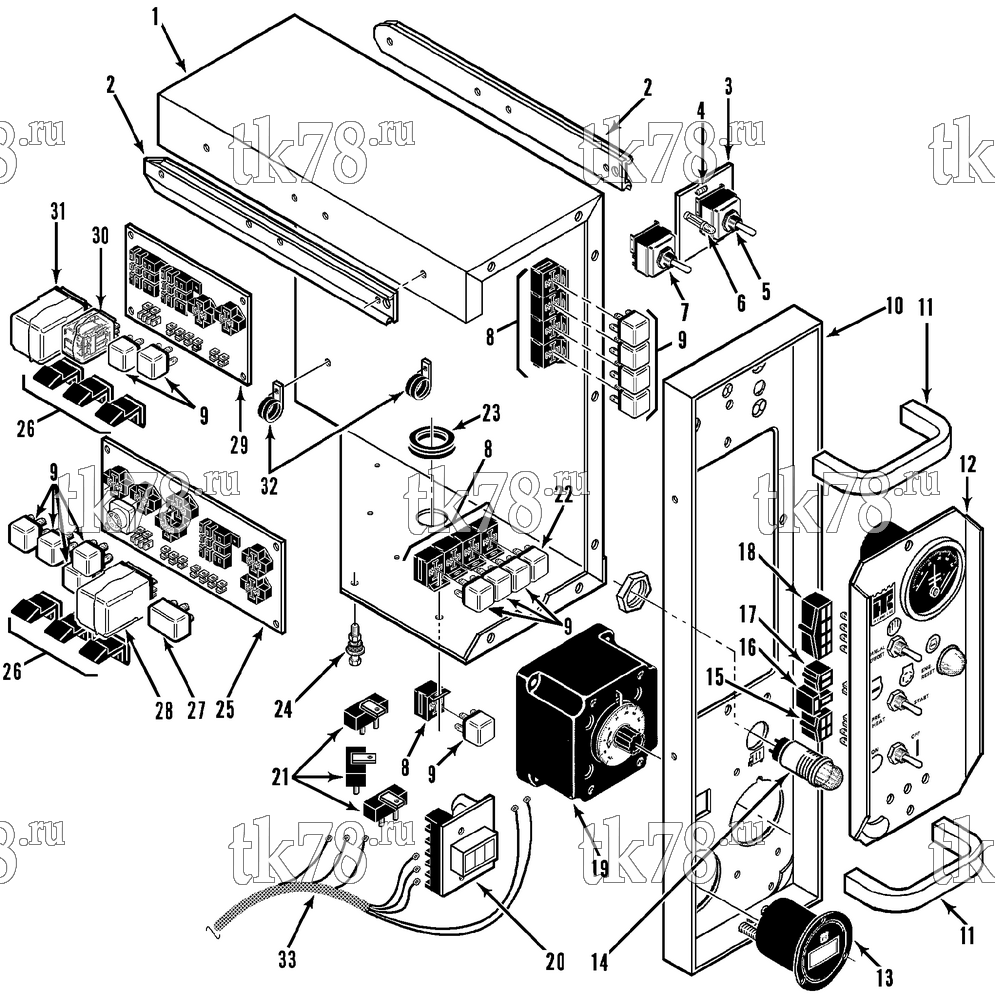

Установкa Thermo King схема CONTROL BOX SLIDE ASSEMBLY (TG IV) – 96D1
Обновление от: 5/30/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 3 | 44-8464 | BOARD - Cycle Sentry switch | 1 | |
| 4 | 44-7272 | RESISTOR - pc board (1000 ohm) | 1 | |
| 5 | 44-8866 | SWITCH - Cycle Sentry | 1 | |
| 6 | 44-8865 | DIODE - LED (green) | 1 | |
| 91-2532 | SPACER - LED | 1 | ||
| 44-8864 | HARNESS - diesel/electric | 1 | ||
| 1 | 91-2525 | BRACKET - slide | 1 | |
| 91-1961 | STANDOFF - self clinch (6-32) | 6 | ||
| 55-6721 | INSERT - threaded (10-32) | 5 | ||
| 2 | 91-5807 | SLIDE - chassis | 2 | |
| 91-2527 | ANGLE - slide | 1 | ||
| 55-6036 | SCREW - slide | 8 | ||
| 55-4223 | NUT | 8 | ||
| 7 | 44-709 | SWITCH - diesel/electric | 1 | |
|
10-44-709 | Выключатель четырехполюсный | 5 130 ₽ |
|
| 44-5827 | CONNECTOR (4-pin, male) | 1 | ||
| 44-4925 | CONNECTOR (6-pin) | 1 | ||
| 44-5814 | CONNECTOR (4-pin, female) | 1 | ||
| 44-5630 | TERMINAL - fingrip | A/R | ||
| 8 | 44-5537 | SOCKET - relay | 9 | |
| 55-3015 | SCREW - socket | 5 | ||
| 55-4560 | NUT | 5 | ||
| 9 | 44-9111 | RELAY - mini | 14 | |
|
10-44-9111 | Реле | 1 310 ₽ |
|
| 91-2529 | NAMEPLATE - DER-ER-ES-ERR | 1 | ||
| 91-2530 | NAMEPLATE - EFR #1, 2, 3 | 1 | ||
| 91-2531 | NAMEPLATE - DEF #2 | 1 | ||
| 10 | 91-2523 | PANEL - front (w/o Cycle Sentry) | 1 | |
| 91-4306 | PANEL - front (w/ Cycle Sentry) | 1 | ||
| 91-2524 | NAMEPLATE - panel | 1 | ||
| 91-2597 | NAMEPLATE (w/ C/S) | 1 | ||
| 11 | 91-2596 | HANDLE - pull | 2 | |
| 12 | NSS | PANEL - switch (see 96D5) | 1 | |
| 55-3021 | SCREW - panel | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 13 | 44-8764 | HOURMETER - engine | 1 | |
|
10-44-8764 | Счетчик часов | 7 260 ₽ |
|
| 14 | 44-1417 | LIGHT - indicator (white) | 1 | |
| 44-8751 | BULB - light | 1 | ||
| 15 | 44-8514 | CONNECTOR (4-pin) | 1 | |
| 16 | 44-6248 | CONNECTOR (3-pin) | 1 | |
| 44-6519 | CONNECTOR (2-pin) | 1 | ||
| 17 | 44-5219 | CONNECTOR (2-pin, male) | 1 | |
| 18 | 44-5719 | CONNECTOR (8-pin) | 1 | |
| 44-5630 | TERMINAL - fingrip | A/R | ||
| 19 | 45-1565 | THERMOSTAT - TG IV | 1 | |
| 55-3029 | SCREW - thermostat | 4 | ||
| 55-3800 | LOCKWASHER | 4 | ||
| 20 | 44-8466 | SENSOR - thermometer (digital, EMEIA) | 1 | |
| 55-4815 | SCREW - thermometer | 2 | ||
| 44-8784 | SPACER - tubular | 4 | ||
| 55-2999 | NUT | 2 | ||
| 21 | 44-3531 | BREAKER - circuit (20 amp) | 3 | |
| 55-3015 | SCREW - breaker | 3 | ||
| 55-4560 | NUT | 3 | ||
| 22 | 44-9391 | RELAY - mini (2pst) | 1 | |
|
10-44-9391 | Реле | 3 250 ₽ |
|
| 23 | 33-1084 | GROMMET | 1 | |
| 24 | 55-3000 | SCREW - ground | 1 | |
| 55-3006 | WASHER - shoulder (fiber) | 2 | ||
| 55-4560 | NUT | 1 | ||
| 25 | 44-9865 | BOARD - option | 1 | |
| 41-8291 | BUZZER - warning | 1 | ||
| 91-2528 | GUIDE - option board | 2 | ||
| 44-8867 | HARNESS - option board to switch panel | 1 | ||
| 44-5622 | CONNECTOR - option board (6-pin, female) | 1 | ||
| 44-5719 | CONNECTOR (8-pin, female) | 1 | ||
| 44-5620 | CONNECTOR - from main harness (2-pin, female) | 1 | ||
| 44-5219 | CONNECTOR - from main harness (2-pin, female) | 1 | ||
| 26 | 91-1277 | RETAINER - harness connector | 6 | |
| 55-3044 | RIVET - retainer | 6 | ||
| 27 | 44-8029 | RELAY - battery sentry | 1 | |
| 28 | 44-7192 | SWITCH - Cycle Sentry module | 1 | |
|
10-44-7192 | Выключатель стартера | 19 780 ₽ |
|
| 99-8475 | HOLDDOWN - spring | 1 | ||
| 55-2270 | RIVET - spring | 2 | ||
| 55-2771 | CLAMP - speednut | 1 | ||
| 29 | 44-9333 | BOARD - relay | 1 | |
| 44-8187 | JUMPER - defrost timer | 1 | ||
| 44-5719 | CONNECTOR - from main harness (8-pin, female) | 1 | ||
| 44-5622 | CONNECTOR - from main harness (6-pin, female) | 1 | ||
| 30 | 44-3186 | RELAY (3pdt) | 1 | |
|
10-44-3186 | Реле оттайки, KD/MD/RD/TD/URD-III / SB-I/II/III / SMX | 3 440 ₽ |
|
| 31 | 44-7531 | TIMER - defrost | 1 | |
|
10-44-7531 | Таймер оттайки | 17 150 ₽ |
|
| 99-8475 | HOLDDOWN - spring | 2 | ||
| 55-2270 | RIVET - spring | 4 | ||
| 55-2771 | CLAMP - speednut | 2 | ||
| 32 | 55-3741 | CLAMP - harness (0.75 dia) | 2 | |
| 55-4141 | CLAMP - harness (0.937 dia) | 1 | ||
| 33 | 44-9734 | HARNESS - sensor | 1 |
