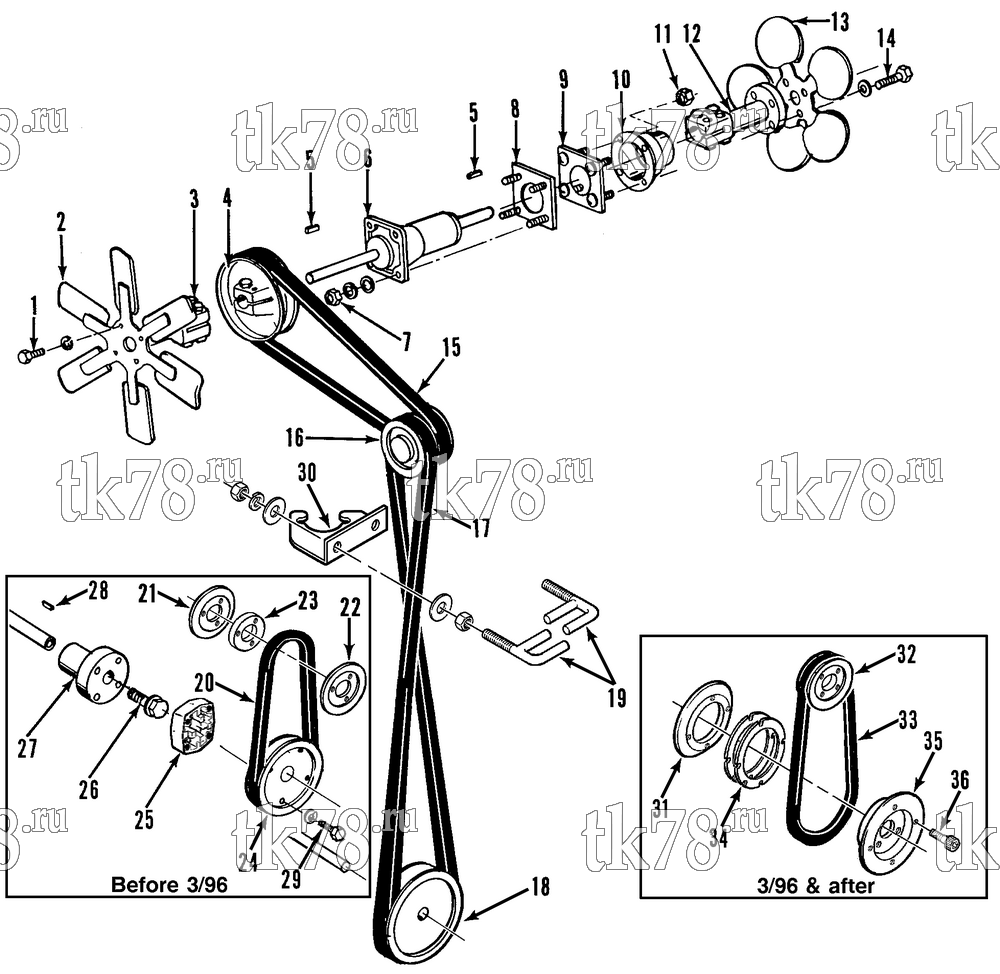

Установкa Thermo King схема BELTS, PULLEYS & FAN GROUP (50s) – 96B10
Обновление от: 7/16/96
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 55-2969 | SCREW - fan to hub | 4 | |
| 55-790 | LOCKWASHER | 4 | ||
| 55-371 | FLATWASHER | 4 | ||
| 2 | 78-559 | FAN - condenser | 1 | |
| 3 | 77-1046 | HUB | 1 | |
| 55-153 | SCREW - hub to shaft | 4 | ||
| 55-790 | LOCKWASHER | 4 | ||
| 55-371 | FLATWASHER | 4 | ||
| 4 | 77-2195 | PULLEY - fan drive (9.62 od) | 1 | |
| 55-153 | SCREW - pulley | 2 | ||
| 55-421 | LOCKWASHER | 2 | ||
| 5 | 55-457 | KEY | 3 | |
| 6 | 78-413 | FANSHAFT - assembly (see 20B7) | 1 | |
| 7 | 55-5078 | NUT - housing | 4 | |
| 55-402 | FLATWASHER | 4 | ||
| 8 | 99-3261 | BOLTPLATE - condenser | 1 | |
| 9 | 99-3269 | BOLTPLATE - evaporator | 1 | |
| 10 | 99-3371 | SUPPORT - shaft housing | 1 | |
| 11 | 55-4955 | NUT - support | 4 | |
| 12 | 78-923 | HUB - fan | 1 | |
| 55-139 | SCREW - hub to shaft | 4 | ||
| 55-790 | LOCKWASHER | 4 | ||
| 13 | 78-457 | FAN - evaporator (20.0 in) | 1 | |
| 14 | 55-2969 | SCREW - fan to hub | 4 | |
| 55-371 | FLATWASHER | 4 | ||
| 55-790 | LOCKWASHER | 4 | ||
| 15 | 78-654 | BELT - fan drive | 1 | |
| 16 | 77-1837 | PULLEY - idler (V-groove, see 68G10) | 1 | |
| 17 | 78-806 | BELT - idler to motor | 1 | |
| 18 | 77-1992 | PULLEY - motor | 1 | |
| 55-153 | SCREW - pulley | 4 | ||
| 55-421 | LOCKWASHER | 4 | ||
| 19 | 99-9404 | U-BOLT - belt guide | 2 | |
| 55-289 | NUT - u-bolt | 4 | ||
| 55-375 | LOCKWASHER | 2 | ||
| 55-402 | FLATWASHER | 4 | ||
| 20 | 78-842 | BELT - water pump | 1 | |
| 21 | 77-1595 | PULLEY - water pump (stationary, before 3/96) | 1 | |
| 22 | 77-1187 | PULLEY - water pump (sliding, before 3/96) | 1 | |
| 23 | 77-1285 | SPACER - pulley (0.035 thk) | A/R | |
| 77-2164 | SPACER - pulley (0.015 thk) | A/R | ||
| 55-4998 | SCREW - pulley | 3 | ||
| 55-790 | LOCKWASHER | 3 | ||
| 24 | 77-1369 | PULLEY - crankshaft | 1 | |
| 25 | 77-1664 | SPACER - pulley (0.57 thk) | 1 | |
| 26 | 10-266 | KIT - bolt (crankshaft) | 1 | |
| 11-5465 | WASHER | 1 | ||
| 27 | 77-1591 | BOSS - pulley | 1 | |
|
10-77-1591 | Шкив, Isuzu 2.2 D.I. | 6 840 ₽ |
|
| 28 | 55-1933 | KEY - boss | 1 | |
| 29 | 55-5611 | SCREW - pulley | 4 | |
| 55-5411 | LOCKWASHER | 4 | ||
| 30 | 91-5363 | BRACKET - belt guide | 1 | |
| 31 | 77-2394 | PULLEY - crankshaft (3/96 & after) | 1 | |
| 32 | 77-1345 | PULLEY - water pump (3/96 & after) | 1 | |
| 33 | 78-1011 | BELT | 1 | |
| 10-78-1011 | Ремень водяной помпы, SB-III после 96г. / SMX после 93г. | 3 100 ₽ |
|
|
| PP-78-1011 | Ремень водяной помпы, SB-III после 96г. / SMX после 93г. | 1 100 ₽ |
|
|
| 34 | 77-2387 | SHIM - pulley (0.015 thk) | 1 | |
| 77-2386 | SHIM - pulley (0.036 thk) | 1 | ||
| 35 | 77-2385 | PULLEY - half section (3/96 & after) | 1 | |
| 36 | 55-8682 | SCREW - pulley | 4 |
