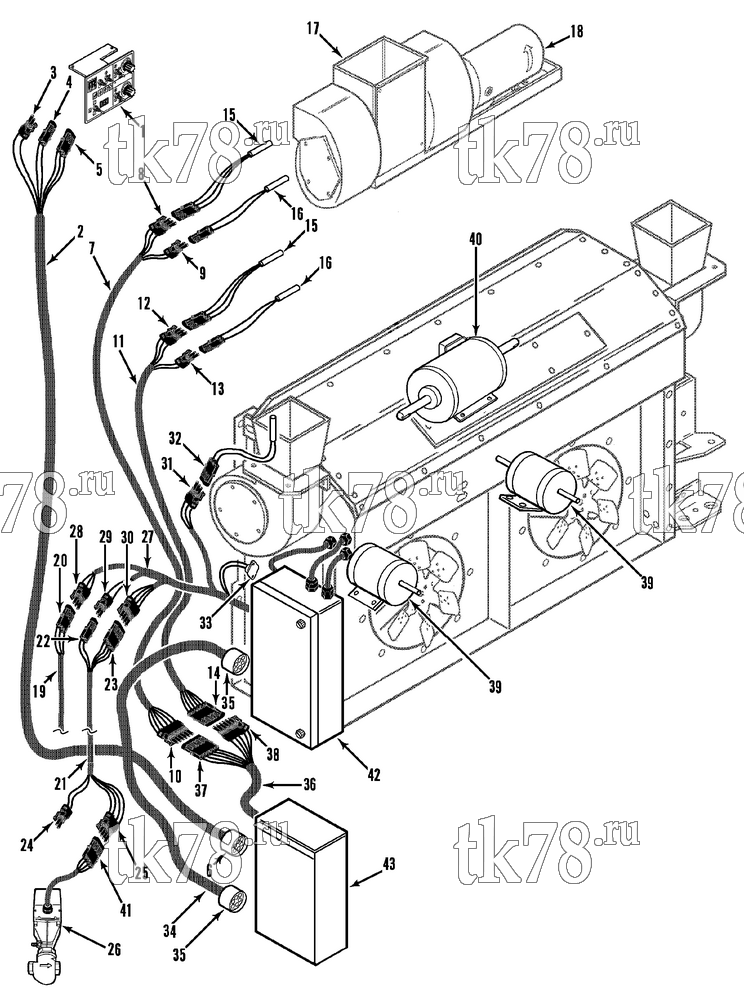

Установкa Thermo King схема ELECTRICAL COMPONENTS – 95G1
Обновление от: 4/28/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | N/A | PANEL - driver control (see 95E7) | 1 | |
| 2 | 44-8803 | HARNESS - driver panel | 1 | |
| 3 | 44-5838 | CONNECTOR - tower (2-pin) | 1 | |
| 4 | 44-5835 | CONNECTOR - shroud (2-pin) | 1 | |
| 5 | 44-9569 | CONNECTOR - shroud (3-pin) | 1 | |
| 44-5836 | TERMINAL - male (14-16 ga) | 5 | ||
| 44-5839 | TERMINAL - female (14-16 ga) | 2 | ||
| 44-5837 | SEAL - cable (gray, 14-16 ga) | 7 | ||
| 6 | 44-8804 | PLUG (23-pin) | 1 | |
| 44-8850 | SOCKET - terminal | 20 | ||
| 44-9602 | PIN - sealing | 3 | ||
| 7 | 44-8800 | HARNESS - top floor sensors | 1 | |
| 8 | 44-6959 | CONNECTOR - tower (3-pin) | 1 | |
| 9 | 44-5838 | CONNECTOR - tower (2-pin) | 1 | |
| 10 | 44-7872 | CONNECTOR - tower (6-pin) | 1 | |
| 44-5839 | TERMINAL - female (14-16 ga) | 10 | ||
| 44-5837 | SEAL - cable (gray, 14-16 ga) | 10 | ||
| 44-7812 | PLUG - cavity (green) | 1 | ||
| 11 | 44-8801 | HARNESS - lower floor sensors | 1 | |
| 12 | 44-6959 | CONNECTOR - tower (3-pin) | 1 | |
| 13 | 44-5838 | CONNECTOR - tower (2-pin) | 1 | |
| 44-5839 | TERMINAL - female (14-16 ga) | 5 | ||
| 44-5837 | SEAL - cable (gray, 14-16 ga) | 5 | ||
| 14 | 44-8294 | CONNECTOR - shroud (6-pin) | 1 | |
| 44-5836 | TERMINAL - male (14-16 ga) | 5 | ||
| 44-5837 | SEAL - cable (gray, 14-16 ga) | 1 | ||
| 44-7812 | PLUG - cavity (green) | 1 | ||
| 15 | 44-8794 | SENSOR - thermometer | 2 | |
| 44-9569 | CONNECTOR - shroud (3-pin) | 1 | ||
| 44-5883 | TERMINAL - male (18-20 ga) | 3 | ||
| 44-8681 | SEAL - cable (red, 18-20 ga) | 3 | ||
| 16 | 44-8654 | SENSOR - thermostat | 2 | |
| 44-5835 | CONNECTOR - shroud (2-pin) | 1 | ||
| 17 | N/A | BLOWER - auxiliary (see 95E6) | 1 | |
| 18 | 104-652 | MOTOR - blower (see 77D11) | 1 | |
| 19 | 44-8802 | HARNESS - compressor | 1 | |
| 20 | 44-6959 | CONNECTOR - tower (3-pin) | 2 | |
| 44-5839 | TERMINAL - female (14-16 ga) | 6 | ||
| 44-5837 | SEAL - cable (gray, 14-16 ga) | 6 | ||
| 21 | 44-8799 | HARNESS - coolant valve & boost pump | 1 | |
| 22 | 44-5835 | CONNECTOR - shroud (2-pin) | 1 | |
| 23 | 44-7880 | CONNECTOR - shroud (4-pin) | 1 | |
| 44-5836 | TERMINAL - male (14-16 ga) | 6 | ||
| 24 | 44-5838 | CONNECTOR - tower (2-pin) | 1 | |
| 25 | 44-7881 | CONNECTOR - tower (4-pin) | 1 | |
| 44-5839 | TERMINAL - female (14-16 ga) | 6 | ||
| 44-5837 | SEAL - cable (gray, 14-16 ga) | 12 | ||
| 26 | 41-3754 | VALVE - actuator (see 86E12) | 1 | |
| 27 | 44-8793 | HARNESS - control | 1 | |
| 28 | 44-9569 | CONNECTOR - shroud (3-pin) | 1 | |
| 29 | 44-5838 | CONNECTOR - tower (2-pin) | 1 | |
| 30 | 44-7881 | CONNECTOR - tower (4-pin) | 1 | |
| 31 | 44-6959 | CONNECTOR - tower (3-pin) | 1 | |
| 44-5837 | SEAL - cable (gray, 14-16 ga) | 12 | ||
| 44-5839 | TERMINAL - female (14-16 ga) | 9 | ||
| 44-5836 | TERMINAL - male (14-16 ga) | 3 | ||
| 32 | 44-8794 | SENSOR - ambient | 1 | |
| 33 | 44-6005 | THERMOSTAT - ambient | 1 | |
| 34 | 44-8852 | HARNESS - control box to remote box | 1 | |
| 35 | 44-8853 | CONNECTOR (19-pin) | 2 | |
| 36 | 44-8797 | HARNESS | 1 | |
| 37 | 44-8294 | CONNECTOR - shroud (6-pin) | 1 | |
| 38 | 44-7872 | CONNECTOR - tower (6-pin) | 1 | |
| 44-5836 | TERMINAL - male (14-16 ga) | 6 | ||
| 44-5837 | SEAL - cable (gray, 14-16 ga) | 12 | ||
| 44-5837 | SEAL - cable (gray, 14-16 ga) | 6 | ||
| 39 | 104-652 | MOTOR - condenser fan (see 77D11) | 1 | |
| 40 | 104-461 | MOTOR - evaporator fan (see 77D12) | 1 | |
| 41 | 44-7880 | CONNECTOR - shroud (4-pin) | 1 | |
| 42 | NSS | BOX - control (see 95E9) | 1 | |
| 43 | N/A | BOX - remote control (see 95E8) | 1 |
