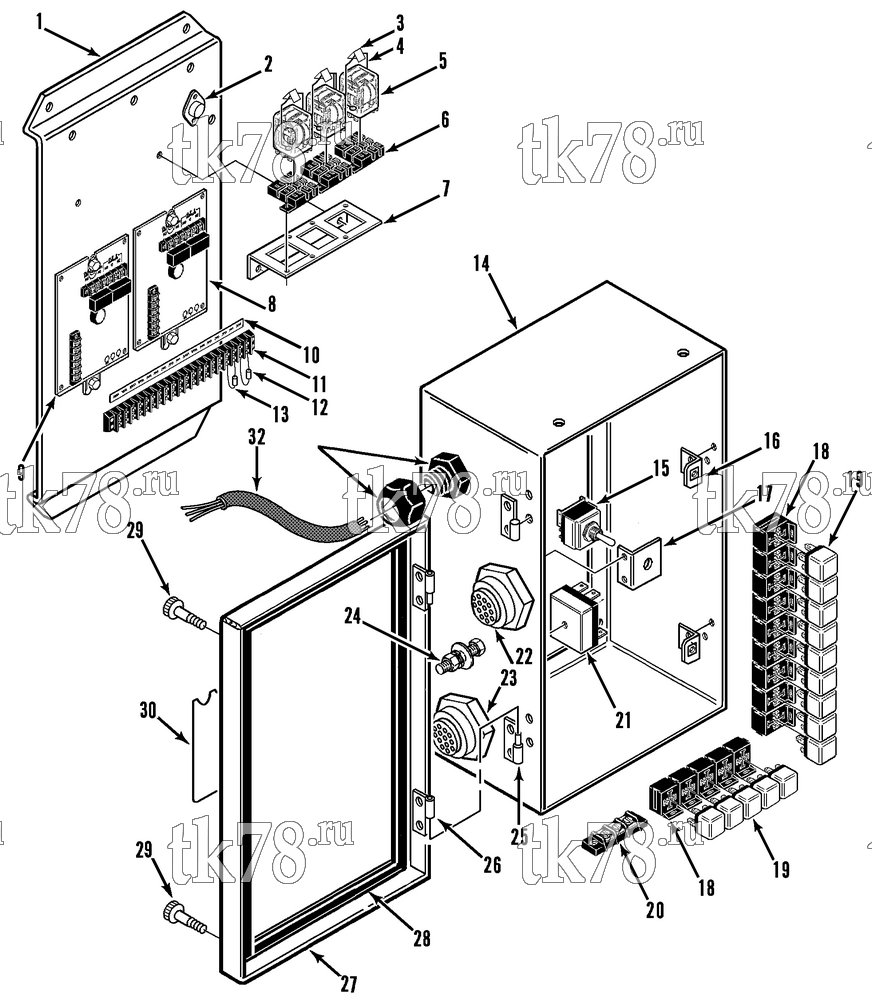

Установкa Thermo King схема REMOTE CONTROL BOX (T9-M3) – 95E8
Обновление от: 5/7/97
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 91-2417 | PANEL - control box | 1 | |
| 55-2995 | SCREW - panel | 18 | ||
| 55-2001 | FLATWASHER | 18 | ||
| 55-4560 | NUT | 18 | ||
| 2 | 44-4035 | RECTIFIER | 1 | |
| 55-3003 | SCREW - rectifier | 2 | ||
| 55-3014 | LOCKWASHER | 2 | ||
| 55-3013 | FLATWASHER | 2 | ||
| 3 | 55-2771 | CLAMP | 3 | |
| 4 | 99-2027 | SPRING - holddown (relay) | 3 | |
| 55-2270 | RIVET | 6 | ||
| 5 | 44-4025 | RELAY - air cond (heat & aux, K2) | 3 | |
| 6 | 44-3184 | SOCKET - relay | 3 | |
| 7 | 91-2418 | BRACKET - relay | 1 | |
| 55-2995 | SCREW - bracket | 2 | ||
| 55-2964 | LOCKWASHER | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 8 | 44-8479 | THERMOSTAT (#1) | 1 | |
| 9 | 44-7476 | THERMOSTAT (#2) | 1 | |
| 55-2995 | SCREW - thermostat (#10) | 2 | ||
| 55-2964 | LOCKWASHER | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 55-2977 | SCREW - thermostat (1/4) | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 10 | 91-2419 | NAMEPLATE | 1 | |
| 11 | 44-5335 | BOARD - terminal | 1 | |
| 55-2868 | SCREW - board | 2 | ||
| 55-3014 | LOCKWASHER | 2 | ||
| 55-3013 | FLATWASHER | 2 | ||
| 12 | 44-8635 | RESISTOR (100K ohm) | 1 | |
| 13 | 44-8011 | RESISTOR (4.7K ohm) | 1 | |
| 14 | 91-2420 | BOX - control | 1 | |
| 15 | 44-490 | SWITCH - preheat/cycle | 1 | |
|
10-44-490 | Выключатель | 2 590 ₽ |
|
| 16 | 91-2137 | BRACKET - cover | 2 | |
| 55-3059 | NUT - captive | 2 | ||
| 55-2995 | SCREW - bracket | 4 | ||
| 55-2964 | LOCKWASHER | 4 | ||
| 55-2965 | NUT | 4 | ||
| 17 | 91-2424 | BRACKET - switch | 1 | |
| 91-2422 | NAMEPLATE - switch | 1 | ||
| 55-2295 | SCREW - bracket | 2 | ||
| 55-2001 | FLATWASHER | 4 | ||
| 55-2964 | LOCKWASHER | 2 | ||
| 55-2965 | NUT | 2 | ||
| 18 | 44-5537 | SOCKET - relay | 14 | |
| 55-2295 | SCREW - socket | 7 | ||
| 55-2001 | FLATWASHER | 14 | ||
| 55-2964 | LOCKWASHER | 7 | ||
| 55-2965 | NUT | 7 | ||
| 19 | 44-9112 | RELAY - plug-in | 14 | |
| 20 | 44-1750 | BOARD - terminal | 1 | |
| 91-2421 | NAMEPLATE | 1 | ||
| 55-2868 | SCREW - board | 2 | ||
| 55-3013 | FLATWASHER | 4 | ||
| 55-3014 | LOCKWASHER | 2 | ||
| 55-2999 | NUT | 2 | ||
| 21 | 44-6428 | TIMER - solid state | 1 | |
| 44-4319 | RESISTOR (470K ohm) | 1 | ||
| 55-5070 | SCREW - timer | 1 | ||
| 55-3013 | FLATWASHER | 2 | ||
| 55-3014 | LOCKWASHER | 1 | ||
| 55-2999 | NUT | 1 | ||
| 22 | 44-8836 | RECEPTACLE (23-pin) | 1 | |
| 44-9591 | TERMINAL - pin (16-18 ga) | 20 | ||
| 44-9602 | PLUG - seal | 3 | ||
| 23 | 44-6505 | RECEPTACLE (19-pin) | 1 | |
| 44-9591 | TERMINAL - pin (16-18 ga) | 19 | ||
| 55-5398 | NUT - receptacle | 2 | ||
| 55-5397 | LOCKWASHER | 2 | ||
| 24 | 55-3167 | STUD | 1 | |
| 55-448 | FLATWASHER | 2 | ||
| 55-3066 | LOCKWASHER (internal tooth) | 3 | ||
| 55-3672 | LOCKWASHER (internal/external tooth) | 1 | ||
| 55-671 | NUT | 4 | ||
| 25 | 99-8057 | HINGE (male) | 2 | |
| 55-2295 | SCREW - hinge | 4 | ||
| 55-2001 | FLATWASHER | 8 | ||
| 55-2964 | LOCKWASHER | 4 | ||
| 55-2965 | NUT | 4 | ||
| 26 | 99-8056 | HINGE (female) | 2 | |
| 55-3015 | SCREW - hinge | 4 | ||
| 55-2001 | FLATWASHER | 8 | ||
| 55-2964 | LOCKWASHER | 4 | ||
| 55-2965 | NUT | 4 | ||
| 27 | 91-2432 | COVER - control box | 1 | |
| 28 | 99-8986 | STRIP - gasket (cover) | A/R | |
| 29 | 55-5396 | SCREW - cover | 2 | |
| 30 | 99-2789 | NAMEPLATE - TK Logo | 1 | |
| 31 | 55-6141 | CONNECTOR - harness | 1 | |
| 32 | 44-8797 | HARNESS - remote control | 1 |
