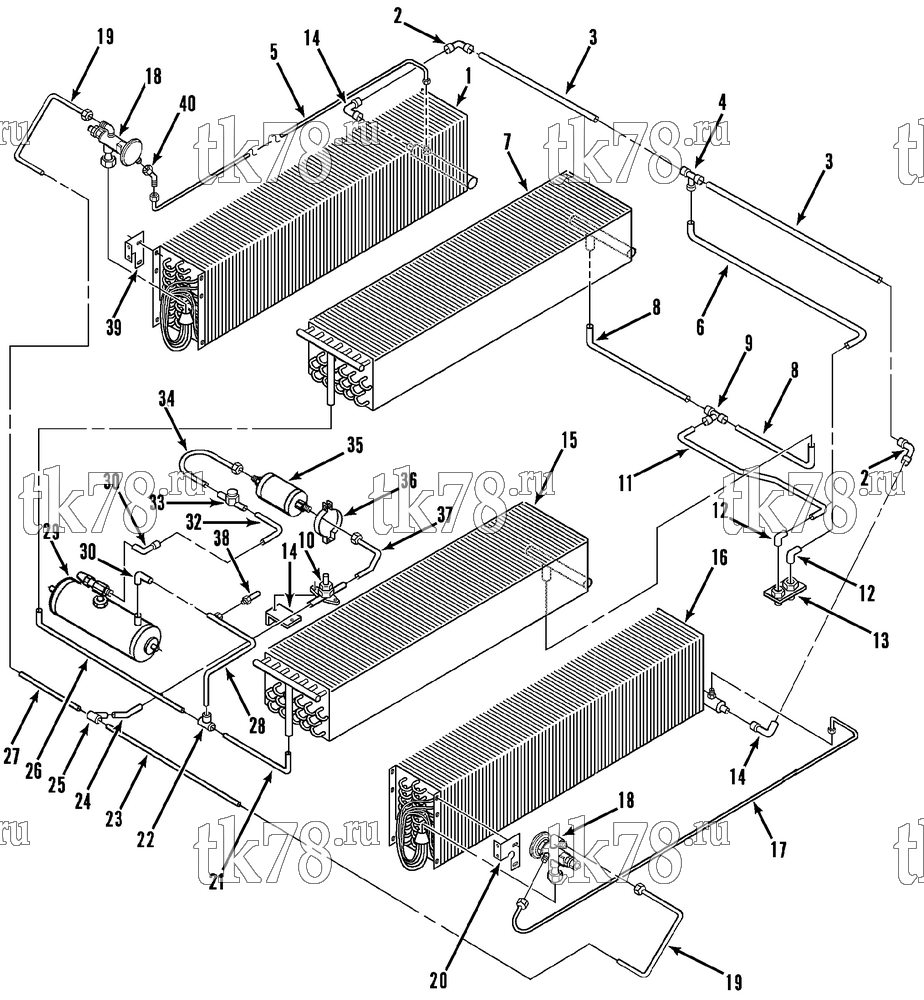

Установкa Thermo King схема REFRIGERATION COMPONENTS – 94C7
Обновление от: 3/15/01
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-965 | COIL - evaporator (curbside) | 1 | |
| 2 | 55-3682 | ELBOW | 2 | |
| 3 | 66-5683 | TUBE - suction (elbow to tee) | 2 | |
| 4 | 55-5616 | TEE | 1 | |
| 5 | 66-5623 | TUBE - equalizer (curbside) | 1 | |
| 6 | 66-5684 | TUBE - suction (tee to adapter) | 1 | |
| 7 | 67-958 | COIL - condenser (curbside) | 1 | |
| 55-3059 | NUT - captive | 4 | ||
| 8 | 66-5651 | TUBE - tee to condenser | 2 | |
| 9 | 55-6174 | TEE | 1 | |
| 10 | 66-1246 | VALVE - shutoff | 1 | |
| 11 | 66-5676 | TUBE - adapter to tee | 1 | |
| 12 | 66-5675 | TUBE - discharge | 1 | |
| 13 | 91-2314 | PLATE - adapter | 1 | |
| 66-5247 | ADAPTER - bulkhead (#16) | 1 | ||
| 66-6415 | ADAPTER - suction | 1 | ||
| 14 | 91-2317 | BRACKET - shutoff valve | 1 | |
| 15 | 67-957 | COIL - evaporator (roadside) | 1 | |
| 55-3059 | NUT - captive | 4 | ||
| 55-1587 | SCREW - coil | 8 | ||
| 55-1800 | LOCKWASHER | 8 | ||
| 55-2086 | FLATWASHER | 8 | ||
| 91-2038 | BOLTSTRIP - coil (center header plate) | 2 | ||
| 55-2086 | FLATWASHER | 6 | ||
| 55-4953 | NUT - coil | 6 | ||
| 16 | 67-964 | COIL - evaporator (roadside) | 1 | |
| 55-3059 | NUT - captive | 6 | ||
| 17 | 66-5622 | TUBE - equalizer (roadside) | 1 | |
| 18 | 66-5686 | VALVE - expansion | 2 | |
| 61-811 | SCREEN - inlet | 1 | ||
| 61-818 | ELEMENT - power | 1 | ||
| 19 | 66-5614 | TUBE - expansion valve inlet | 2 | |
| 20 | 91-2045 | BRACKET - expansion valve (roadside) | 1 | |
| 55-3547 | U-BOLT - valve | 2 | ||
| 55-2001 | FLATWASHER | 4 | ||
| 55-4560 | NUT | 4 | ||
| 55-1587 | SCREW - bracket | 4 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-3059 | NUT - captive | 4 | ||
| 21 | 66-5677 | TUBE - condenser outlet (roadside) | 1 | |
| 22 | 55-2296 | TEE | 1 | |
| 23 | 66-5681 | TUBE - tee to evaporator | 1 | |
| 24 | 66-5680 | TUBE - valve to tee | 1 | |
| 25 | 55-6222 | TEE | 1 | |
| 26 | 66-5678 | TUBE - condenser outlet (curbside) | 1 | |
| 27 | 66-5681 | TUBE - tee to evaporator | 1 | |
| 28 | 66-5687 | TUBE - tee to receiver | 1 | |
| 55-3295 | FITTING - saddle | 1 | ||
| 29 | 67-966 | TANK - receiver | 1 | |
| 55-4955 | NUT | 2 | ||
| 55-2641 | FLATWASHER | 2 | ||
| 30 | 55-1464 | ELBOW | 2 | |
| 31 | Not Used | |||
| 32 | 66-5656 | TUBE - receiver to indicator | 1 | |
| 33 | 66-1188 | INDICATOR - liquid | 1 | |
| 34 | 66-5655 | TUBE - indicator to dehydrator | 1 | |
| 35 | 66-4857 | DEHYDRATOR | 1 | |
| 36 | 55-2365 | HANGER - dehydrator | 1 | |
| 55-2979 | SCREW - dehydrator | 1 | ||
| 55-4953 | NUT | 1 | ||
| 55-3033 | SCREW - hanger | 1 | ||
| 55-2958 | FLATWASHER | 1 | ||
| 55-4954 | NUT | 1 | ||
| 37 | 66-5658 | TUBE - dehydrator to tee | 1 | |
| 38 | 66-7392 | VALVE - relief (high pressure) | 1 | |
|
10-66-7392 | Предохранительный клапан | 3 480 ₽ |
|
| PP-66-7392 | Предохранительный клапан | 1 730 ₽ |
|
|
| 39 | 91-2044 | BRACKET - expansion valve (curbside) | 1 | |
| 40 | 66-5624 | ELBOW | 1 |
