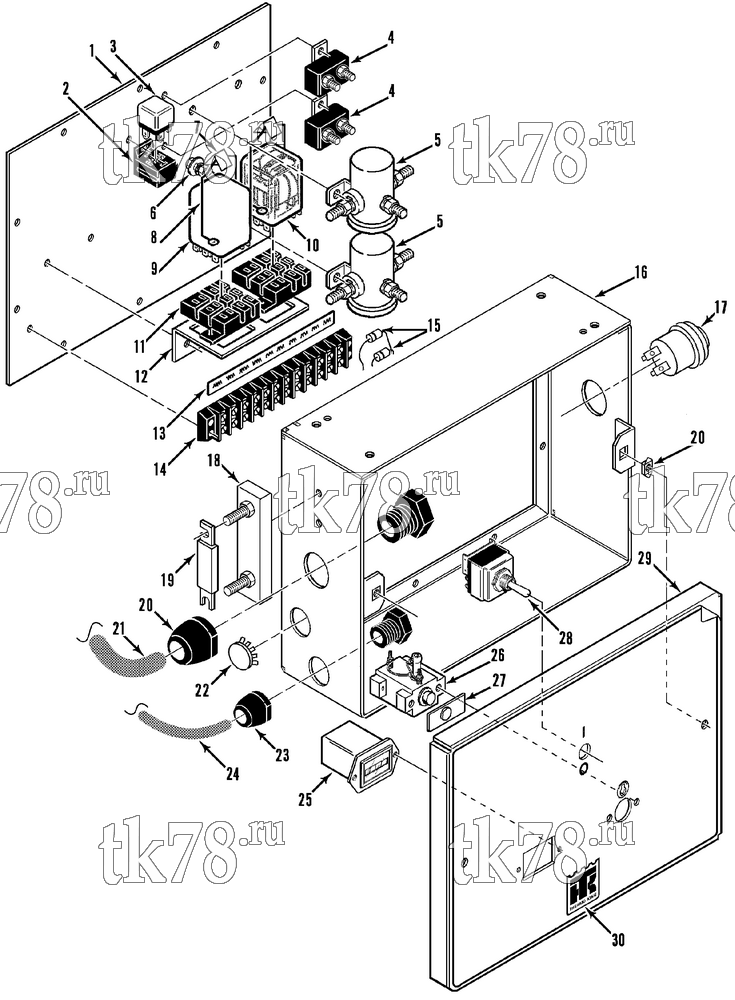

Установкa Thermo King схема CONTROL BOX ASSEMBLY – 94C4
Обновление от: 5/29/01
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 91-2268 | PLATE - bottom | 1 | |
| 55-2995 | SCREW - plate | 10 | ||
| 55-2001 | FLATWASHER | 10 | ||
| 55-2964 | LOCKWASHER | 10 | ||
| 55-2965 | NUT | 10 | ||
| 2 | 44-5537 | SOCKET - relay | 1 | |
| 55-3015 | SCREW - socket | 1 | ||
| 55-2001 | FLATWASHER | 1 | ||
| 55-2964 | LOCKWASHER | 1 | ||
| 55-2965 | NUT | 1 | ||
| 3 | 44-9112 | RELAY - throttle | 1 | |
| 4 | 44-6767 | BREAKER - circuit (10 amp) | 2 | |
| 55-2995 | SCREW - breaker | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 55-2964 | LOCKWASHER | 2 | ||
| 55-2965 | NUT | 2 | ||
| 5 | 41-3987 | SOLENOID - starter & preheat | 2 | |
| 55-3018 | SCREW - solenoid | 4 | ||
|
20-55-3018 | Болт | 540 ₽ |
|
| 55-2086 | FLATWASHER | 4 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 55-1801 | NUT | 4 | ||
| 6 | 55-3000 | SCREW - ground | 1 | |
| 55-3496 | LOCKWASHER (internal/external tooth) | 1 | ||
| 55-1852 | LOCKWASHER (internal tooth) | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 55-2965 | NUT | 2 | ||
| 7 | 55-2771 | CLAMP - relay | 2 | |
| 8 | 99-2027 | SPRING - holddown (relay) | 2 | |
| 55-2988 | RIVET - socket/spring | 4 | ||
| 9 | 44-7462 | SWITCH - starter lockout | 1 | |
| 10 | 44-4025 | RELAY - fuel shutoff | 1 | |
| 11 | 44-3184 | SOCKET - relay | 2 | |
| 12 | 91-458 | BRACKET - relay | 1 | |
| 55-2995 | SCREW - bracket | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 55-2964 | LOCKWASHER | 2 | ||
| 55-2965 | NUT | 2 | ||
| 13 | 91-2269 | NAMEPLATE | 1 | |
| 14 | 44-4551 | BOARD - terminal | 1 | |
| 55-4487 | SCREW - board | 2 | ||
| 55-3013 | FLATWASHER | 4 | ||
| 55-3014 | LOCKWASHER | 2 | ||
| 55-2999 | NUT | 2 | ||
| 15 | 44-2756 | DIODE | 2 | |
|
10-44-2756 | Диод соленоида тяги | 1 920 ₽ |
|
| 16 | 91-2267 | BOX - control | 1 | |
| 17 | 44-8710 | LAMP - glow plug indicator | 1 | |
| 18 | 44-8708 | HOLDER - fuse | 1 | |
| 55-3564 | SCREW - holder | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 55-2964 | LOCKWASHER | 2 | ||
| 55-2965 | NUT | 2 | ||
| 19 | 44-8709 | FUSE (130 amp) | 1 | |
| 20 | 55-6141 | CONNECTOR - main harness | 1 | |
| 55-5018 | NUT - connector | 1 | ||
| 21 | 44-8706 | HARNESS - main | 1 | |
| 22 | 55-5765 | PLUG - button | 1 | |
| 23 | 55-6153 | CONNECTOR - driver harness | 1 | |
| 55-5021 | LOCKNUT | 1 | ||
| 24 | 44-8707 | HARNESS - driver | 1 | |
| 25 | 44-5703 | HOURMETER | 1 | |
|
10-44-5703 | Счетчик часов | 6 030 ₽ |
|
| 55-3256 | SCREW - hourmeter | 2 | ||
| 55-3014 | LOCKWASHER | 2 | ||
| 55-3013 | FLATWASHER | 2 | ||
| 26 | 44-1390 | SWITCH - high temperature cutout | 1 | |
| 44-1376 | RESISTOR | 1 | ||
| 27 | 44-2119 | SEAL - switch | 1 | |
| 55-3200 | SCREW - switch | 2 | ||
| 55-2202 | LOCKWASHER | 2 | ||
| 55-2201 | FLATWASHER | 2 | ||
| 28 | 44-1357 | SWITCH - on/off | 1 | |
|
10-44-1357 | Выключатель однополюсный | 4 400 ₽ |
|
| PP-44-1357 | Выключатель однополюсный | 2 000 ₽ |
|
|
| 29 | 91-2270 | COVER - control box | 1 | |
| 30 | 91-456 | NAMEPLATE - cover | 1 | |
| 31 | 55-3059 | NUT - captive (cover) | 2 | |
| 55-2957 | SCREW - cover | 2 | ||
| 55-2993 | LOCKWASHER | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-4510 | RETAINER - screw | 2 |
