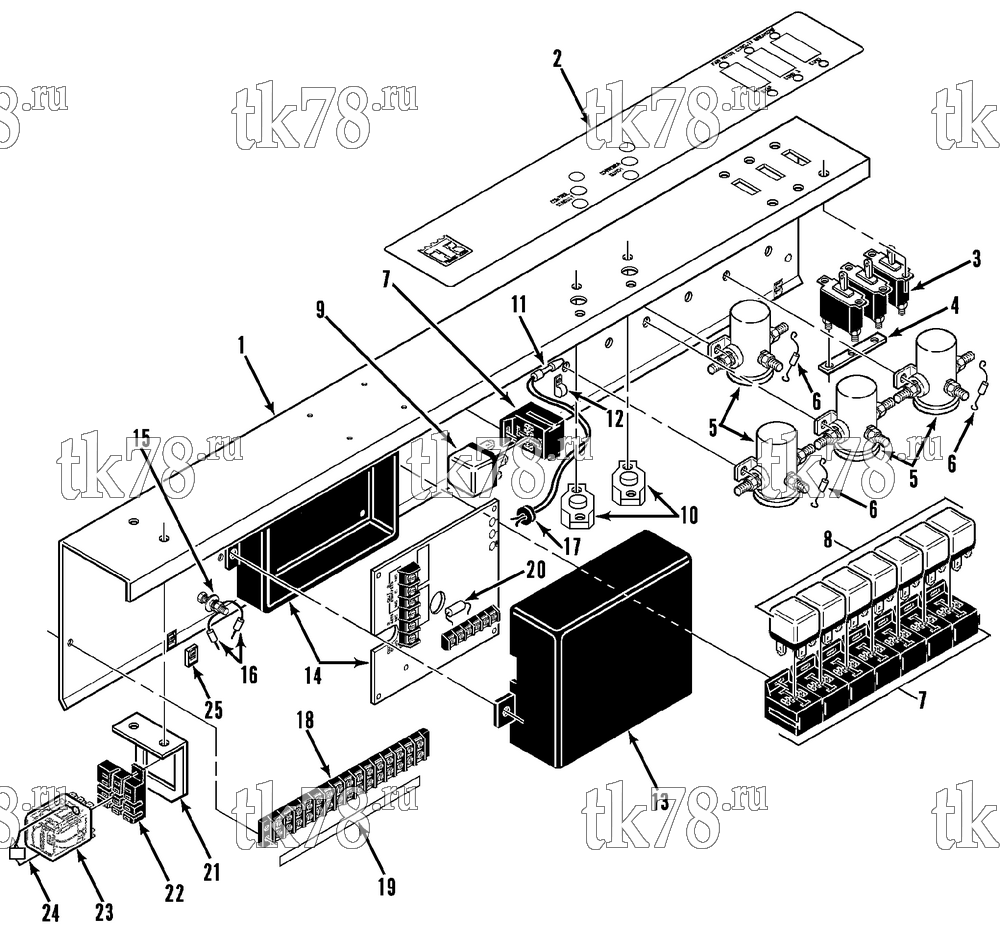

Установкa Thermo King схема CONTROL PANEL ASSEMBLY (T2-M17) – 94A11
Обновление от: 5/29/01
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 91-2293 | PANEL - control | 1 | |
| 55-1587 | SCREW - panel | 6 | ||
| 55-2086 | FLATWASHER | 6 | ||
| 55-1800 | LOCKWASHER | 6 | ||
| 2 | 91-2294 | NAMEPLATE - panel | 1 | |
| 3 | 44-5494 | BREAKER - circuit (65 amp) | 3 | |
| 55-3513 | SCREW - breaker | 6 | ||
| 55-3013 | FLATWASHER | 6 | ||
| 55-3014 | LOCKWASHER | 6 | ||
| 4 | 44-6044 | JUMPER - circuit breaker | 1 | |
| 5 | 41-3987 | SOLENOID - evaporator/condenser fan | 4 | |
| 55-1587 | SCREW - solenoid | 8 | ||
| 55-2086 | FLATWASHER | 8 | ||
| 55-1800 | LOCKWASHER | 8 | ||
| 55-3085 | NUT - captive | 8 | ||
| 6 | 44-6007 | DIODE | 3 | |
| 7 | 44-5537 | SOCKET - relay | 8 | |
| 55-3027 | SCREW - socket | 4 | ||
| 55-2001 | FLATWASHER | 4 | ||
| 55-2964 | LOCKWASHER | 4 | ||
| 55-3493 | NUT - captive | 4 | ||
| 8 | 44-9112 | RELAY - mini (27VDC) | 7 | |
| 9 | 44-9111 | RELAY - mini (15VDC) | 1 | |
|
10-44-9111 | Реле | 1 310 ₽ |
|
| 10 | 44-7216 | BREAKER - circuit (10 amp) | 2 | |
| 55-3843 | SCREW - breaker | 4 | ||
| 55-2001 | FLATWASHER | 4 | ||
| 55-2964 | LOCKWASHER | 4 | ||
| 11 | 44-8747 | SENSOR - thermostat | 1 | |
| 12 | 55-3484 | CLAMP - sensor | 1 | |
| 55-3027 | SCREW - clamp | 1 | ||
| 55-2001 | FLATWASHER | 1 | ||
| 55-2964 | LOCKWASHER | 1 | ||
| 55-2965 | NUT | 1 | ||
| 13 | 91-2295 | COVER - thermostat | 1 | |
| 14 | 44-7476 | THERMOSTAT - electronic | 1 | |
| 55-3027 | SCREW - thermostat & cover | 3 | ||
| 55-2001 | FLATWASHER | 3 | ||
| 55-2964 | LOCKWASHER | 3 | ||
| 15 | 55-1801 | NUT - ground (1/4-20) | 2 | |
| 55-2699 | LOCKWASHER (internal/external tooth) | 1 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-2993 | LOCKWASHER (internal) | 1 | ||
| 16 | 44-7377 | DIODE - assembly | 1 | |
| 17 | 33-415 | GROMMET (5/8 id) | 1 | |
| 18 | 44-5350 | BOARD - terminal | 1 | |
| 55-6773 | SCREW - terminal board | 2 | ||
| 55-3013 | FLATWASHER | 2 | ||
| 55-3014 | LOCKWASHER | 2 | ||
| 55-2999 | NUT | 2 | ||
| 19 | 91-2297 | MARKSTRIP | 1 | |
| 20 | 44-8676 | RESISTOR | 1 | |
| 21 | 91-2296 | BRACKET - relay | 1 | |
| 55-5975 | SCREW - bracket | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 55-2964 | LOCKWASHER | 2 | ||
| 22 | 44-3184 | SOCKET - relay | 1 | |
| 23 | 44-4025 | RELAY - clutch | 1 | |
| 24 | 99-2027 | SPRING - holddown (relay) | 1 | |
| 55-2771 | CLAMP - spring | 1 | ||
| 55-2270 | RIVET - spring & socket | 2 | ||
| 25 | 99-3427 | MOUNT - cable tie | 4 | |
| 55-3010 | RIVET - mount | 4 |
