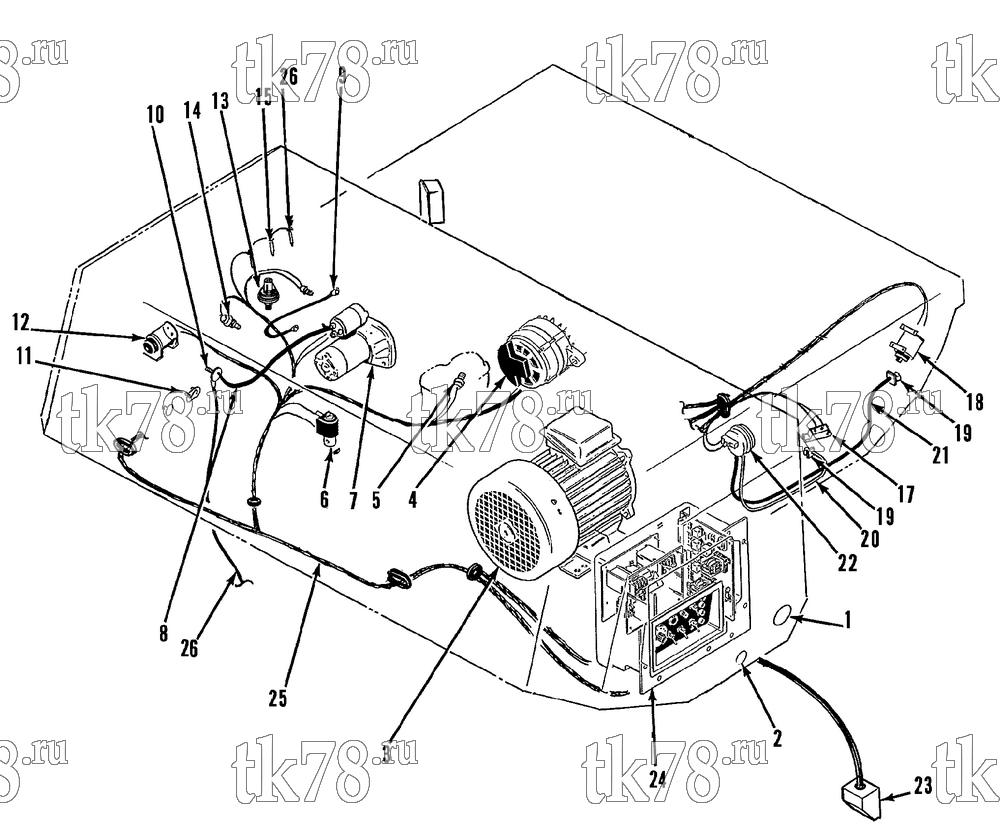

Установкa Thermo King схема ELECTRICAL COMPONENTS (GAUGES & SENSORS) – 94A1
Обновление от: 10/11/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 44-8047 | THERMOMETER - digital (F) | 1 | |
| 44-8048 | THERMOMETER - digital (C) | 1 | ||
| 44-7674 | SENSOR - thermometer | 1 | ||
| 61-3467 | THERMOMETER - analog | 1 | ||
|
10-61-3467 | Термометр | 15 250 ₽ |
|
| 55-2997 | SCREW - thermometer | 3 | ||
| 55-3013 | FLATWASHER | 3 | ||
| 55-2999 | NUT | 3 | ||
| 2 | 44-8764 | HOURMETER | 1 | |
|
10-44-8764 | Счетчик часов | 7 260 ₽ |
|
| 44-7314 | HOURMETER (digital, optional) | 1 | ||
| 3 | 104-483 | MOTOR (220-230-380-460/3/50-60, 25 & 50 units only) | 1 | |
| 77-2503 | BEARING (front & rear) | 2 | ||
| 55-9128 | BOLT - thru | 4 | ||
| 91-1719 | BARB - fitting | 1 | ||
| 99-9084 | NAMEPLATE - arrow | 1 | ||
| 4 | 41-2198 | ALTERNATOR (37 amp, model EA, see 78A9) | 1 | |
|
10-41-2195 | Генератор 37A, MD/RD/TD-II / SB-II/III | 19 510 ₽ |
|
| 41-2194 | ALTERNATOR (23 amp, model 8MR) | 1 | ||
|
10-41-2194 | Генератор 23A, KD/MD/RD/TD-II / TS / SB-II/III | 19 720 ₽ |
|
| 44-7512 | CAPACITOR - alternator | 1 | ||
| 5 | 41-3846 | SWITCH - hpco (R502) | 1 | |
| 6 | 66-2009 | VALVE - pilot solenoid | 1 | |
|
10-66-2009 | Управляющий клапан, KD/MD/TD/RD-II / SB-I/II/III | 18 500 ₽ |
|
| 44-3803 | COIL - valve (3/8 bore) | 1 | ||
| 41-1525 | COIL - valve (7/16 bore) | 1 | ||
|
10-41-1525 | Катушка соленоида, 12V 8W | 15 030 ₽ |
|
| 55-8786 | NUT - valve | 1 | ||
| 7 | 45-1718 | STARTER (see 132A8) | 1 | |
|
10-45-1718 | Стартер, Yanmar 366 / 374 / 388 / 395 | 12 860 ₽ |
|
| PP-45-1718 | Стартер, Yanmar 366 / 374 / 388 / 395 | 9 310 ₽ |
|
|
| 45-2326 | STARTER (standard life plus) | 1 | ||
| 8 | 44-8430 | CABLE - starter to battery (positive terminal) | 1 | |
| 9 | 44-7186 | CABLE - ground (terminal to engine bracket) | 1 | |
| 10 | 55-2961 | SCREW - terminal (battery cable, 3/8-16 x 1-1/2) | 1 | |
| 55-6432 | SCREW - terminal (battery cable, 3/8-16 x 2-1/2) | 1 | ||
| 55-5901 | WASHER - shoulder (0.41 id, polyester) | 1 | ||
| 55-5902 | FLATWASHER (0.41 id, polyester) | 1 | ||
| 55-2641 | FLATWASHER | 8 | ||
| 55-3471 | LOCKWASHER | 4 | ||
| 55-3300 | NUT | 4 | ||
| 99-9855 | NAMEPLATE - Battery Terminal | 1 | ||
| 11 | 44-8244 | FUSE LINK (see note) | 1 | |
|
10-44-8244 | Провод предохранителя | 1 790 ₽ |
|
| 40-805 | KIT - battery fuse | 1 | ||
|
10-40-805 | Корпус предохранителя (60 ампер) | 7 860 ₽ |
|
| 41-3666 | FUSE (60 amp) | 1 | ||
| 55-3000 | SCREW - terminal (positive, 10-32) | 3 | ||
| 55-3006 | WASHER - shoulder | 6 | ||
| 55-2001 | FLATWASHER | 11 | ||
| 55-2996 | LOCKWASHER | 6 | ||
| 55-2965 | NUT | 6 | ||
| 12 | 44-7441 | SOLENOID - fuel (see 90E11) | 1 | |
| 13 | 41-6865 | SWITCH - oil pressure | 1 | |
|
10-41-6865 | Сенсор давления масла, Yanmar, кроме 370 / 376 | 9 310 ₽ |
|
|
PP-41-6865 | Сенсор давления масла, Yanmar, кроме 370 / 376 | 2 720 ₽ |
|
| 14 | 44-3018 | SWITCH - water temperature | 1 | |
|
10-44-3018 | Датчик температуры двигателя, Yanmar / Isuzu | 5 830 ₽ |
|
| PP-44-3018 | Датчик температуры двигателя, Yanmar / Isuzu | 2 200 ₽ |
|
|
| 55-5023 | BUSHING - switch | 1 | ||
| 15 | 41-6582 | GLOW PLUG | 3 | |
|
10-41-6582 | Свеча накаливания, Yanmar 249 / 366 / 374 / 388 / 395 | 2 470 ₽ |
|
|
10-42-916 | Свеча накаливания, Yanmar 370 / 376 | 2 340 ₽ |
|
| PP-41-6582 | Свеча накаливания, Yanmar 249 / 366 / 374 / 388 / 395 | 1 190 ₽ |
|
|
| PP-42-916 | Свеча накаливания, Yanmar 370 / 376 | 1 190 ₽ |
|
|
| 16 | 44-7129 | CONNECTOR - glow plug | 1 | |
| 17 | 41-1514 | SWITCH - defrost termination | 1 | |
|
10-41-1514 | Датчик окончания оттайки | 14 220 ₽ |
|
| 55-5636 | SCREW | 2 | ||
| 18 | 44-2823 | SOLENOID (see 90F3) | 1 | |
|
10-44-2823 | Соленоид оборотов двигателя | 5 370 ₽ |
|
| 19 | 99-1275 | PROBE - air switch | 2 | |
| 10-99-1275 | Зонд | 800 ₽ |
|
|
| 55-3136 | RIVET | 2 | ||
| 20 | 99-1142 | HOSE (clear) | A/R | |
| 21 | 99-1143 | HOSE (black) | A/R | |
| 22 | 66-6545 | SWITCH - air | 1 | |
| 55-4560 | NUT | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 91-1730 | BRACKET - pressure differential switch | 1 | ||
| 55-1587 | SCREW - bracket | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 23 | 99-9501 | BOX - power receptacle (see 77B11) | 1 | |
| 24 | 98-4306 | BOX - control | 1 | |
| 25 | 44-8032 | HARNESS - main | 1 | |
| 26 | 45-1316 | CABLE - battery to terminal post (45 ft) | 1 |
