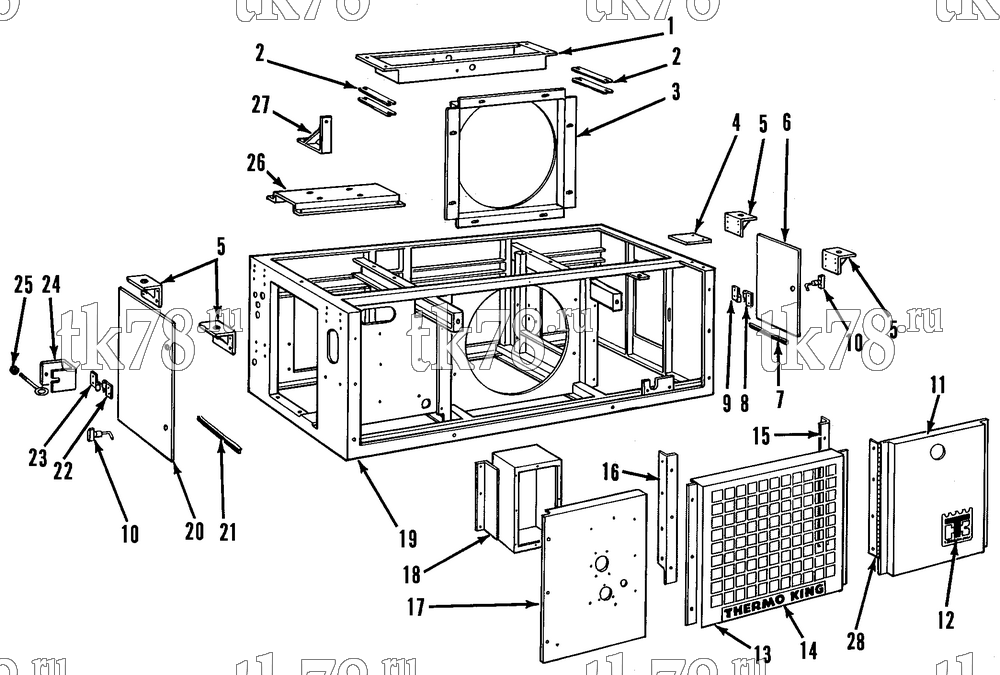

Установкa Thermo King схема STRUCTURAL COMPONENTS – 93E13
Обновление от: 1/24/02
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-2554 | TRAY - motor | 1 | |
| 2 | 99-7403 | SHIM - tray | A/R | |
| 3 | 98-2551 | ORIFICE - condenser fan | 1 | |
| 55-101 | SCREW - orifice | 8 | ||
| 55-2978 | WASHER - dome | 8 | ||
| 55-411 | FLATWASHER | 8 | ||
| 99-3064 | NAMEPLATE - Caution, Fan | 1 | ||
| 4 | 99-7386 | BRACKET - air baffle | 1 | |
| 55-736 | SCREW - bracket | 2 | ||
| 55-5292 | LOCKNUT | 2 | ||
| 5 | 91-8766 | BRACKET - unit | 4 | |
| 55-129 | SCREW - bracket | 18 | ||
| 55-402 | FLATWASHER | 18 | ||
| 55-375 | LOCKWASHER | 18 | ||
| 55-5078 | NUT | 18 | ||
| 55-402 | FLATWASHER | 8 | ||
| 6 | 98-2559 | DOOR - engine | 1 | |
| 7 | 99-6377 | STRIP - bumper | 4 | |
| 8 | 99-7161 | HINGE - door | 2 | |
| 55-2991 | SCREW - hinge | 4 | ||
| 55-2001 | FLATWASHER | 4 | ||
| 55-4560 | LOCKNUT | 4 | ||
| 9 | 99-7140 | HINGE - door (mounted on frame) | 2 | |
| 55-2991 | SCREW - hinge | 4 | ||
| 55-2001 | FLATWASHER | 4 | ||
| 55-4560 | NUT | 4 | ||
| 10 | 99-4963 | LATCH - door | 3 | |
| 99-665 | NUT - latch | 3 | ||
| 11 | 98-2558 | DOOR - coolant tank | 1 | |
| 55-3027 | SCREW - door | 4 | ||
| 55-2001 | FLATWASHER | 4 | ||
| 55-4560 | NUT | 5 | ||
| 55-1587 | SCREW - door closing | 3 | ||
| 55-4510 | WASHER - retaining | 3 | ||
| 55-4742 | WASHER - special | 3 | ||
| 55-3027 | SCREW - door to hinge | 5 | ||
| 55-2001 | FLATWASHER | 10 | ||
| 55-4560 | NUT | 5 | ||
| 12 | 99-7411 | NAMEPLATE - TK logo | 1 | |
| 13 | 98-6215 | GRILLE - condenser | 1 | |
| 14 | 99-1356 | NAMEPLATE - Thermo King | 1 | |
| 55-5130 | RIVET - nameplate | 8 | ||
| 55-1587 | SCREW - grille | 6 | ||
| 55-1800 | LOCKWASHER | 6 | ||
| 55-2086 | FLATWASHER | 6 | ||
| 15 | 99-7379 | ANGLE - grille (left) | 1 | |
| 16 | 99-7378 | ANGLE - grille (right) | 1 | |
| 55-3059 | NUT - captive (angle) | 22 | ||
| 55-4118 | LOCKNUT | 4 | ||
| 17 | Not Used | |||
| 18 | N/A | BOX - high voltage (see 93F3) | 1 | |
| 55-2991 | SCREW - cover to box | 8 | ||
| 19 | 98-3722 | FRAME - condenser | 1 | |
| 20 | 91-1681 | DOOR - compressor | 1 | |
| 21 | 99-6377 | STRIP - bumper | 4 | |
| 22 | 99-7612 | HINGE - door | 2 | |
| 55-3027 | SCREW - hinge | 4 | ||
| 55-2001 | FLATWASHER | 4 | ||
| 55-5292 | LOCKNUT | 4 | ||
| 23 | 99-7139 | HINGE (mounted on frame) | 2 | |
| 55-2991 | SCREW - hinge | 4 | ||
| 55-2001 | FLATWASHER | 4 | ||
| 55-4560 | NUT | 4 | ||
| 24 | 99-7673 | SUPPORT - dehydrator | 1 | |
| 55-5972 | SCREW - bracket | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-4118 | LOCKNUT | 4 | ||
| 25 | 55-4703 | BOLT - eye (dehydrator) | 1 | |
| 55-4118 | LOCKNUT | 1 | ||
| 26 | 98-2555 | BRACKET - compressor | 1 | |
| 27 | 91-1672 | BRACKET - receiver tank | 1 | |
| 55-544 | SCREW - bracket | 2 | ||
| 55-411 | FLATWASHER | 2 | ||
| 28 | 99-9132 | HINGE - door | 1 |
