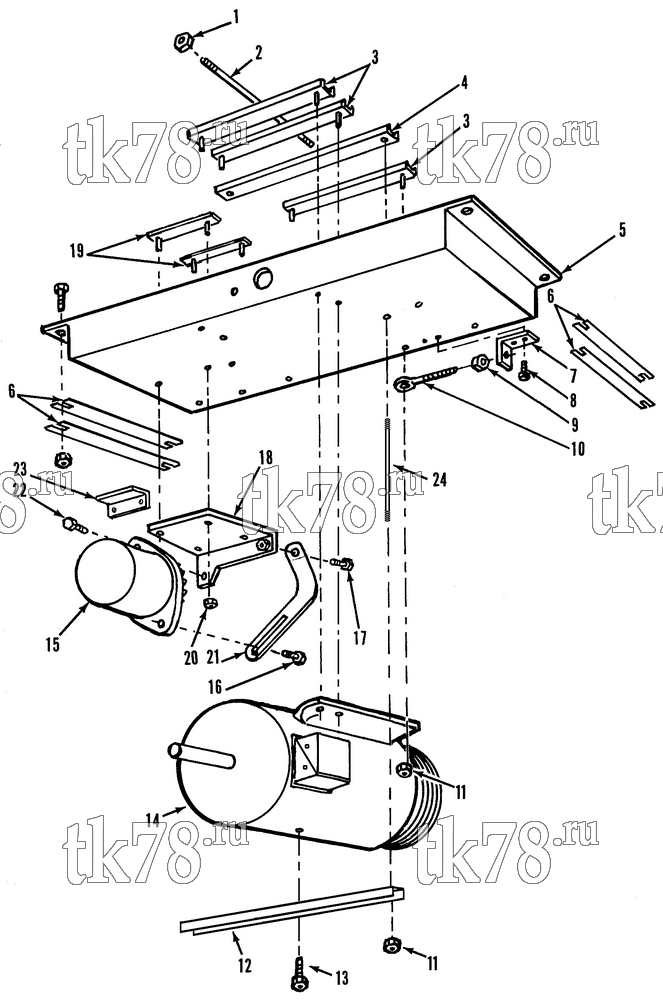

Установкa Thermo King схема MOTOR & ALTERNATOR GROUP – 93E11
Обновление от: 11/7/90
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 55-4118 | LOCKNUT | 2 | |
| 2 | 99-7402 | ROD - keeper | 1 | |
| 3 | 99-7404 | BOLTSTRIP - motor | 3 | |
| 4 | 91-1677 | CHANNEL - nut | 1 | |
| 5 | 98-2554 | TRAY - motor/alternator | 1 | |
| 6 | 99-7403 | SHIM - tray | A/R | |
| 7 | 99-9127 | BRACKET - tension adjustment | 1 | |
| 8 | 55-141 | SCREW - bracket | 2 | |
| 55-4967 | LOCKNUT | 2 | ||
| 9 | 55-287 | NUT - eyebolt | 1 | |
| 10 | 99-541 | BOLT - eye | 1 | |
| 11 | 55-4955 | NUT (stop) | 9 | |
| 55-2641 | FLATWASHER | 9 | ||
| 12 | 91-1678 | CHANNEL - motor | 1 | |
| 13 | 55-5579 | SCREW - strap | 1 | |
| 55-364 | LOCKWASHER | 2 | ||
| 14 | 104-521 | MOTOR (380/460V, 3ph, 50/60 Hz) | 1 | |
| 99-2675 | NAMEPLATE - arrow | 1 | ||
| 99-3195 | NAMEPLATE - 208/230 Volt | 1 | ||
| 99-2664 | NAMEPLATE - 380VAC 50 Hz/460VAC 60 Hz | 1 | ||
| 44-3651 | GRIP - cable | 1 | ||
| 33-144 | O-RING - grip | 1 | ||
| 55-2242 | NUT - grip | 1 | ||
| 44-2861 | CABLE - motor (50 ft) | A/R | ||
| 15 | 44-6981 | ALTERNATOR (72 amp, see 74A12) | 1 | |
| 16 | 55-2969 | SCREW - alternator adjusting | 1 | |
| 55-2769 | WASHER - special | 1 | ||
| 55-371 | FLATWASHER | 1 | ||
| 55-790 | LOCKWASHER | 1 | ||
| 17 | 55-2969 | SCREW - arm | 1 | |
| 55-2769 | WASHER - special | 1 | ||
| 55-790 | LOCKWASHER | 1 | ||
| 18 | 91-1680 | BRACKET - alternator | 1 | |
| 19 | 99-7472 | BOLTSTRIP - alternator bracket | 2 | |
| 20 | 55-4967 | LOCKNUT - bracket | 4 | |
| 21 | 99-7409 | ARM - alternator | 1 | |
| 22 | 55-1417 | SCREW - alternator | 1 | |
| 30-55-1417 | Болт поддона компрессора | 700 ₽ |
|
|
| 55-402 | FLATWASHER | 2 | ||
| 55-5078 | NUT | 1 | ||
| 23 | 99-9120 | BRACKET - alternator | 1 | |
| 24 | 91-1679 | ROD - motor | 2 |
