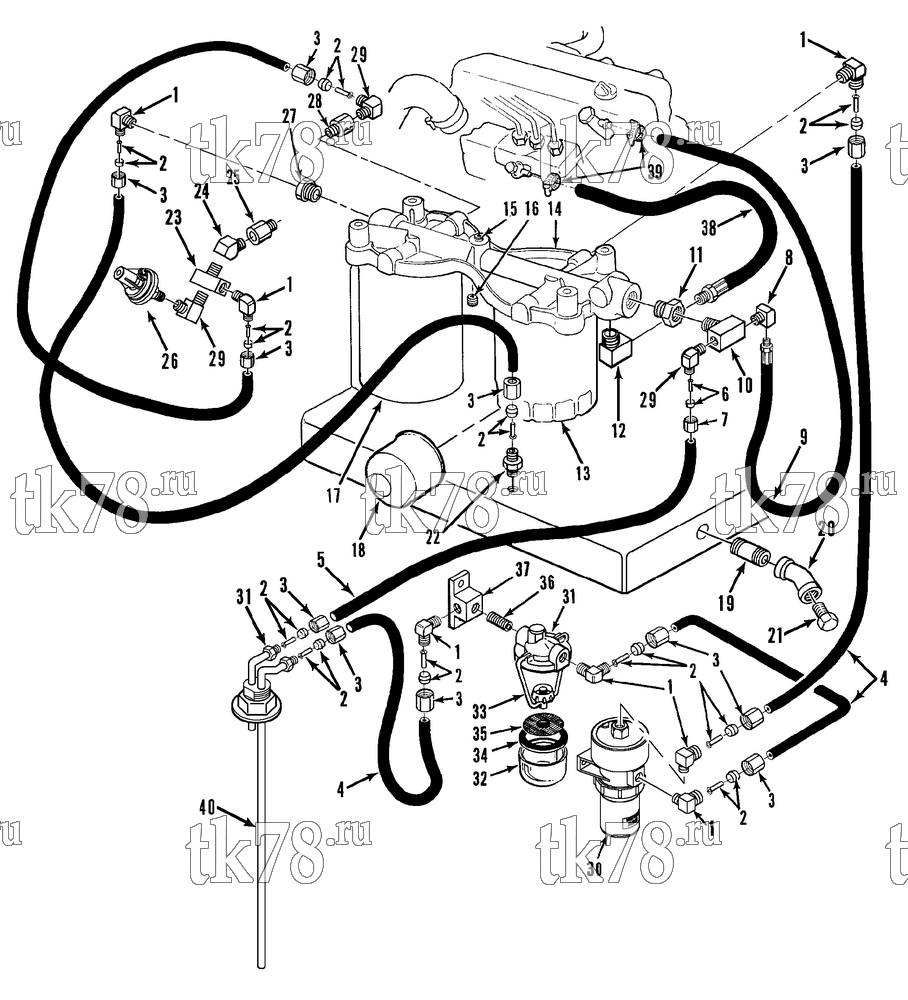

Установкa Thermo King схема FUEL & OIL FILTERS, HOSES & FITTINGS – 92F12
Обновление от: 4/26/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 11-4380 | ELBOW - hose fitting (3/8) | 8 | |
|
P-40-00342-02 | Фитинг топливной магистрали | 1 040 ₽ |
|
| 2 | 10-242 | KIT - sleeve & eyelet (3/8) | 8 | |
|
|
P-40-00342-02 | Фитинг топливной магистрали | 1 040 ₽ |
|
| 3 | 11-4941 | NUT (3/8) | 8 | |
| 4 | 11-4372 | HOSE (3/8 od x 35 ft lg) | A/R | |
| 5 | 11-4367 | HOSE (1/4 od x 35 ft lg) | A/R | |
| 6 | 10-243 | KIT - sleeve & eyelet (1/4) | 1 | |
| 7 | 11-4841 | NUT (1/4) | 1 | |
| 8 | 55-2505 | ELBOW | 1 | |
| 9 | 11-5228 | HOSE | 1 | |
| 10 | 55-1654 | TEE | 1 | |
| 11 | 55-4799 | BUSHING | 1 | |
| 12 | 55-4244 | ELBOW | 1 | |
| 13 | 11-9098 | FILTER - fuel | 1 | |
|
11-9341 OEM | Фильтр топливный EMI 2000, MD/RD/KD/T-Series | 2 680 ₽ |
|
|
US-11-9341 | Фильтр топливный, MD/RD/KD/T-Series | 1 840 ₽ |
|
|
10-11-9341 | Фильтр топливный, MD/RD/KD/T-Series | 1 090 ₽ |
|
| 55-3168 | ADAPTER - fuel pickup | 1 | ||
| 14 | 11-5941 | BRACKET - fuel filter | 1 | |
| 55-2962 | SCREW - bracket | 4 | ||
| 55-2958 | FLATWASHER | 8 | ||
| 55-2959 | LOCKWASHER | 4 | ||
| 55-2114 | NUT | 4 | ||
| 15 | 55-433 | PLUG - pipe | 1 | |
| 16 | 55-1004 | PLUG - pipe | 1 | |
| 17 | 11-6228 | FILTER - oil bypass | 1 | |
|
11-9321 OEM | Фильтр масляный EMI 2000, MD/RD/KD/T-Series | 2 860 ₽ |
|
|
10-11-9321 | Фильтр масляный, MD/RD/KD/T-Series | 720 ₽ |
|
| 55-3164 | STUD - bypass filter | 1 | ||
| 18 | 11-6182 | FILTER - oil (full flow) | 1 | |
|
11-6182 OEM | Фильтр масляный, Yanmar кроме 4XX, MD/RD/KD/T-Series | 2 820 ₽ |
|
|
US-11-6182 | Фильтр масляный, Yanmar кроме 4XX, MD/RD/KD/T-Series | 1 200 ₽ |
|
|
10-11-6182 | Фильтр масляный, Yanmar кроме 4XX, MD/RD/KD/T-Series | 630 ₽ |
|
| 19 | 55-662 | NIPPLE - oil drain | 1 | |
| 20 | 55-5950 | ELBOW - oil drain | 1 | |
| 21 | 55-193 | PLUG - oil drain | 1 | |
| 22 | 55-4515 | CONNECTOR - oil base | 1 | |
| 23 | 55-665 | TEE | 2 | |
| 24 | 55-1653 | ELBOW | 1 | |
| 25 | 11-4984 | ADAPTER - engine | 1 | |
| 26 | 41-6865 | SWITCH - oil pressure | 1 | |
|
10-41-6865 | Сенсор давления масла, Yanmar, кроме 370 / 376 | 9 310 ₽ |
|
|
PP-41-6865 | Сенсор давления масла, Yanmar, кроме 370 / 376 | 2 720 ₽ |
|
| 27 | 55-2539 | BUSHING | 1 | |
| 28 | 11-9595 | FITTING - restricted | 1 | |
| 29 | 55-2505 | ELBOW | 3 | |
| 30 | 41-7059 | PUMP - fuel (12V) | 1 | |
|
30-66840-00 OEM | Топливный насос подкачки | 22 450 ₽ |
|
|
US-41-7059 | Топливный насос подкачки | 19 340 ₽ |
|
| P-30-01108-12 | Топливный насос подкачки, HP | 8 390 ₽ |
|
|
|
10-41-7059-HP | Топливный насос подкачки, HP | 7 920 ₽ |
|
| 10-376 | KIT - filter (diesel) | 1 | ||
| 10-378 | KIT - bowl & gasket | 1 | ||
| 33-4256 | GASKET - bowl to body | 1 | ||
| 10-273 | KIT - filter (for 41-2640 fuel pump) | 1 | ||
| 33-1676 | GASKET - fuel pump (for 41-2638 fuel pump) | 1 | ||
| 92-5656 | BRACKET - fuel filter & pump | 1 | ||
| 31 | 11-6180 | PREFILTER | 1 | |
| 11-4956 | HEAD - filter | 1 | ||
| 32 | 10-299 | KIT - bowl & filter | 1 | |
| 33 | 11-4957 | BAIL - filter | 1 | |
| 11-4958 | NUT - bail | 1 | ||
| 34 | 33-2464 | GASKET | 1 | |
| 35 | 11-4880 | ELEMENT - filter | 1 | |
| 36 | 55-4512 | NIPPLE | 1 | |
| 37 | 55-4496 | FLANGE | 1 | |
| 38 | 11-7013 | HOSE | 1 | |
| 39 | 55-2796 | CLAMP - fuel hose | 2 | |
| 40 | 11-9279 | TUBE - fuel pickup | 1 | |
| 33-4402 | GASKET - fuel pickup (rubber) | 1 |
