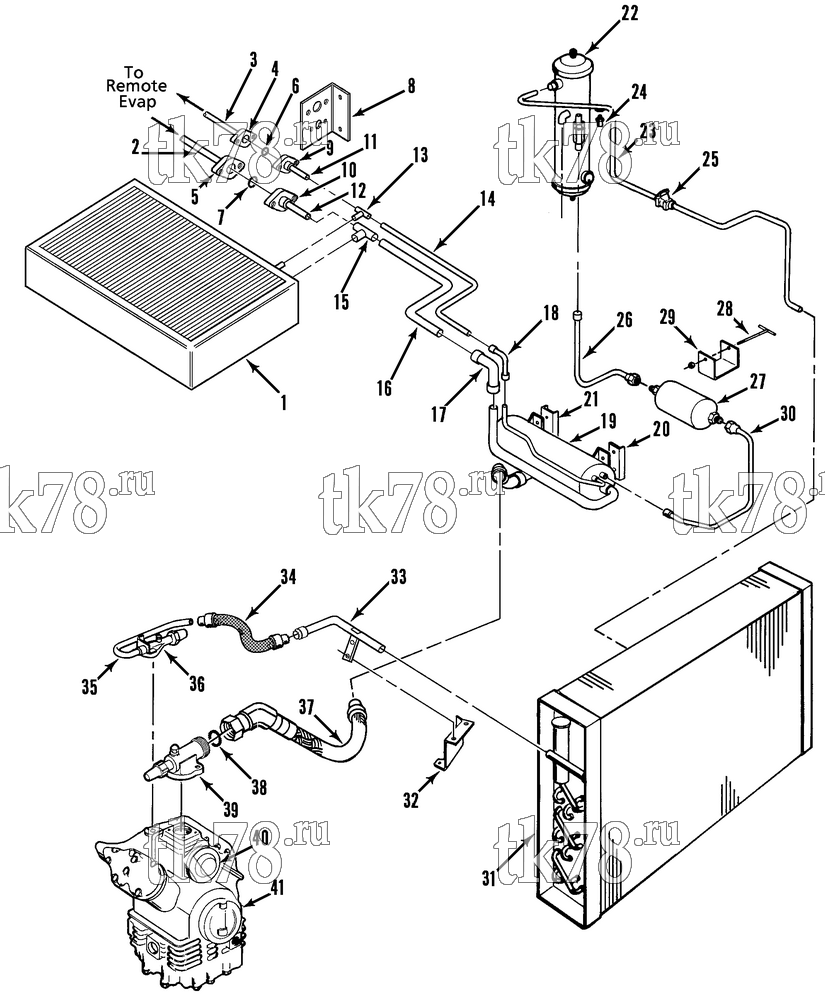

Установкa Thermo King схема REFRIGERATION COMPONENTS – 92B14
Обновление от: 11/16/00
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-3714 | FRAME - evaporator | 1 | |
| 2 | 67-711 | TUBE (3/4) | A/R | |
| 3 | 67-712 | TUBE (3/8) | A/R | |
| 4 | 66-266 | FLANGE - liquid | 1 | |
| 5 | 66-2848 | FLANGE - suction | 1 | |
| 6 | 33-727 | O-RING (15/16) | 1 | |
| 7 | 33-728 | O-RING (1-5/8) | 1 | |
| 33-728 OEM | Прокладка фланца компрессора, SB/URD-III / UT-800/1200 | 300 ₽ |
|
|
| 8 | 91-1630 | BRACKET - tube | 1 | |
| 55-3018 | SCREW - bracket | 4 | ||
|
20-55-3018 | Болт | 540 ₽ |
|
| 55-2086 | FLATWASHER | 8 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 55-5953 | NUT | 4 | ||
| 9 | 66-2233 | FLANGE - liquid line | 1 | |
| 55-2182 | BUSHING | 1 | ||
| 10 | 66-2847 | FLANGE - suction | 1 | |
| 55-3554 | SCREW (1/2) | 2 | ||
| 55-2173 | FLATWASHER | 4 | ||
| 55-2159 | LOCKWASHER | 2 | ||
| 55-2166 | NUT | 2 | ||
| 55-4155 | SCREW (5/16) | 2 | ||
| 55-2958 | FLATWASHER | 4 | ||
| 55-2959 | LOCKWASHER | 2 | ||
| 55-2114 | NUT | 2 | ||
| 11 | 66-5529 | TUBE - liquid | 1 | |
| 12 | 66-5527 | TUBE - suction | 1 | |
| 13 | 55-2181 | TEE | 1 | |
| 14 | 66-5530 | TUBE - liquid | 1 | |
| 15 | 66-5308 | TEE | 1 | |
| 16 | 66-5528 | TUBE - suction | 1 | |
| 17 | 66-3390 | TUBE - evaporator to accumulator tank | 1 | |
| 18 | 66-3387 | TUBE - accumulator to bulkhead | 1 | |
| 19 | 67-750 | TANK - accumulator | 1 | |
| 66-3400 | TUBE - suction bypass (accumulator to heat exchanger) | 1 | ||
| 20 | 99-6012 | SUPPORT (front) | 1 | |
| 21 | 99-6013 | SUPPORT (rear) | 1 | |
| 55-3048 | SCREW - tank | 5 | ||
| 55-2641 | FLATWASHER | 10 | ||
| 55-4955 | NUT | 5 | ||
| 22 | 67-1189 | TANK - receiver (see 57B3) | 1 | |
|
10-67-1189 | Бак фреона, KD/MD/RD/TD/URD | 16 670 ₽ |
|
| 23 | 66-3734 | TUBE - condenser to receiver tank | 1 | |
| 66-4517 | TUBE - valve to receiver | 1 | ||
| 66-4518 | TUBE - condenser to valve | 1 | ||
| 24 | 55-3295 | FITTING - valve (relief) | 1 | |
| 66-7392 | VALVE - relief | 1 | ||
|
10-66-7392 | Предохранительный клапан | 3 480 ₽ |
|
| PP-66-7392 | Предохранительный клапан | 1 730 ₽ |
|
|
| 33-1015 | O-RING | 1 | ||
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 25 | 66-3655 | VALVE - check (see 9G12) | 1 | |
| 26 | 66-4943 | TUBE - receiver to dehydrator | 1 | |
| 27 | 66-4900 | DEHYDRATOR | 1 | |
|
10-66-4900 | Дегидратор, SB-II/III | 3 610 ₽ |
|
| 28 | 55-4703 | BOLT - eye | 1 | |
| 55-2086 | FLATWASHER | 1 | ||
| 55-4953 | NUT - flexlock | 1 | ||
| 29 | 99-7673 | SUPPORT - dehydrator | 1 | |
| 55-1587 | SCREW - bracket | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-4953 | NUT | 2 | ||
| 30 | 66-3736 | TUBE - dehydrator to accumulator | 1 | |
| 31 | 67-759 | COIL - condenser/radiator | 1 | |
| 32 | 99-6888 | BRACKET - 3-way valve | 1 | |
| 55-2969 | SCREW - bracket (5/16) | 1 | ||
| 55-2958 | FLATWASHER | 1 | ||
| 55-1587 | SCREW - bracket (1/4) | 1 | ||
| 55-1800 | LOCKWASHER | 1 | ||
| 33 | 91-1637 | TUBE & BRACE | 1 | |
| 55-2186 | COUPLING | 1 | ||
| 34 | 66-1224 | VIBRASORBER - discharge | 1 | |
|
10-66-1224 | Вибросорбер нагнетания, SB-I/II | 11 620 ₽ |
|
| 66-3405 | TUBE - 3-way valve to vibrasorber | 1 | ||
| 35 | 66-3470 | TUBE - discharge | 1 | |
| 36 | 66-3942 | VALVE - discharge | 1 | |
| 99-6192 | BRACKET - discharge valve | 1 | ||
| 37 | 66-4944 | VIBRASORBER - suction | 1 | |
| 38 | 33-1490 | O-RING | 1 | |
| 39 | 66-4546 | VALVE - suction (see 90A13) | 1 | |
|
10-66-4546 | Резьбовой клапан (Threaded Service Valve) | 15 910 ₽ |
|
| 40 | 66-5933 | VALVE - throttling | 1 | |
| 41 | 102-666 | COMPRESSOR - X426 (see 90A13) | 1 |
