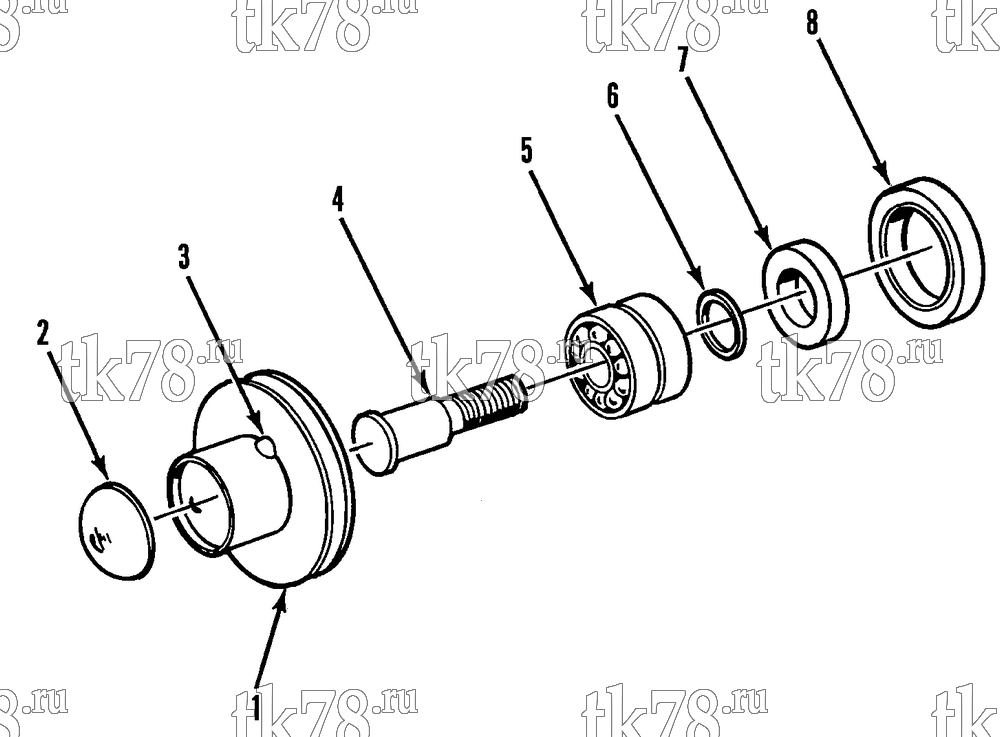

Установкa Thermo King схема IDLER PULLEY ASSEMBLY – 91F13
Обновление от: 3/7/96
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 77-1137 | PULLEY - idler | 1 | |
| 77-1164 | PULLEY (only) | 1 | ||
| 2 | 55-4004 | CAP - end (expansion type) | 1 | |
| 3 | 55-219 | SCREW - set | 1 | |
| 4 | 77-1163 | SHAFT & BEARING | 1 | |
| 5 | 77-2389 | BEARING - only | 1 | |
| 77-2389 OEM | Подшипник | 4 430 ₽ |
|
|
| 10-77-2389 | Подшипник промежуточного вала SMX / SL | 2 140 ₽ |
|
|
| 6 | 33-566 | O-RING | 1 | |
| 7 | 55-4801 | BUSHING - shaft | 1 | |
| 8 | 33-1039 | SEAL - oil & grease | 1 | |
| 203-394 | GREASE (1 lb) | A/R | ||
| 55-2166 | NUT - pulley (1/2-13) | 1 | ||
| 55-2173 | FLATWASHER (1/2) | 1 | ||
| 55-2159 | LOCKWASHER (1/2) | 1 | ||
| 203-392 | SEALER - antiseize | A/R |
