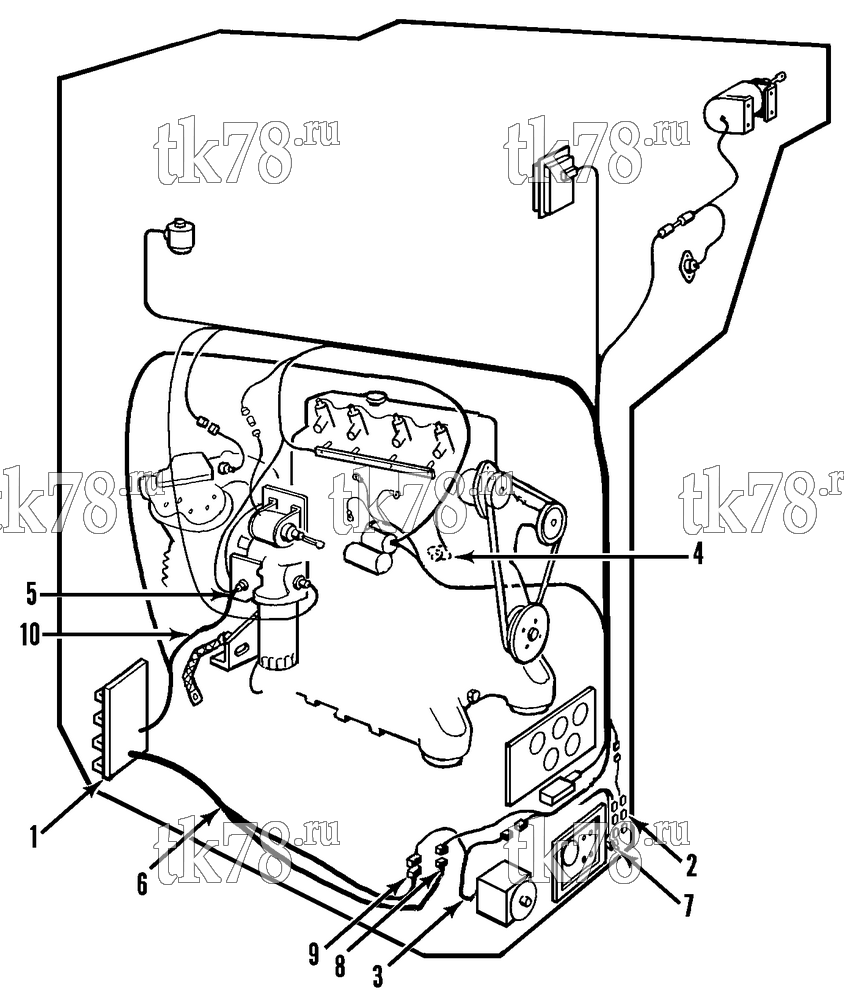

Установкa Thermo King схема START/STOP COMPONENTS (CYCLE SENTRY) – 91F11
Обновление от: 4/16/96
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 44-7246 | BOARD - Cycle Sentry II (see 77F11) | 1 | |
|
10-44-7246 | Плата, CS-II with Buzzer | 28 560 ₽ |
|
| 2 | 99-8810 | NAMEPLATE - switch & light | 1 | |
| 3 | 44-7214 | HARNESS - thermostat (w/ C/S, w/o FS, see 78A11) | 1 | |
| 44-7357 | HARNESS - thermostat (w/ C/S & FS see 78A11) | 1 | ||
| 4 | 44-6018 | THERMOSTAT - temperature | 1 | |
| 30-44-6018 | Выключатель температурный | 15 030 ₽ |
|
|
| 55-3134 | SCREW - sensor | 2 | ||
| 55-3233 | LOCKWASHER | 2 | ||
| 99-8592 | PLATE - sensor | 1 | ||
| 55-5090 | SCREW - plate | 1 | ||
| 55-790 | LOCKWASHER | 1 | ||
| 55-4613 | FLATWASHER | 1 | ||
| 44-6019 | BOLT - thermistor | 1 | ||
|
10-44-6019 | Термистор | 4 880 ₽ |
|
| 44-5620 | CONNECTOR (2-pin) | 1 | ||
| 44-6453 | TERMINAL | 2 | ||
| 55-364 | LOCKWASHER (7/16) | 1 | ||
| 5 | 44-9298 | SENSOR - rpm | 1 | |
|
10-44-9298 | Датчик оборотов двигателя | 14 400 ₽ |
|
|
PP-44-9298 | Датчик оборотов двигателя | 2 760 ₽ |
|
| 6 | 44-7312 | HARNESS - switch & light (w/ TG IV) | 1 | |
| 44-9075 | HARNESS - switch & light (w/ TG V) | 1 | ||
| 44-8486 | HARNESS - switch & light (PE, w/ TG IV) | 1 | ||
| 7 | 44-709 | SWITCH - start/stop mode | 1 | |
|
10-44-709 | Выключатель четырехполюсный | 5 130 ₽ |
|
| 44-6462 | SOCKET - light | 2 | ||
| 44-3711 | BULB - light | 2 | ||
| 8 | 44-5600 | CONNECTOR (6-pin) | 1 | |
| 9 | 44-5719 | CONNECTOR (8-pin) | 1 | |
| 10 | 44-6517 | HARNESS - engine (Cycle Sentry,TG IV) | 1 | |
| 44-9076 | HARNESS - Cycle Sentry to engine (TG V) | 1 | ||
| 44-9618 | HARNESS - Cycle Sentry to engine (PE) | 1 |
