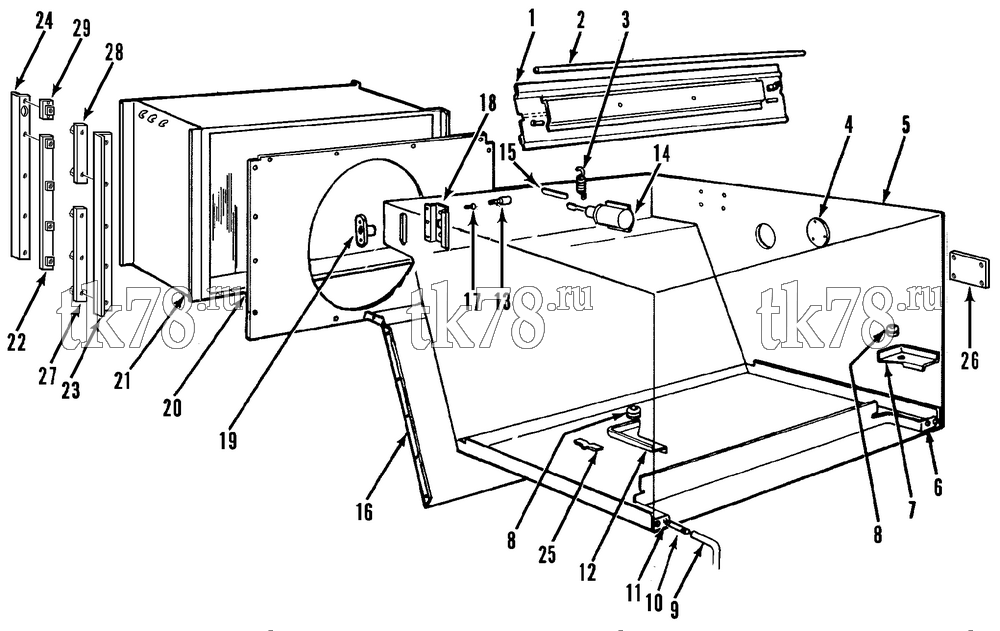

Установкa Thermo King схема EVAPORATOR GROUP – 90B5
Обновление от: 12/9/98
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 99-3268 | BLADE - damper | 1 | |
| 2 | 91-197 | TUBE - damper | 1 | |
| 55-5215 | SCREW | 4 | ||
| 55-2201 | FLATWASHER | 4 | ||
| 55-4223 | NUT | 4 | ||
| 3 | 99-317 | SPRING - damper blade | 2 | |
|
10-99-317 | Пружина | 500 ₽ |
|
| 4 | 99-2235 | COVER - plate | 1 | |
| 55-3561 | SCREW - cover | 9 | ||
| 5 | 98-2741 | HOUSING - evaporator | 1 | |
| 6 | 99-1702 | BLOCK - drain | 1 | |
| 7 | 99-1699 | PLATE - evaporator drain | 1 | |
| 55-1714 | RIVET - plate | 2 | ||
| 8 | 33-428 | GROMMET (1/2 id) | 2 | |
| 9 | 99-2230 | HOSE - drain | 2 | |
| 10 | 99-3091 | PIPE - drain | 2 | |
| 11 | 99-1836 | BLOCK - drain tube | 1 | |
| 12 | 99-1701 | PLATE - evaporator drain | 1 | |
| 55-1714 | RIVET - plate | 2 | ||
| 13 | 90-165 | STOP - shutter blade | 2 | |
| 99-2496 | EXTENSION - damper stop | 2 | ||
| 14 | 44-2823 | SOLENOID | 1 | |
|
10-44-2823 | Соленоид оборотов двигателя | 5 370 ₽ |
|
| 91-3095 | BOOT - cover | 1 | ||
|
10-91-3095 | Крышка плунжера соленоида оборотов двигателя | 1 890 ₽ |
|
| 55-2762 | BOLT - eye | 1 | ||
|
10-55-2762 | Шток | 1 050 ₽ |
|
| 44-2756 | DIODE | 1 | ||
|
10-44-2756 | Диод соленоида тяги | 1 920 ₽ |
|
| 44-7096 | HARNESS - ground | 1 | ||
| 55-2129 | SCREW - solenoid | 4 | ||
| 55-411 | FLATWASHER | 4 | ||
| 55-366 | LOCKWASHER | 4 | ||
| 55-291 | NUT | 4 | ||
| 15 | 99-1794 | STRAP - shutter | 1 | |
| 60-127 | KIT - damper linkage | 1 | ||
| 99-837 | SPACER - damper stop | 2 | ||
| 55-3027 | SCREW - spacer | 2 | ||
| 55-2001 | FLATWASHER | 4 | ||
| 55-2996 | LOCKWASHER | 4 | ||
| 55-4560 | NUT | 2 | ||
| 16 | 98-753 | PANEL - evaporator | 1 | |
| 55-3561 | SCREW - panel | 10 | ||
| 55-3404 | SCREW - panel | 4 | ||
| 55-2201 | FLATWASHER | 4 | ||
| 55-2202 | LOCKWASHER | 4 | ||
| 55-2990 | NUT | 4 | ||
| 17 | 55-1510 | SCREW - bearing | 8 | |
| 18 | 99-2325 | SUPPORT - bearing | 2 | |
| 55-2129 | SCREW - support | 4 | ||
| 55-4953 | NUT | 4 | ||
| 19 | 99-6565 | BEARING - damper | 2 | |
|
10-99-6565 | Демпфер | 1 040 ₽ |
|
| 55-5675 | WASHER - special | 2 | ||
| 20 | 98-2544 | ORIFICE - evaporator motor | 1 | |
| 55-2977 | SCREW - orifice | 16 | ||
| 55-3045 | WASHER - dome | 16 | ||
| 55-2816 | NUT - captive | 16 | ||
| 21 | 67-1452 | COIL - evaporator | 1 | |
| 33-314 | GROMMET (5/16 id) | 1 | ||
| 33-740 | GROMMET (7/16 id) | 2 | ||
| 22 | 99-1249 | NUTSTRIP | 4 | |
| 55-2988 | RIVET - nutstrip | 2 | ||
| 23 | 99-6043 | FLANGE (front) | 1 | |
| 24 | 99-6044 | FLANGE (rear) | 1 | |
| 55-2977 | SCREW - flange | 10 | ||
| 55-3027 | SCREW - flange | 20 | ||
| 55-2001 | FLATWASHER | 40 | ||
| 55-4560 | NUT | 20 | ||
| 25 | 99-6353 | CLAMP | 2 | |
| 55-145 | SCREW - clamp | 2 | ||
| 55-411 | FLATWASHER | 2 | ||
| 55-366 | LOCKWASHER | 2 | ||
| 26 | 99-6349 | PLATE - switch | 1 | |
| 27 | 99-2972 | NUTSTRIP - evaporator | 1 | |
| 28 | 91-5962 | NUTSTRIP - evaporator | 1 | |
| 29 | 99-7753 | NUTSTRIP - evaporator | 1 |
