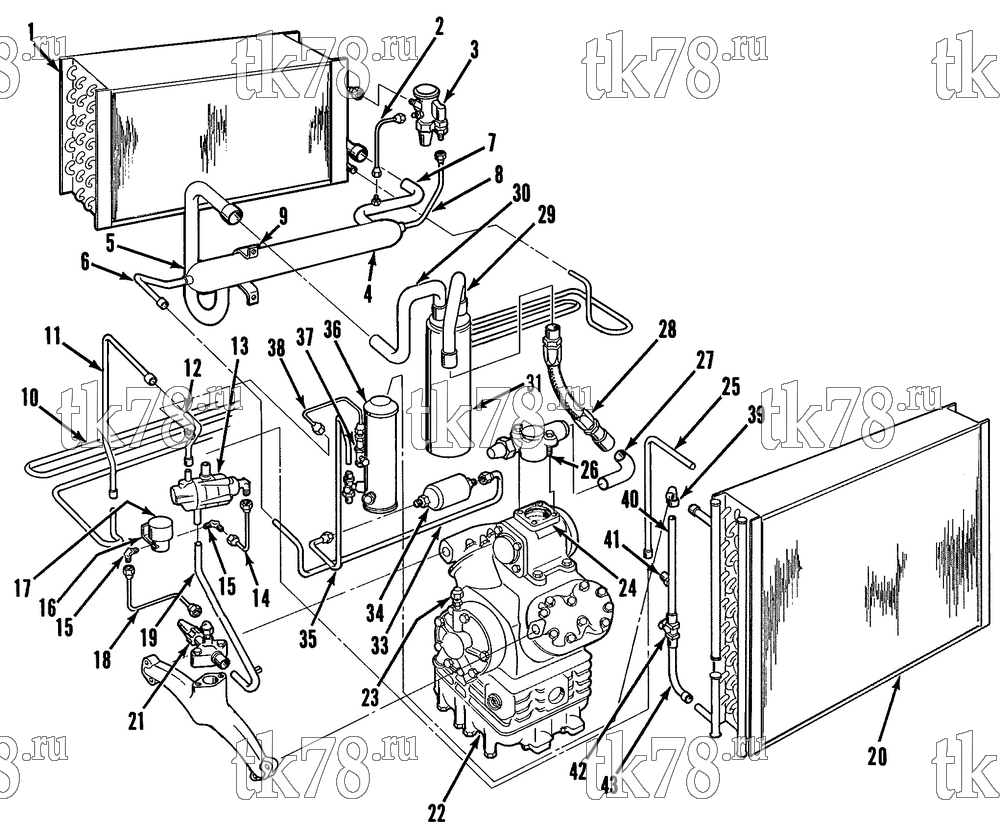

Установкa Thermo King схема REFRIGERATION COMPONENTS – 90B4
Обновление от: 3/19/01
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-1452 | COIL - evaporator (see 90B5) | 1 | |
| 2 | 66-3199 | TUBE - equalizer | 1 | |
| 3 | 66-4438 | VALVE - expansion (see 90B9) | 1 | |
| 66-3650 | ELEMENT - power | 1 | ||
| 66-9379 | SCREEN - inlet | 1 | ||
| 4 | 67-572 | TANK - heat exchanger (incl 5, 6, 7, 8) | 1 | |
| 5 | 66-3224 | TUBE - suction line | 1 | |
| 6 | 66-3225 | TUBE - liquid line | 1 | |
| 7 | 66-3222 | TUBE - coil to exchanger | 1 | |
| 66-874 | FITTING - equalizer | 1 | ||
| 8 | 66-3223 | TUBE - exchanger to expansion | 1 | |
| 9 | 99-978 | CLAMP - heat exchanger | 2 | |
| 99-3588 | BOLTSTRIP - clamp | 2 | ||
| 55-366 | LOCKWASHER | 4 | ||
| 55-4953 | NUT | 4 | ||
| 10 | 67-291 | TUBE - defrost | 1 | |
| 99-6353 | CLAMP - defrost tube | 2 | ||
| 55-1587 | SCREW - clamp | 2 | ||
| 55-2699 | LOCKWASHER | 2 | ||
| 11 | 66-1490 | TUBE - bulkhead to defrost | 1 | |
| 99-6353 | CLAMP - defrost tube | 2 | ||
| 12 | 66-2515 | TUBE - 3-way to evaporator | 1 | |
| 66-874 | FITTING - saddle | 1 | ||
| 13 | 66-4975 | VALVE - 3-way (see 86G5) | 1 | |
| 55-214 | SCREW - valve | 2 | ||
| 55-366 | LOCKWASHER | 2 | ||
| 55-411 | FLATWASHER | 2 | ||
| 14 | 66-5524 | TUBE - valve to solenoid | 1 | |
| 15 | 55-308 | ELBOW | 2 | |
| 16 | 91-5977 | BRACKET - solenoid valve | 1 | |
| 17 | 66-5316 | VALVE - pilot solenoid | 1 | |
| 41-1525 | COIL - valve | 1 | ||
|
10-41-1525 | Катушка соленоида, 12V 8W | 15 030 ₽ |
|
| 55-1339 | SCREW - valve | 2 | ||
| 55-5761 | LOCKWASHER | 2 | ||
| 55-8786 | NUT - valve | 1 | ||
| 18 | 66-5525 | TUBE - solenoid to throttling valve | 1 | |
| 19 | 66-5431 | TUBE - discharge to 3-way (NWE MAX) | 1 | |
| 66-7128 | TUBE - discharge to 3-way (NWE MAX II) | 1 | ||
| 66-5752 | FITTING | 1 | ||
| 20 | 67-926 | COIL - condenser (see 90B3) | 1 | |
| 21 | 66-3942 | VALVE - discharge (see 90B6) | 1 | |
| 22 | N/A | COMPRESSOR - X430 (see 90B6) | 1 | |
| 23 | 11-2886 | VALVE (Schrader) | 1 | |
| 24 | 66-5930 | VALVE - throttling (see 70E11) | 1 | |
| 25 | 66-2507 | TUBE - 3-way to condenser | 1 | |
| 26 | 66-5318 | VALVE - suction (see 90B6) | 1 | |
| 66-5318 OEM | Всасывающий клапан X426/430/640 | 42 100 ₽ |
|
|
|
10-66-5318 | Всасывающий клапан X426/430/640 | 28 770 ₽ |
|
| 27 | 66-3335 | TUBE - suction valve | 1 | |
| 28 | 66-1238 | VIBRASORBER - suction | 1 | |
| 29 | 66-3337 | TUBE - outlet | 1 | |
| 30 | 66-3338 | TUBE - inlet | 1 | |
| 31 | 67-927 | TANK - accumulator | 1 | |
| 99-5907 | BOLTSTRIP - accumulator | 2 | ||
| 55-371 | FLATWASHER | 4 | ||
| 55-4967 | NUT | 4 | ||
| 32 | Not Used | |||
| 33 | 66-3339 | TUBE - dehydrator to exchanger | 1 | |
| 34 | 66-4900 | DEHYDRATOR (see 90B8) | 1 | |
|
10-66-4900 | Дегидратор, SB-II/III | 3 610 ₽ |
|
| 35 | 66-5432 | TUBE - dehydrator to receiver | 1 | |
| 36 | 67-1179 | TANK - receiver (see 90B7) | 1 | |
| 37 | 66-5501 | VALVE - check | 1 | |
| 38 | 66-3341 | TUBE - bypass (check valve) | 1 | |
| 39 | 55-3441 | ELBOW | 1 | |
| 40 | 66-3342 | TUBE - valve to receiver | 1 | |
| 99-3060 | FITTING - saddle | 1 | ||
| 41 | 66-7392 | VALVE - relief | 1 | |
|
10-66-7392 | Предохранительный клапан | 3 480 ₽ |
|
| PP-66-7392 | Предохранительный клапан | 1 730 ₽ |
|
|
| 33-1015 | O-RING | 1 | ||
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 42 | 66-3644 | VALVE - check (see 9G12) | 1 | |
| 43 | 66-3343 | TUBE - valve to coil | 1 |
