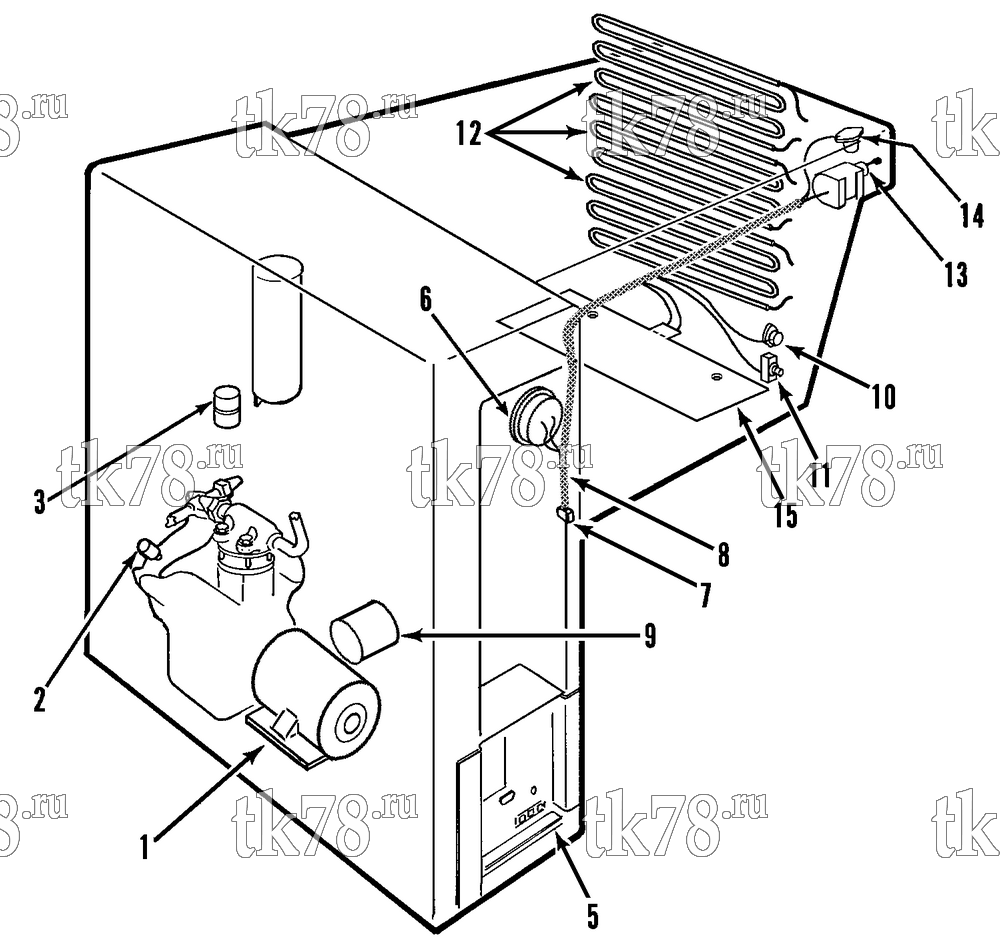

Установкa Thermo King схема ELECTRICAL COMPONENTS – 90B10
Обновление от: 8/25/08
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 104-564 | MOTOR - compressor drive (see 90B1) | 1 | |
| 2 | 44-8064 | SWITCH - hpco | 1 | |
|
44-8064 OEM | Датчик HP, V-Series | 9 100 ₽ |
|
|
10-44-8064 | Датчик HP, V-Series | 4 630 ₽ |
|
| 203-393 | SEALER - thread | A/R | ||
| 3 | 66-5316 | VALVE - pilot solenoid | 1 | |
| 41-1525 | COIL - valve | 1 | ||
|
10-41-1525 | Катушка соленоида, 12V 8W | 15 030 ₽ |
|
| 55-8786 | NUT - valve | 1 | ||
| 4 | Not Used | |||
| 5 | NSS | BOX - control (see 90B14) | 1 | |
| 6 | 66-2020 | SWITCH - air pressure differential (see 46C12) | 1 | |
|
P-12-01039-08 | Выключатель размораживания, Maxima/Supra/ Vector 1350/1550/18XX/19XX | 16 490 ₽ |
|
| 7 | 44-8294 | CONNECTOR - shroud (6-pin) | 1 | |
| 8 | 44-8407 | HARNESS - evaporator | 1 | |
| 9 | 104-519 | MOTOR - fan drive (see 90B13) | 1 | |
| 10 | 41-1514 | SWITCH - defrost termination | 1 | |
|
10-41-1514 | Датчик окончания оттайки | 14 220 ₽ |
|
| 11 | 44-7892 | SWITCH - high temperature limit | 1 | |
| 55-3459 | SCREW - switch | 4 | ||
| 55-715 | LOCKWASHER | 4 | ||
| 12 | 45-1361 | HEATER - evaporator (see 90B11) | 3 | |
| 13 | 44-2823 | SOLENOID - evaporator damper (see 90B5) | 1 | |
|
10-44-2823 | Соленоид оборотов двигателя | 5 370 ₽ |
|
| 14 | 44-3627 | SWITCH - high temperature cutout (see 90B11) | 1 | |
| 15 | 44-8408 | HEATER - drain pan | 1 |
