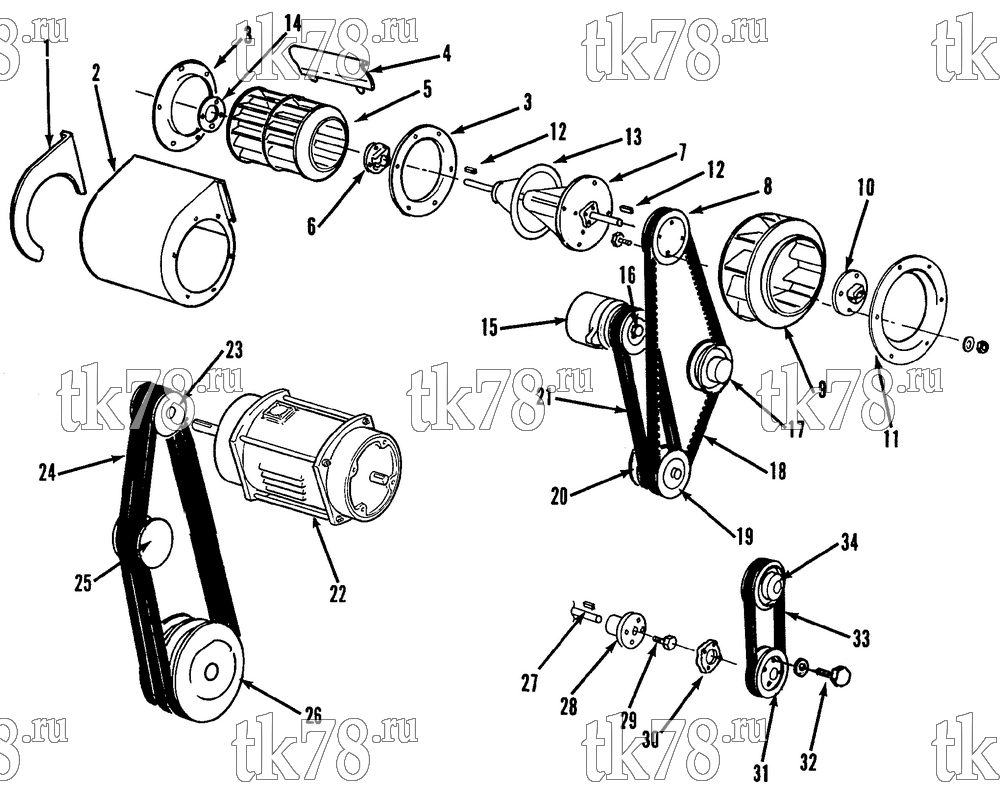

Установкa Thermo King схема FANS & BELTS GROUP (SB-II 50 EMEIA) – 89E4
Обновление от: 4/5/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-2737 | PANEL - evaporator blower housing (top) | 1 | |
| 55-2977 | SCREW - panel | 6 | ||
| 55-1800 | LOCKWASHER | 6 | ||
| 55-2086 | FLATWASHER | 6 | ||
| 2 | 98-2738 | HOUSING - evaporator blower | 1 | |
| 3 | 98-3581 | ORIFICE - evaporator inlet | 2 | |
| 55-1587 | SCREW - orifice | 8 | ||
| 55-3045 | WASHER - dome (ss) | 8 | ||
| 55-3059 | NUT - captive | 8 | ||
| 4 | 99-7962 | MEMBER - evaporator blower housing | 1 | |
| 5 | 70-218 | WHEEL - blower (evaporator, complete) | 1 | |
| 6 | 77-2208 | HUB - blower | 1 | |
| 99-4353 | RING | 1 | ||
| 55-2969 | SCREW (5/16-18 x 1) | 4 | ||
| 55-8974 | SCREW (5/16-18 x 1-3/4) | 2 | ||
| 55-2959 | LOCKWASHER | 2 | ||
| 55-2958 | FLATWASHER | 2 | ||
| 7 | 78-706 | FANSHAFT - assembly (see 84E5) | 1 | |
| 55-1469 | SCREW - fanshaft | 6 | ||
| 55-375 | LOCKWASHER | 6 | ||
| 55-402 | FLATWASHER | 6 | ||
| 8 | 77-1842 | PULLEY - fan (50s) | 1 | |
| 77-1842 | PULLEY - fan (TC) | 1 | ||
| 9 | 78-772 | FAN - condenser | 1 | |
| 10 | 77-1592 | HUB - fan | 1 | |
| 55-153 | SCREW - hub | 2 | ||
| 55-371 | FLATWASHER | 2 | ||
| 55-172 | SCREW - fan | 4 | ||
| 55-790 | LOCKWASHER | 4 | ||
| 55-371 | FLATWASHER | 4 | ||
| 11 | 98-2804 | SPINNING - condenser | 1 | |
| 55-538 | SCREW - spinning | 6 | ||
| 55-405 | WASHER - dome | 6 | ||
| 55-3085 | NUT - speed | 6 | ||
| 12 | 55-457 | KEY - woodruff | 2 | |
| 13 | 99-8135 | COVER - housing bearing | 1 | |
| 55-1587 | SCREW - housing | 4 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 55-4742 | FLATWASHER | 4 | ||
| 14 | 99-4353 | RING - evaporator fan | 1 | |
| 15 | 41-2195 | ALTERNATOR (37 amp, see 89E5) | 1 | |
|
10-41-2195 | Генератор 37A, MD/RD/TD-II / SB-II/III | 19 510 ₽ |
|
| 44-8525 | ALTERNATOR (65 amp, Bosch, see 91F1) | 1 | ||
| 16 | 77-1598 | PULLEY - alternator (see 89E5) | 1 | |
| 17 | 77-1953 | PULLEY - idler (see 70D12) | 1 | |
| 18 | 78-773 | BELT - fan | 1 | |
| 10-78-773 | Ремень электромотор - вал вентиляторов, SB-II/III | 5 230 ₽ |
|
|
| 19 | 77-1599 | PULLEY - fan drive | 1 | |
| 20 | 77-1905 | PULLEY - alternator drive | 1 | |
| 21 | 78-434 | BELT - alternator | 1 | |
| 22 | 104-632 | MOTOR (14hp) | 1 | |
| 23 | 77-1906 | PULLEY - motor | 1 | |
| 55-7482 | KEY | |||
| 24 | 78-785 | BELT - compressor drive | 1 | |
| 10-78-785 | Пара ремней электромотор - компрессор, SB-2XX/SB-III | 9 320 ₽ |
|
|
|
PP-78-785 | Пара ремней электромотор - компрессор, SB-2XX/SB-III | 3 490 ₽ |
|
| 25 | 77-1953 | PULLEY - idler (see 70D12) | 1 | |
| 26 | 107-341 | CLUTCH (see 125E4) | 1 | |
|
US-107-341 | Сцепление, SB-II/III / SMX/SMX-II | 113 700 ₽ |
|
| 27 | 55-1933 | KEY - boss | 1 | |
| 28 | 77-1591 | BOSS - pulley | 1 | |
|
10-77-1591 | Шкив, Isuzu 2.2 D.I. | 6 840 ₽ |
|
| 29 | 10-266 | KIT - bolt (crankshaft) | 1 | |
| 30 | 77-1664 | SPACER - pulley | 1 | |
| 31 | 77-1369 | PULLEY - crankshaft | 1 | |
| 32 | 55-5611 | SCREW - pulley | 4 | |
| 55-5411 | LOCKWASHER | 4 | ||
| 33 | 78-289 | BELT - water pump | 1 | |
| 34 | 77-1595 | PULLEY - water pump (stationary) | 1 | |
| 77-1187 | PULLEY - water pump (sliding) | 1 | ||
| 77-1285 | SPACER - pulley | 5 | ||
| 55-4998 | SCREW - pulley | 3 | ||
| 55-790 | LOCKWASHER | 3 |
