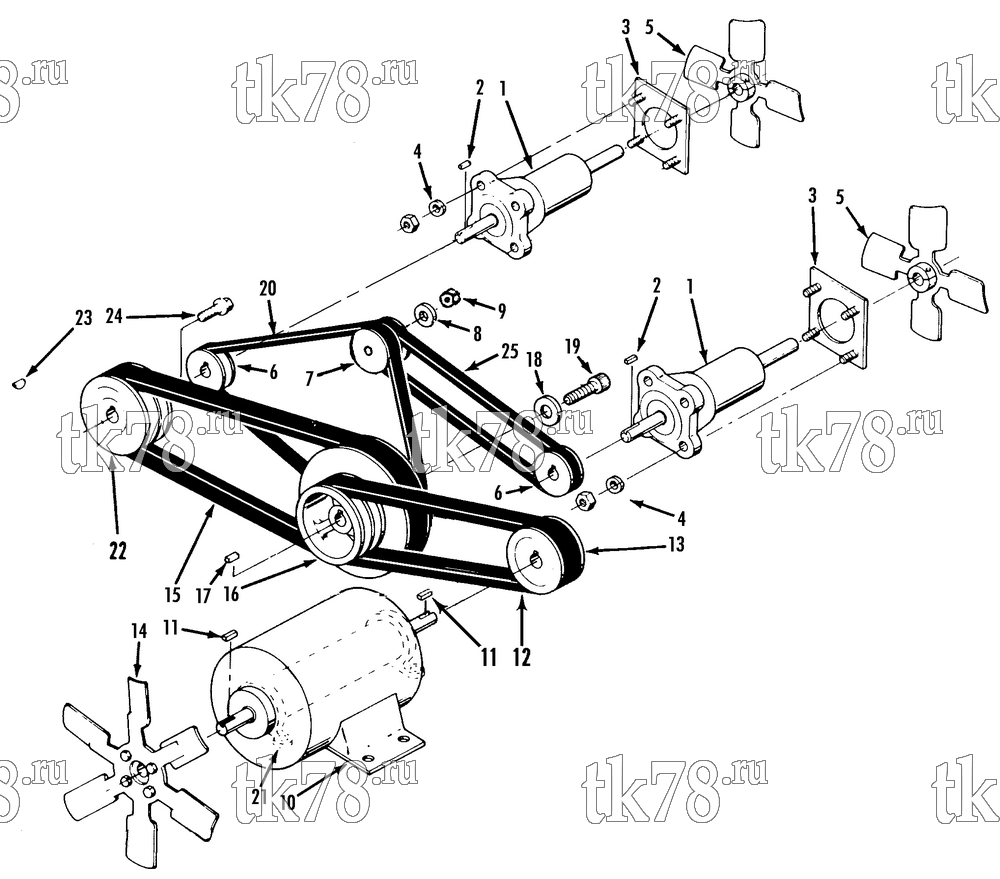

Установкa Thermo King схема PULLEYS & BELT GROUP – 89D14
Обновление от: 4/6/00
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 78-726 | FANSHAFT - assembly (see 89D7) | 2 | |
| 2 | 55-457 | KEY | 2 | |
| 3 | 99-3261 | BOLTPLATE | 2 | |
| 4 | 55-4955 | NUT - fanshaft | 8 | |
| 55-2641 | FLATWASHER | 8 | ||
| 5 | 78-558 | FAN - evaporator (plastic) | 2 | |
| 78-558 OEM | Крыльчатка | 6 520 ₽ |
|
|
|
10-78-558 | Крыльчатка | 6 180 ₽ |
|
| 77-1464 | CLIP - fan | 2 | ||
| 77-1522 | CLIP - fan hub (w/ nut) | 2 | ||
| 55-3675 | SCREW - fan | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 6 | 77-1897 | PULLEY - evaporator fan (4.2 od) | 2 | |
| 77-953 | PULLEY - evaporator fan (4.0 od) | 4 | ||
| 55-3089 | SCREW - pulley | 4 | ||
| 55-2959 | LOCKWASHER | 4 | ||
| 7 | 77-1898 | PULLEY - alternator | 1 | |
| 8 | 55-451 | WASHER - alternator pulley | 1 | |
| 9 | 55-2042 | NUT - alternator pulley | 1 | |
| 10 | 104-517 | ALTERNATOR - induction (optional) | 1 | |
| 77-1167 | BEARING - motor | 2 | ||
| 33-1671 | PAD - motor (rubber) | 1 | ||
| 11 | 55-4164 | KEY - fan | 2 | |
| 12 | 78-898 | BELT - motor to compressor | 1 | |
| 10-78-898 | Ремень электромотора, TD/RD-II | 7 620 ₽ |
|
|
| 13 | 77-1857 | PULLEY - motor | 1 | |
| 55-3089 | SCREW - pulley | 4 | ||
| 55-2959 | LOCKWASHER | 4 | ||
| 14 | 78-610 | FAN - condenser | 1 | |
| 55-2962 | SCREW - fan | 2 | ||
| 55-2959 | LOCKWASHER | 2 | ||
| 55-2958 | FLATWASHER | 2 | ||
| 15 | 78-770 | BELT - engine to compressor | 1 | |
| 16 | 77-1334 | PULLEY - compressor | 1 | |
| 17 | 55-9024 | KEY - compressor | 1 | |
|
10-55-9024 | Шпонка коленвала, X418/426/430 | 590 ₽ |
|
| 18 | 77-2498 | SPACER - pulley | 1 | |
|
10-77-2498 | Шайба муфты сцепления | 990 ₽ |
|
| 19 | 55-4316 | SCREW - pulley to compressor | 1 | |
|
10-55-4316 | Болт коленвала компрессора X426/430 | 470 ₽ |
|
| 20 | 78-695 | BELT - fan drive | 1 | |
| 21 | 77-1011 | JACKSHAFT (see 7B12) | 1 | |
| 55-197 | SCREW - jackshaft | 4 | ||
| 55-375 | LOCKWASHER | 4 | ||
| 55-285 | NUT | 4 | ||
| 55-402 | FLATWASHER | 4 | ||
| 99-5736 | SUPPORT - jackshaft | 1 | ||
| 22 | 107-349 | CLUTCH (see 145F4) | 1 | |
|
10-107-349 | Сцепление, MD/RD/KD/T-Series | 98 400 ₽ |
|
|
PP-107-349 | Сцепление, MD/RD/KD/T-Series | 46 200 ₽ |
|
| 23 | 55-513 | KEY | 1 | |
| 24 | 55-4589 | SCREW - clutch | 1 | |
| 25 | 78-467 | BELT - fan drive | 1 | |
| 10-78-467 | Ремень генератора, SNWD | 1 460 ₽ |
|
