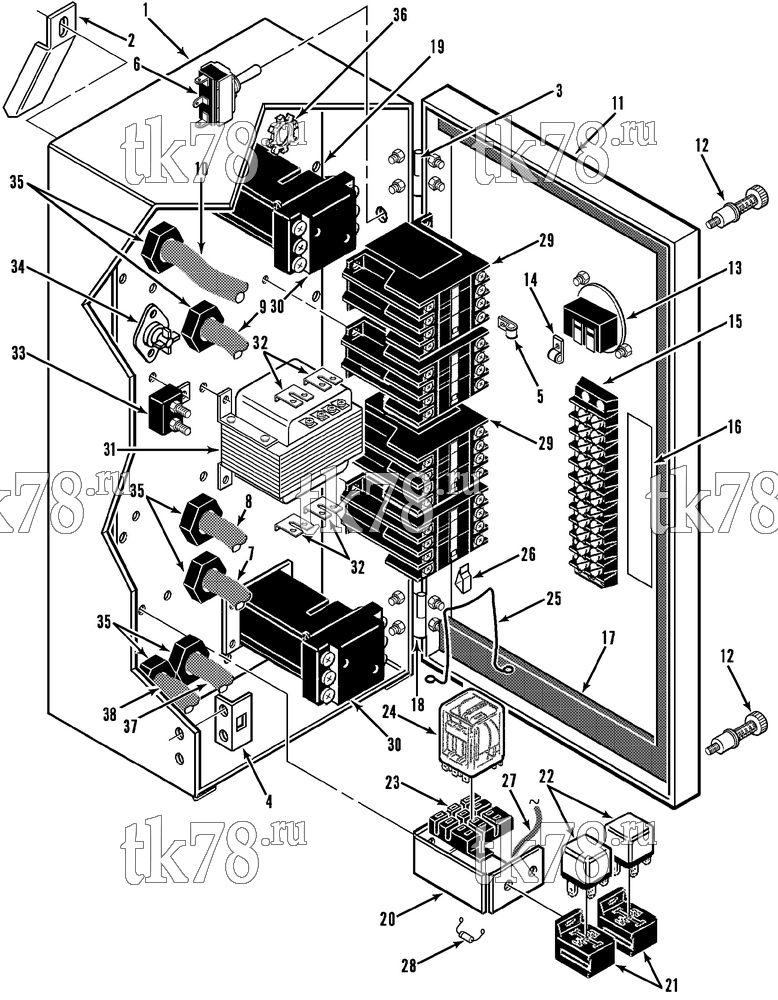

Установкa Thermo King схема CONTROL BOX ASSEMBLY (EV1) – 88G9
Обновление от: 2/27/97
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-3019 | BOX - control | 1 | |
| 55-3490 | SCREW - box | 4 | ||
| 55-2958 | FLATWASHER | 8 | ||
| 55-4954 | NUT | 4 | ||
| 2 | 99-9089 | BRACE | 2 | |
| 55-2969 | SCREW - brace | 2 | ||
| 55-2958 | FLATWASHER | 4 | ||
| 55-4954 | NUT | 2 | ||
| 3 | 99-8056 | HINGE (female) | 2 | |
| 55-2995 | SCREW - hinge | 4 | ||
| 55-2001 | FLATWASHER | 4 | ||
| 55-1511 | LOCKWASHER | 4 | ||
| 55-2965 | NUT | 4 | ||
| 4 | 99-9088 | BRACKET - cover | 2 | |
| 55-4415 | NUT - captive | 2 | ||
| 55-2995 | SCREW - bracket | 4 | ||
| 55-2001 | FLATWASHER | 4 | ||
| 55-1511 | LOCKWASHER | 4 | ||
| 55-2965 | NUT | 4 | ||
| 5 | 55-3357 | CLAMP (1 in) | 1 | |
| 55-2995 | SCREW - bracket | 1 | ||
| 55-2001 | FLATWASHER | 1 | ||
| 55-1511 | LOCKWASHER | 1 | ||
| 55-2965 | NUT | 1 | ||
| 6 | 44-6099 | SWITCH - toggle | 1 | |
| 99-1756 | NAMEPLATE - On/Off Switch | 1 | ||
| 7 | 44-6964 | HARNESS - heater | 1 | |
| 55-2330 | BANDWRAP | A/R | ||
| 8 | 44-6963 | HARNESS - evaporator fan | 1 | |
| 55-2330 | BANDWRAP | A/R | ||
| 9 | 44-6962 | HARNESS - fan (condenser) | 1 | |
| 55-2330 | BANDWRAP | A/R | ||
| 10 | 44-6961 | HARNESS - motor (drive) | 1 | |
| 55-2330 | BANDWRAP | A/R | ||
| 11 | 98-3020 | COVER - control box | 1 | |
| 98-4114 | COVER | 1 | ||
| 12 | 55-1587 | SCREW | 2 | |
| 55-4510 | WASHER - retaining | 2 | ||
| 13 | 44-5585 | HOURMETER | 1 | |
| 55-2868 | SCREW - bracket | 2 | ||
| 55-2201 | FLATWASHER | 2 | ||
| 55-3014 | LOCKWASHER | 2 | ||
| 55-2999 | NUT | 2 | ||
| 14 | 55-3357 | CLAMP (1 in) | 1 | |
| 55-4487 | SCREW - clamp | 1 | ||
| 55-2201 | FLATWASHER | 1 | ||
| 55-3014 | LOCKWASHER | 1 | ||
| 55-2999 | NUT | 1 | ||
| 15 | 44-3917 | BOARD - terminal | 1 | |
| 55-3843 | SCREW - hinge | 2 | ||
| 55-3008 | WASHER - sealing | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 55-1511 | LOCKWASHER | 2 | ||
| 55-2965 | NUT | 2 | ||
| 16 | 99-9085 | MARKSTRIP | 1 | |
| 17 | 99-7191 | GASKET | A/R | |
| 18 | 99-8057 | HINGE (male) | 2 | |
| 55-2995 | SCREW - hinge | 4 | ||
| 55-2001 | FLATWASHER | 4 | ||
| 55-1511 | LOCKWASHER | 4 | ||
| 55-2965 | NUT | 4 | ||
| 19 | 99-9086 | PANEL - control box | 1 | |
| 55-1587 | SCREW - panel | 10 | ||
| 55-2086 | FLATWASHER | 20 | ||
| 55-4953 | NUT | 10 | ||
| 20 | 99-9087 | BRACKET - relay | 1 | |
| 55-3842 | SCREW - bracket | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 55-2964 | LOCKWASHER | 2 | ||
| 21 | 44-5537 | SOCKET - relay | 2 | |
| 55-3027 | SCREW - socket | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 55-2964 | LOCKWASHER | 2 | ||
| 55-2965 | NUT | 2 | ||
| 22 | 44-9111 | RELAY | 2 | |
|
10-44-9111 | Реле | 1 310 ₽ |
|
| 23 | 44-3184 | SOCKET - relay | 1 | |
| 55-2262 | RIVET - blind | 2 | ||
| 24 | 44-3186 | RELAY | 1 | |
|
10-44-3186 | Реле оттайки, KD/MD/RD/TD/URD-III / SB-I/II/III / SMX | 3 440 ₽ |
|
| 25 | 99-2027 | SPRING - holddown | 1 | |
| 26 | 55-2771 | CLIP | 1 | |
| 27 | 44-6957 | HARNESS - relay | 1 | |
| 28 | 44-3515 | RESISTOR (47 ohm) | 1 | |
| 29 | 44-5294 | CONTACTOR | 2 | |
| 44-4286 | COIL (12VDC) | 1 | ||
| 40-287 | KIT - points (contactor) | 1 | ||
| 55-2868 | SCREW - contactor | 8 | ||
| 55-2202 | LOCKWASHER | 8 | ||
| 30 | 44-2853 | CONTACTOR | 2 | |
| 44-2854 | COIL (12VDC) | 1 | ||
| 44-7596 | KIT - points (contactor) | 1 | ||
| 55-3842 | SCREW - contactor | 6 | ||
| 55-2001 | FLATWASHER | 6 | ||
| 55-2964 | LOCKWASHER | 6 | ||
| 31 | 44-2230 | TRANSFORMER | 1 | |
| 55-3842 | SCREW - transformer | 4 | ||
| 55-2001 | FLATWASHER | 4 | ||
| 55-2964 | LOCKWASHER | 4 | ||
| 32 | 44-3710 | JUMPER | 4 | |
| 33 | 44-5730 | BREAKER - circuit | 1 | |
|
30-44-5730 | Предохранитель 20А | 1 300 ₽ |
|
| 55-3842 | SCREW - breaker | 1 | ||
| 55-2001 | FLATWASHER | 1 | ||
| 55-2964 | LOCKWASHER | 1 | ||
| 34 | 44-3280 | RECTIFIER | 1 | |
| 55-2868 | SCREW - rectifier | 4 | ||
| 55-3013 | FLATWASHER | 4 | ||
| 55-3014 | LOCKWASHER | 4 | ||
| 35 | 55-2788 | FITTING - barb | 6 | |
| 55-5080 | NUT | 6 | ||
| 36 | 44-3712 | GRIP - cable | 1 | |
| 55-2635 | NUT | 1 | ||
| 37 | 44-6958 | HARNESS - main | 1 | |
| 55-2330 | BANDWRAP | A/R | ||
| 38 | 44-6960 | HARNESS - switch | 1 | |
| 55-2330 | BANDWRAP | A/R |
