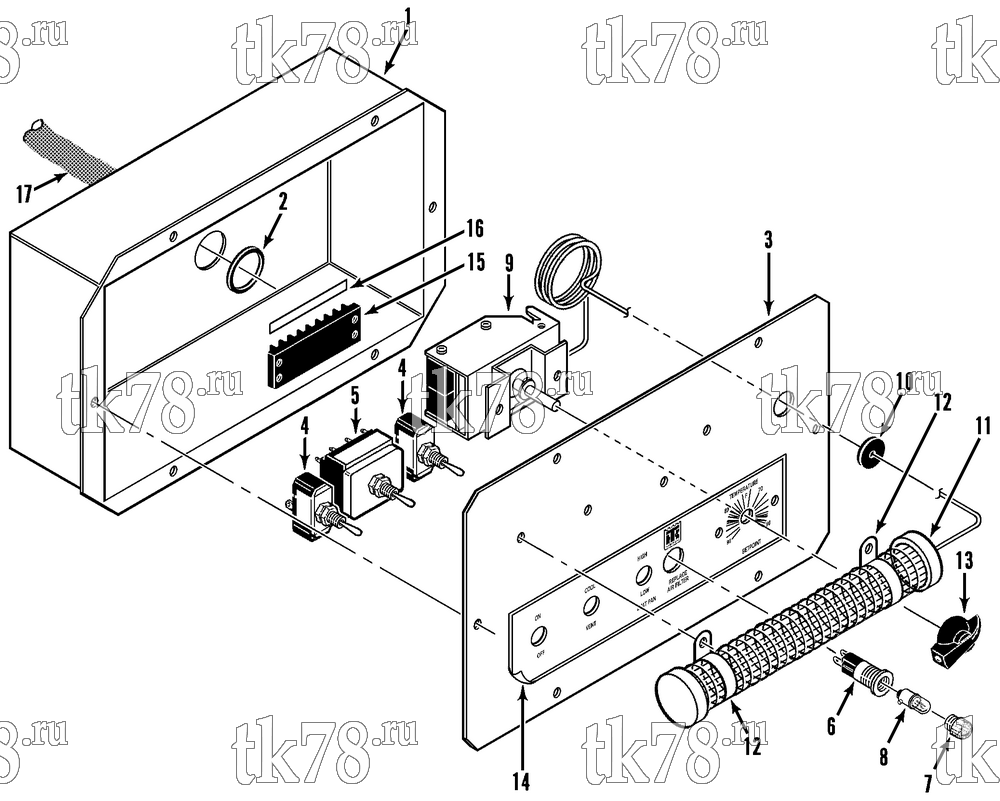

Установкa Thermo King схема REMOTE CONTROL GROUP – 88G10
Обновление от: 4/19/96
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 91-3846 | BOX - remote control (EV2 & EV3) | 1 | |
| 2 | 33-1211 | GROMMET (5/8 in id, EV2 & EV3) | 1 | |
| 3 | 91-3847 | COVER - remote control box (EV2) | 1 | |
| 91-3850 | COVER - remote control box (EV3, only) | 1 | ||
| 55-736 | SCREW - cover | 6 | ||
| 55-1511 | LOCKWASHER | 6 | ||
| 55-431 | FLATWASHER | 6 | ||
| 4 | 44-1936 | SWITCH - toggle (1pdt) | 2 | |
| 5 | 44-709 | SWITCH - toggle (4pdt, EV1 & EV2) | 1 | |
|
10-44-709 | Выключатель четырехполюсный | 5 130 ₽ |
|
| 44-489 | SWITCH - toggle (4pdt, EV3) | 1 | ||
| 6 | 44-1093 | LIGHT - indicator (amber, EV2 & EV3) | 1 | |
| 7 | 44-6069 | LENS - indicator (amber, EV2 & EV3) | 1 | |
| 8 | 44-2917 | BULB - light (12V, EV2 & EV3) | 1 | |
| 9 | 44-6043 | THERMOSTAT | 1 | |
| 55-1466 | SCREW - thermostat | 2 | ||
| 55-3233 | LOCKWASHER | 2 | ||
| 55-1266 | FLATWASHER | 2 | ||
| 10 | 33-1611 | GROMMET (1/8 in id, EV2 & EV3) | 1 | |
| 11 | 99-6851 | RETAINER - thermostat | 1 | |
| 12 | 55-3357 | CLAMP (1 in) | 2 | |
| 55-736 | SCREW - clamp | 2 | ||
| 55-1511 | LOCKWASHER | 2 | ||
| 55-431 | FLATWASHER | 2 | ||
| 55-2752 | NUT | 2 | ||
| 13 | 44-1222 | KNOB - temperature control | 1 | |
| 99-8802 | NAMEPLATE - Temperature (EV1, only) | 1 | ||
| 14 | 91-3848 | NAMEPLATE (EV2) | 1 | |
| 91-3851 | NAMEPLATE (EV3) | 1 | ||
| 15 | 44-5057 | BOARD - terminal (8 terminal, EV2) | 1 | |
| 44-2560 | BOARD - terminal (9 terminal, EV3) | 1 | ||
| 55-4815 | SCREW - board | 2 | ||
| 55-3233 | LOCKWASHER | 2 | ||
| 55-1266 | FLATWASHER | 4 | ||
| 55-3519 | NUT | 2 | ||
| 16 | 91-3849 | MARKSTRIP (EV2) | 1 | |
| 91-3852 | MARKSTRIP (EV3) | 1 | ||
| 17 | 44-9828 | HARNESS - remote | 1 |
