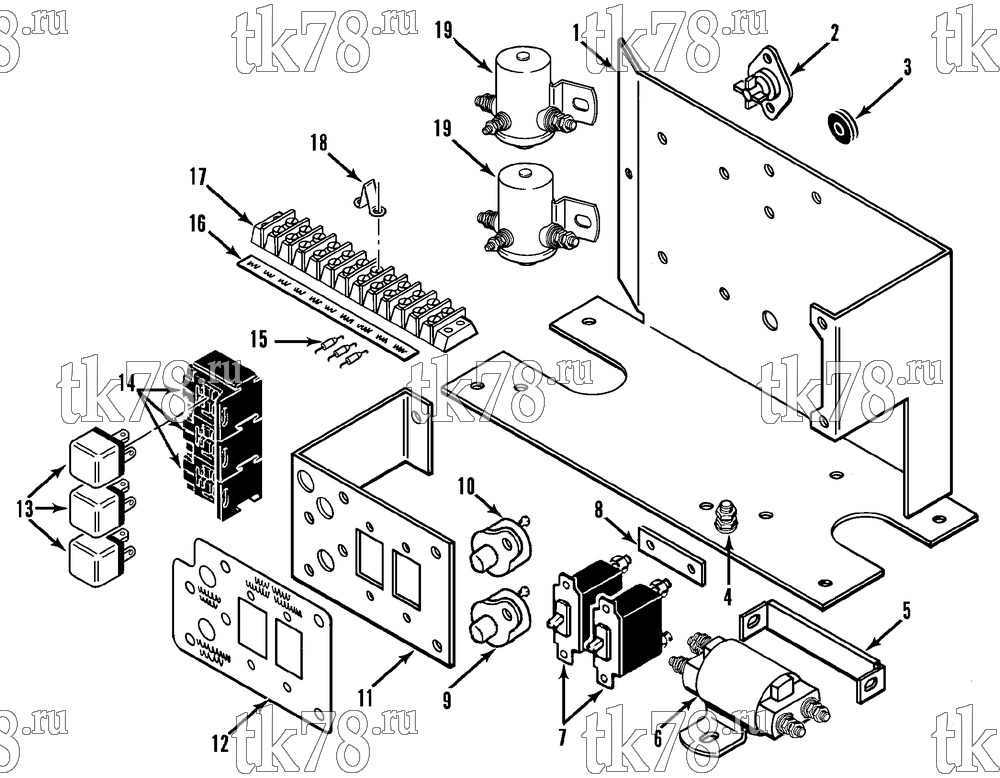

Установкa Thermo King схема CONTROL PANEL ASSEMBLY – 88E8
Обновление от: 5/29/01
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 91-1234 | PANEL - control | 1 | |
| 55-1587 | SCREW - panel | 4 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 2 | 44-3280 | RECTIFIER (U1 M1 & UH1 M1) | 1 | |
| 44-3400 | RECTIFIER (U1 M2 & UH1 M2) | 1 | ||
| 55-1309 | SCREW - rectifier | 2 | ||
| 55-3233 | LOCKWASHER | 2 | ||
| 55-1266 | FLATWASHER | 2 | ||
| 3 | 33-451 | GROMMET | 1 | |
| 4 | 55-1230 | SCREW - ground | 1 | |
| 55-431 | FLATWASHER | 3 | ||
| 55-396 | LOCKWASHER - internal tooth | 3 | ||
| 55-2700 | LOCKWASHER - internal/external tooth | 1 | ||
| 55-2752 | NUT | 2 | ||
| 5 | 44-8095 | JUMPER (U1 M1 & U1 M2) | 1 | |
| 6 | 41-3053 | SOLENOID - fan #3 (U1 M1 & U1 M2) | 1 | |
| 55-165 | SCREW - solenoid | 2 | ||
| 55-366 | LOCKWASHER | 2 | ||
| 55-411 | FLATWASHER | 2 | ||
| 7 | 44-5494 | BREAKER - circuit (fan motor, U1 M1 & U1 M2) | 2 | |
| 55-1466 | SCREW - breaker | 4 | ||
| 55-3233 | LOCKWASHER | 4 | ||
| 55-1266 | FLATWASHER | 4 | ||
| 44-5494 | BREAKER - circuit (fan motor, UH1 M1 & UH1 M2) | 1 | ||
| 55-1466 | SCREW - breaker | 2 | ||
| 55-3233 | LOCKWASHER | 2 | ||
| 55-1266 | FLATWASHER | 2 | ||
| 8 | 44-8094 | JUMPER - circuit breaker (U1 M1 & U1 M2) | 1 | |
| 9 | 44-7216 | BREAKER - circuit (10 amp, compressor clutch, U1 M1 & U1 M2) | 1 | |
| 10 | 44-7217 | BREAKER - circuit (15 amp, boost pump) | 1 | |
| 55-1049 | SCREW - breaker | 4 | ||
| 55-431 | FLATWASHER | 4 | ||
| 11 | 91-1235 | BRACKET - circuit breaker | 1 | |
| 55-760 | SCREW - bracket | 3 | ||
| 55-1511 | LOCKWASHER | 3 | ||
| 55-431 | FLATWASHER | 3 | ||
| 12 | 91-1236 | NAMEPLATE - circuit breaker | 1 | |
| 13 | 44-9111 | RELAY - mini (boost pump, A/C stop light & clutch, U1 M1) | 3 | |
|
10-44-9111 | Реле | 1 310 ₽ |
|
| 44-9112 | RELAY - mini (boost pump, A/C stop light & clutch, U1 M2) | 3 | ||
| 44-9111 | RELAY - mini (boost pump, UH1 M1) | 1 | ||
|
|
10-44-9111 | Реле | 1 310 ₽ |
|
| 44-9112 | RELAY - mini (boost pump, UH1 M2) | 1 | ||
| 14 | 44-5537 | SOCKET - relay (U1 M1 & U1 M2) | 3 | |
| 55-3150 | SCREW - socket | 2 | ||
| 55-396 | LOCKWASHER | 2 | ||
| 55-431 | FLATWASHER | 2 | ||
| 44-5537 | SOCKET - relay (UH1 M1 & UH1 M2) | 1 | ||
| 55-3150 | SCREW - socket | 1 | ||
| 55-396 | LOCKWASHER | 1 | ||
| 55-431 | FLATWASHER | 1 | ||
| 15 | 44-8765 | DIODE | 3 | |
| 16 | 91-1237 | NAMEPLATE | 1 | |
| 17 | 44-6190 | BOARD - terminal (U1 M1, UH1 M1 & UH1 M2) | 1 | |
| 44-5534 | BOARD - terminal (U1 M2) | 1 | ||
| 55-1508 | SCREW - board | 2 | ||
| 55-3233 | LOCKWASHER | 2 | ||
| 55-1266 | FLATWASHER | 2 | ||
| 18 | 44-3579 | STRIP - jumper (terminal board, U1 M1 & U1 M2) | 1 | |
| 19 | 44-4397 | SOLENOID - fan #1 & 2 (U1 M1 & UH1 M1) | 2 | |
| 41-3987 | SOLENOID - fan #1 & 2 (U1 M2 & UH1 M2) | 2 | ||
| 55-165 | SCREW - solenoid | 4 | ||
| 55-366 | LOCKWASHER | 4 | ||
| 55-411 | FLATWASHER | 1 |
