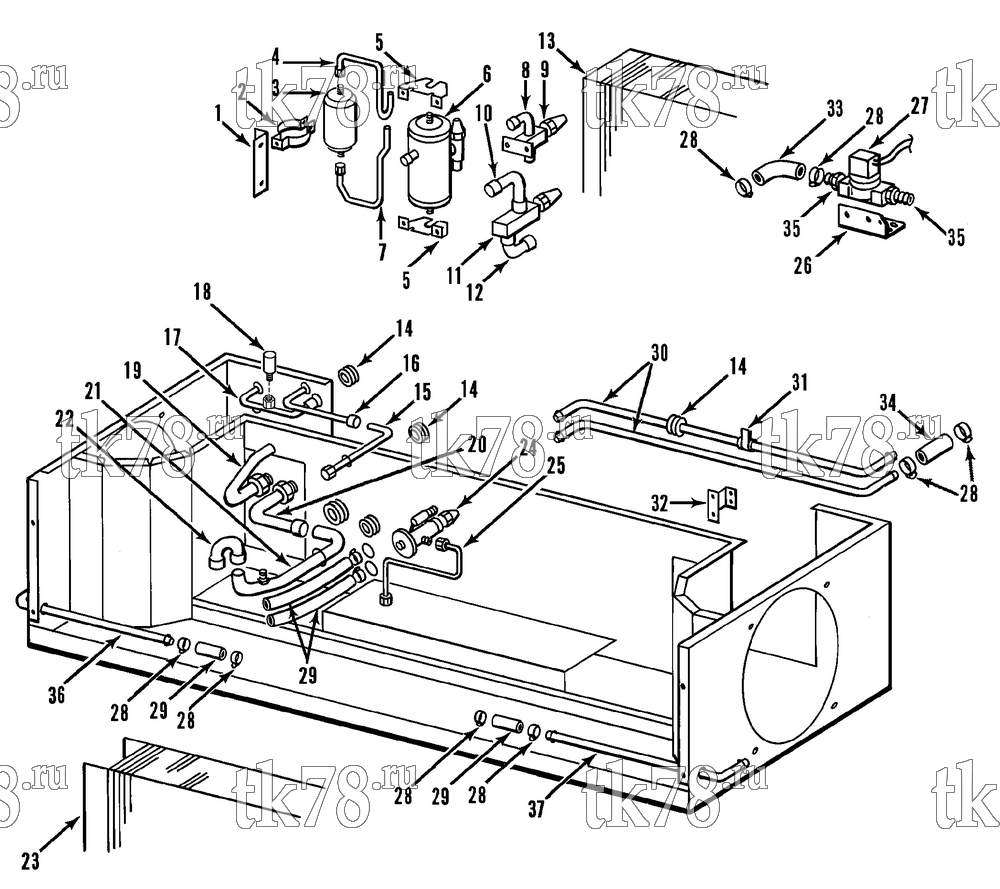

Установкa Thermo King схема REFRIGERATION COMPONENTS (U1-M1 & U1-M2) – 88A4
Обновление от: 8/5/08
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 91-1228 | BRACKET - drier | 1 | |
| 55-1587 | SCREW - bracket | 2 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-4953 | NUT | 2 | ||
| 2 | 55-2365 | HANGER - dehydrator | 2 | |
| 55-1587 | SCREW - hanger | 2 | ||
| 55-3095 | SCREW - dehydrator | 2 | ||
| 55-2086 | FLATWASHER | 8 | ||
| 55-4953 | NUT | 4 | ||
| 3 | 66-4857 | DEHYDRATOR | 1 | |
| 4 | 66-5251 | TUBE - receiver to drier | 1 | |
| 5 | 91-1227 | BRACKET - receiver tank | 2 | |
| 55-2977 | SCREW - bracket | 4 | ||
| 55-2086 | FLATWASHER | 8 | ||
| 55-4953 | NUT | 4 | ||
| 6 | 67-2325 | TANK - receiver (see 83B7) | 1 | |
| 55-4955 | NUT - tank | 2 | ||
| 55-2641 | FLATWASHER | 2 | ||
| 7 | 66-5252 | TUBE - drier to valve | 1 | |
| 8 | 66-5253 | TUBE - valve to expansion | 1 | |
| 9 | 66-4694 | VALVE - shutoff | 1 | |
| 66-2170 | CAP - valve | 1 | ||
| 55-1587 | SCREW - valve | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-4953 | NUT | 2 | ||
| 10 | 66-5249 | TUBE - valve | 1 | |
| 11 | 66-4172 | VALVE - shutoff (discharge) | 1 | |
| 55-1587 | SCREW - valve | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-4953 | NUT | 2 | ||
| 12 | 55-1122 | ELBOW - valve to coil | 1 | |
| 13 | 67-903 | COIL - condenser (U1 M1 until 11/17/89, see 88A5) | 1 | |
| 67-1074 | COIL - condenser (U1 M1 after 11/17/89 & U1 M2, see 88A5) | 1 | ||
| 14 | 33-489 | GROMMET (1-1/4 id) | 1 | |
| 33-2023 | GROMMET (1-1/8) | 1 | ||
| 33-432 | GROMMET (3/4 id, 1/16 groove) | 2 | ||
| 33-572 | GROMMET (3/4 id, 1/8 groove) | 2 | ||
| 33-810 | GROMMET (3/4 id, 3/16 groove) | 2 | ||
| 33-1809 | GROMMET (1/2 id) | 1 | ||
| 15 | 66-5255 | TUBE - expansion valve | 1 | |
| 16 | 66-5254 | TUBE - valve to expansion tank | 1 | |
| 17 | 66-6404 | TUBE - coil to receiver tank | 1 | |
| 55-3295 | FITTING - saddle | 1 | ||
| 18 | 66-7392 | VALVE - relief | 1 | |
|
