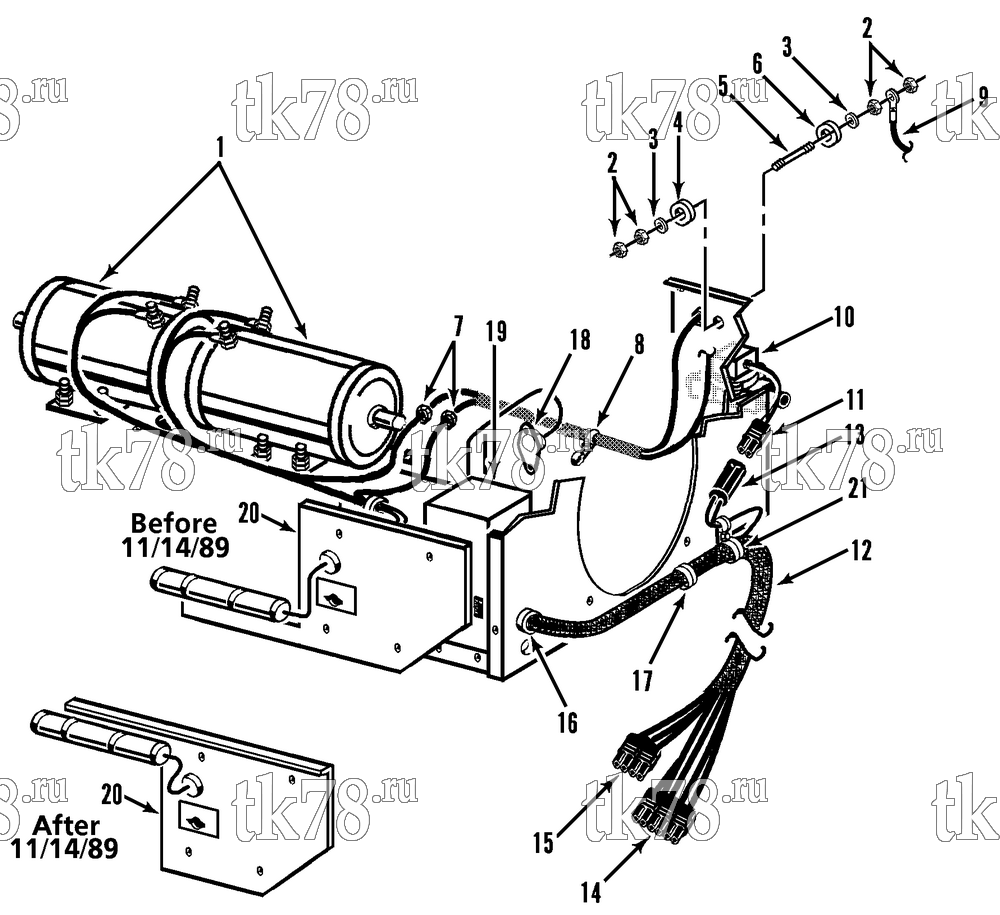

Установкa Thermo King схема ELECTRICAL COMPONENTS (U1-M1 & U1-M2) – 88A2
Обновление от: 5/13/03
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 104-502 | MOTOR - fan (U1 M1, see 98G7) | 2 | |
| 104-323 | MOTOR - fan (U1 M2, see 76C1) | 2 | ||
| 99-9084 | NAMEPLATE - arrow | 2 | ||
| 2 | 55-671 | NUT - jam | 8 | |
| 3 | 55-448 | FLATWASHER | 8 | |
| 55-3066 | LOCKWASHER - internal tooth | 8 | ||
| 55-3672 | LOCKWASHER - internal/external tooth | 6 | ||
| 4 | 55-5901 | WASHER - shoulder (polyester) | 1 | |
| 5 | 55-3167 | STUD | 2 | |
| 99-4660 | NAMEPLATE - Positive | 1 | ||
| 99-4661 | NAMEPLATE - Negative | 1 | ||
| 44-3657 | NAMEPLATE - 12 Volt (U1 M1) | 1 | ||
| 99-2477 | NAMEPLATE - 24 Volt (U1 M2) | 1 | ||
| 6 | 55-5902 | FLATWASHER (polyester) | 1 | |
| 7 | 55-5900 | CONNECTOR - cable | 2 | |
| 8 | 55-3741 | CLAMP - cable (3/4) | 1 | |
| 55-549 | CLAMP - cable (1/2) | 1 | ||
| 55-2995 | SCREW - clamp | 1 | ||
| 55-2001 | FLATWASHER | 1 | ||
| 55-4560 | NUT | 1 | ||
| 9 | 44-8116 | CABLE - battery | 1 | |
| 10 | 41-7598 | VALVE - solenoid (water, 12V, see 147A1, U1 M1) | 1 | |
| 41-7599 | VALVE - solenoid (water, 24V, see 147A1) | 1 | ||
| 306-634 | VALVE - solenoid (water, U1 M2, ALCO) | 1 | ||
| 44-7049 | COIL (24V) | 1 | ||
| 99-7876 | NAMEPLATE - Water Inlet | 1 | ||
| 11 | 44-5835 | CONNECTOR | 1 | |
| 44-5883 | TERMINAL - male (18-20 ga) | 2 | ||
| 44-5885 | SEAL - cable (green, 18-22 ga) | 2 | ||
| 12 | 44-8098 | HARNESS - main | 1 | |
| 13 | 44-5838 | CONNECTOR - tower (2-pin) | 1 | |
| 14 | 44-7872 | CONNECTOR - tower (6-pin) | 1 | |
| 15 | 44-7881 | CONNECTOR - tower (4-pin) | 1 | |
| 44-5837 | SEAL - cable (gray, 14-16 ga) | 12 | ||
| 44-5839 | TERMINAL - female (14-16 ga) | 12 | ||
| 16 | 55-6141 | CONNECTOR - main harness | 1 | |
| 55-2635 | NUT | 1 | ||
| 17 | 55-549 | CLAMP - cable | 3 | |
| 55-5639 | SCREW - clamp | 3 | ||
| 18 | 44-6005 | THERMOSTAT | 1 | |
| 55-5639 | SCREW - switch | 2 | ||
| 19 | 91-1234 | PANEL - control (see 88E8) | 1 | |
| 20 | 91-1239 | PLATE - thermostat (U1 M1 until 11/14/89, see 88A7) | 1 | |
| 91-2286 | PLATE - thermostat (U1 M1 after 11/14/89 & U1 M2, see 94B7) | 1 | ||
| 21 | 55-546 | CLAMP - harness | 1 | |
| 55-3027 | SCREW - clamp | 3 | ||
| 55-2001 | FLATWASHER | 3 | ||
| 55-4560 | NUT | 3 |
