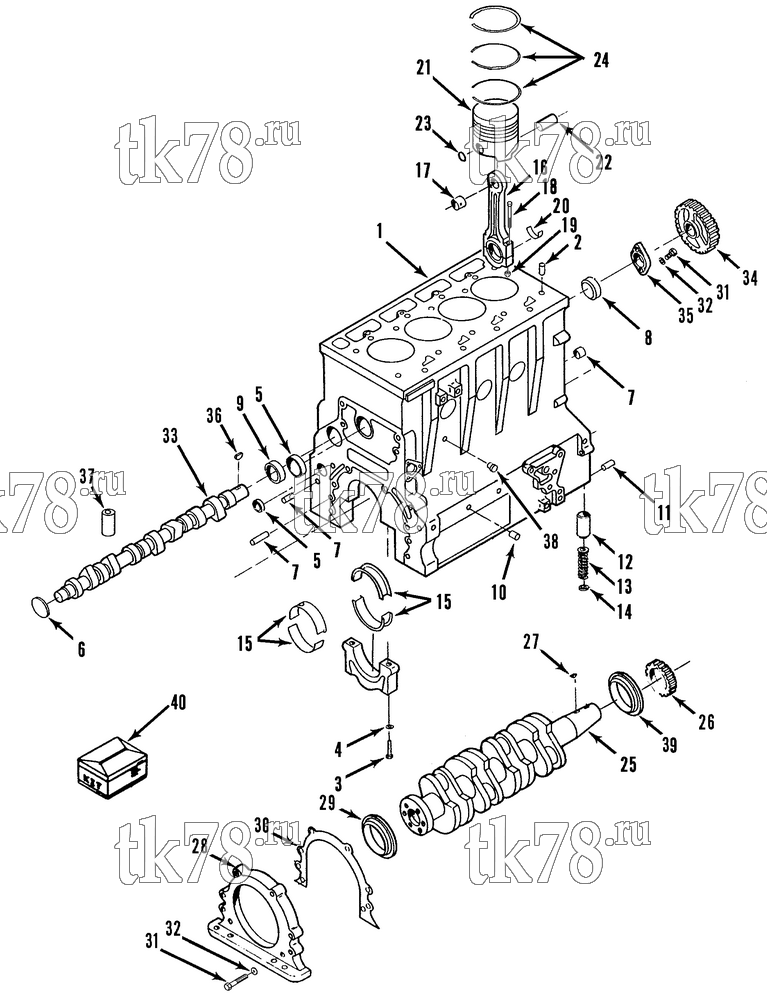

Установкa Thermo King схема CYLINDER BLOCK GROUP – 87G1
Обновление от: 4/14/99
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 101-272 | ENGINE - assembly (Cummins engine, HP 2.3) | 1 | ||
| 1 | 12-544 | BLOCK - cylinder (incl main bearing caps) | 1 | |
| 2 | 11-6376 | PIN - cylinder head | 2 | |
| 3 | 55-6076 | SCREW - bearing cap | 10 | |
| 4 | 55-6077 | FLATWASHER | 10 | |
| 5 | 11-6377 | PLUG - frost (50 mm dia) | 4 | |
| 11-6378 | PLUG - frost (13 mm dia) | 2 | ||
| 11-6379 | PLUG - frost (32 mm dia) | 2 | ||
| 11-6380 | PLUG - frost (54 mm dia) | 1 | ||
| 6 | 11-6381 | PLUG - welch, camshaft | 1 | |
| 7 | 11-6382 | PIN - dowel (8 x 20 mm) | 2 | |
| 11-6383 | PIN - dowel (10 x 20 mm) | 2 | ||
| 11-6384 | PIN - dowel (8 x 40 mm) | 2 | ||
| 8 | 11-6385 | BEARING (front) | 1 | |
| 9 | 11-6386 | BEARING (middle & rear) | 4 | |
| 10 | 55-4094 | PLUG - pipe | 4 | |
| 11 | 11-6387 | PIN - oil regulator | 1 | |
| 12 | 11-6388 | PISTON - regulator, oil | 1 | |
| 13 | 11-6389 | SPRING - regulator, oil | 1 | |
| 14 | 55-6078 | WASHER - oil regulator | 1 | |
| 15 | 11-6390 | BEARING SET - main (std) | 1 | |
| 11-6391 | BEARING SET (0.25 mm os) | 1 | ||
| 11-6392 | BEARING SET (0.50 mm os) | 1 | ||
| 11-6393 | BEARING SET (0.75 mm os) | 1 | ||
| 16 | 11-6394 | ROD - connecting | 4 | |
| 17 | 11-6395 | BUSHING - connecting rod | 1 | |
| 18 | 55-6079 | BOLT - connecting rod | 1 | |
| 19 | 55-6080 | NUT - connecting rod | 1 | |
| 20 | 11-6400 | BEARING SET - connecting rod (std) | 1 | |
| 11-6401 | BEARING SET (0.25 mm us) | 1 | ||
| 11-6402 | BEARING SET (0.50 mm us) | 1 | ||
| 11-6403 | BEARING SET (0.75 mm us) | 1 | ||
| 21 | 11-6410 | PISTON (incl pin & clip, std) | 4 | |
| 11-6411 | PISTON (0.25 mm os) | 4 | ||
| 11-6412 | PISTON (0.50 mm os) | 4 | ||
| 11-6413 | PISTON (0.75 mm os) | 4 | ||
| 11-6414 | PISTON (1.00 mm os) | 4 | ||
| 22 | 11-6396 | PIN - piston | 4 | |
| 23 | 11-6397 | CLIP - piston pin | 8 | |
| 24 | 11-6420 | RING SET (std) | 4 | |
| 11-6421 | RING SET (0.25 mm os) | 4 | ||
| 11-6422 | RING SET (0.50 mm os) | 4 | ||
| 11-6423 | RING SET (0.75 mm os) | 4 | ||
| 11-6424 | RING SET (1.00 mm os) | 4 | ||
| 25 | 12-514 | CRANKSHAFT & GEAR | 1 | |
| 26 | 11-6398 | GEAR - crankshaft | 1 | |
| 27 | 55-6081 | KEY - gear | 1 | |
| 28 | 11-6399 | PLATE - rear seal | 1 | |
| 29 | 33-2024 | SEAL - oil, rear | 1 | |
| 30 | 33-1852 | GASKET - rear seal plate | 1 | |
| 31 | 55-6082 | SCREW - plate | 1 | |
| 32 | 55-6083 | FLATWASHER | 1 | |
| 33 | 12-515 | CAMSHAFT | 1 | |
| 34 | 11-6404 | GEAR - camshaft | 1 | |
| 35 | 11-6405 | RETAINER - camshaft | 1 | |
| 36 | 55-6084 | KEY - camshaft | 1 | |
| 37 | 11-6406 | TAPPET | 8 | |
| 38 | 55-6085 | VALVE - coolant drain | 1 | |
| 55-6086 | PLUG - pipe | 1 | ||
| 39 | 33-2025 | SEAL - oil, front | 1 | |
| 40 | 30-190 | GASKET SET - engine overhaul | 1 |
