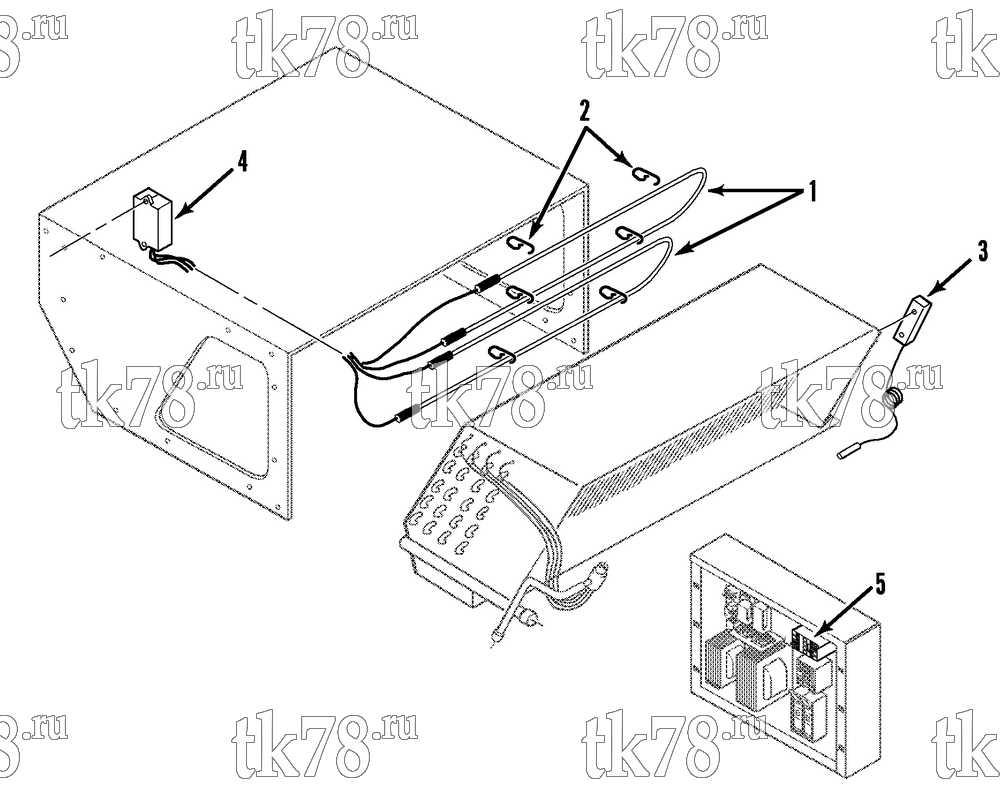

Установкa Thermo King схема ELECTRIC HEATER GROUP (Before 8/92) – 87E5
Обновление от: 6/3/98
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 45-1395 | HEATER (230 VAC) | 2 | |
| 45-1396 | HEATER (115 VAC) | 2 | ||
| 2 | 91-240 | RETAINER - heater | 8 | |
| 3 | 44-6599 | THERMOSTAT - 2 switch | 1 | |
| 4 | 44-7354 | BOX - junction | 1 | |
| 5 | 41-5629 | CONTACTOR - heater (12V, in control box) | 1 | |
| 41-361 | CONTACTOR - heater (24V, in control box) | 1 | ||
| 44-2756 | DIODE - contactor | 1 | ||
|
10-44-2756 | Диод соленоида тяги | 1 920 ₽ |
|
