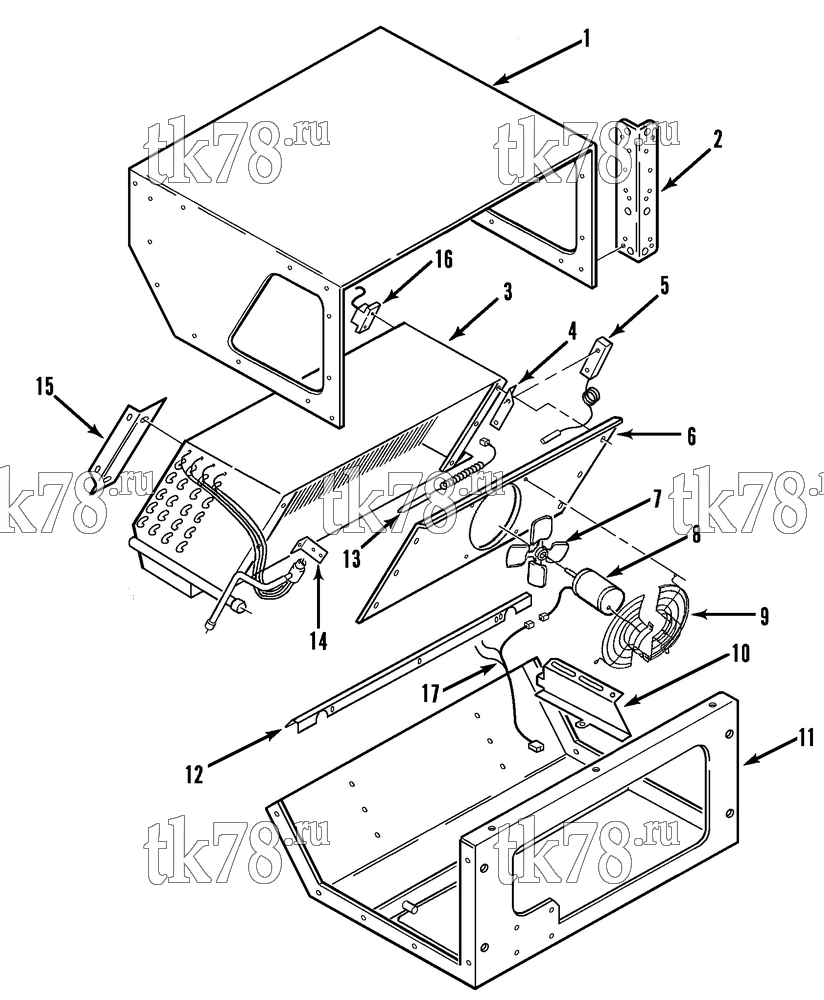

Установкa Thermo King схема STRUCTURAL ELECTRICAL - EVAPORATOR (Before 8/92) – 87E2
Обновление от: 8/25/08
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-3510 | HOUSING - evaporator | 1 | |
| 99-8506 | NAMEPLATE - Caution, Fan | 1 | ||
| 99-8507 | NAMEPLATE - Caution, Fan (multi-language) | 1 | ||
| 2 | 91-1161 | ANGLE - unit mounting | 2 | |
| 55-1587 | SCREW - angle | 6 | ||
| 55-2086 | FLATWASHER | 12 | ||
| 55-4953 | NUT | 6 | ||
| 3 | 67-885 | COIL - evaporator | 1 | |
| 55-4526 | NUT - captive (10-32) | 2 | ||
| 55-3059 | NUT - captive (1/4-20) | 6 | ||
| 33-314 | GROMMET (5/16 id) | 1 | ||
| 4 | 99-7694 | SUPPORT - thermostat | 1 | |
| 55-5636 | SCREW - support | 3 | ||
| 5 | 44-6369 | THERMOSTAT (F) | 1 | |
| 44-6396 | THERMOSTAT (C) | 1 | ||
| 55-5754 | NUT - thermostat | 2 | ||
| 55-3013 | FLATWASHER | 2 | ||
| 6 | 98-2629 | ORIFICE - fan | 1 | |
| 55-1587 | SCREW - orifice | 6 | ||
| 55-2086 | FLATWASHER | 6 | ||
| 33-415 | GROMMET (5/8 id) | 1 | ||
| 7 | 78-808 | FAN | 1 | |
| 8 | 44-8526 | MOTOR - fan (12V, see 87D1) | 1 | |
|
10-44-8526 | Электромотор вентилятора 12V | 29 070 ₽ |
|
| 44-7447 | MOTOR - fan (24V, see 87D1) | 1 | ||
| 9 | 91-1164 | MOUNT - motor (24V) | 2 | |
| 91-629 | MOUNT - motor (12V) | 2 | ||
| 99-4520 | STRIP (neoprene) | 2 | ||
| 55-2977 | SCREW - motor mount | 6 | ||
| 55-2086 | FLATWASHER | 6 | ||
| 55-4953 | NUT | 2 | ||
| 10 | 91-888 | SUPPORT - heat exchanger | 1 | |
| 55-2995 | SCREW - support | 1 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 55-4560 | NUT | 1 | ||
| 11 | 98-3509 | PANEL - bottom | 1 | |
| 12 | 99-7699 | BLOCKOFF - drain pan | 1 | |
| 55-5639 | SCREW - blockoff | 3 | ||
| 55-2001 | FLATWASHER | 3 | ||
| 13 | 44-8000 | SENSOR - thermometer (F) | 1 | |
| 44-1979 | SENSOR - thermometer (C) | 1 | ||
| 55-570 | CLAMP - sensor | 2 | ||
| 55-2991 | SCREW - clamp | 1 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 55-2964 | LOCKWASHER | 2 | ||
| 14 | 99-7695 | SUPPORT - distributor | 1 | |
| 55-2995 | SCREW - support | 2 | ||
| 55-5201 | U-BOLT | 1 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 55-4560 | NUT | 4 | ||
| 15 | 99-7698 | ANGLE - coil | 1 | |
| 55-2995 | SCREW - angle | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 55-2964 | LOCKWASHER | 2 | ||
| 16 | 41-1514 | SWITCH - defrost termination | 1 | |
|
10-41-1514 | Датчик окончания оттайки | 14 220 ₽ |
|
| 55-5639 | SCREW - switch | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 17 | 44-8057 | HARNESS - evaporator (nosemount condenser) | 1 | |
| 44-8774 | HARNESS - evaporator (undermount condenser) | 1 | ||
| 44-7880 | CONNECTOR - shroud (4-pin) | 1 | ||
| 44-7327 | CONNECTOR - tower (1-pin) | 1 |
