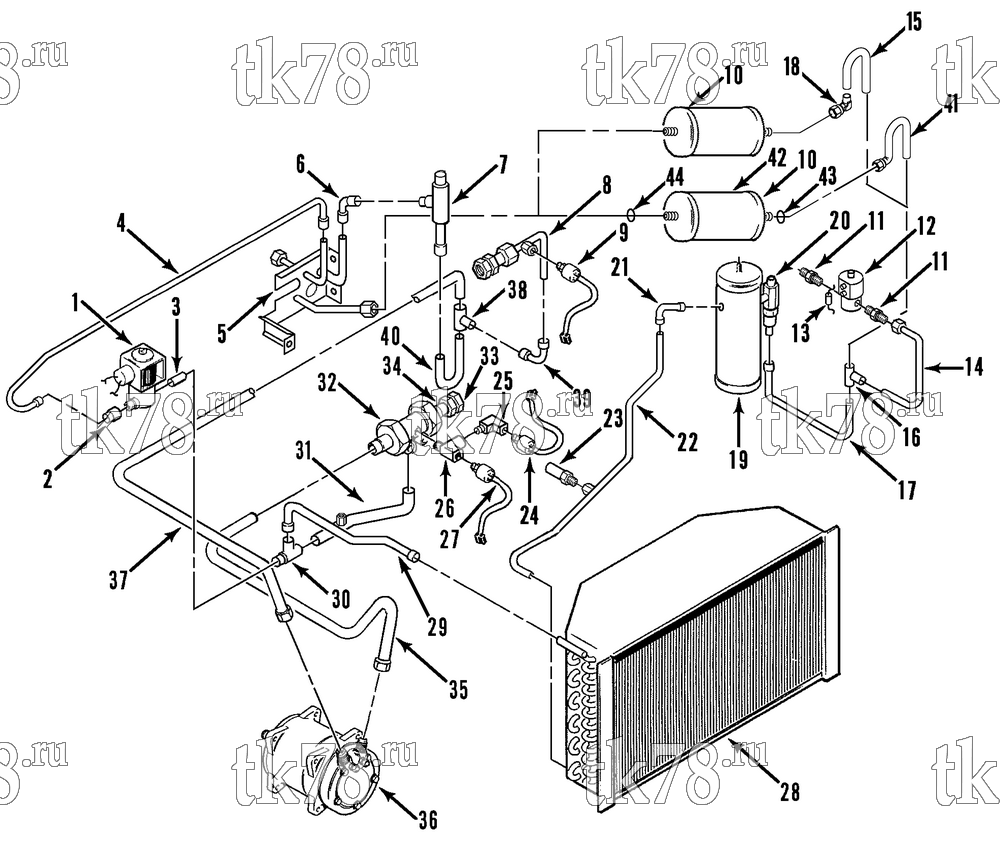

Установкa Thermo King схема REFRIGERATION COMPONENTS - CONDENSER (20s) – 87D7
Обновление от: 4/7/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 66-5221 | VALVE - solenoid (defrost, complete, 12V) | 1 | |
| 66-3693 | VALVE - solenoid (only, 12V, see 64C6) | 1 | ||
| 66-5222 | VALVE - solenoid (defrost, complete, 24V) | 1 | ||
| 66-4302 | VALVE - solenoid (only, 24V, see 64C6) | 1 | ||
| 55-3029 | SCREW - valve | 2 | ||
| 55-2202 | LOCKWASHER | 2 | ||
| 55-2201 | FLATWASHER | 2 | ||
| 2 | 55-1804 | BUSHING - valve | 1 | |
| 3 | 66-4843 | TUBE - valve | 1 | |
| 4 | 66-5062 | TUBE - defrost solenoid to bracket assembly | 1 | |
| 5 | 66-5074 | BRACKET, TUBE & ADAPTER (nosemount, before 11/92) | 1 | |
| 66-6729 | BRACKET, TUBE & ADAPTER (nosemount, after 11/92) | 1 | ||
| 55-6399 | ADAPTER - liquid/defrost (o-ring seal) | 2 | ||
| 55-6400 | ADAPTER - suction (o-ring seal) | 1 | ||
| 55-6837 | SHOULDER (o-ring seal, dehydrator) | 1 | ||
| 55-3247 | BUSHING - shoulder | 1 | ||
| 55-6838 | NUT - shoulder | 1 | ||
| 66-5708 | BRACKET, TUBE & ADAPTER (undermount) | 1 | ||
| 55-6036 | ADAPTER - liquid/defrost (o-ring seal) | 2 | ||
| 55-6786 | ADAPTER - suction (o-ring seal) | 1 | ||
| 33-1015 | O-RING - liquid/defrost | 2 | ||
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 33-2115 | O-RING - suction | 1 | ||
| 6 | 55-1468 | ELBOW - cpr valve | 1 | |
| 7 | 66-4725 | VALVE - cpr | 1 | |
| 8 | 66-5060 | TUBE & ADAPTER - suction | 1 | |
| 55-6401 | ADAPTER - suction (o-ring seal) | 1 | ||
| 66-4139 | FITTING - lpco switch | 1 | ||
| 33-1222 | O-RING (3/4) | 1 | ||
| 9 | 44-8030 | SWITCH - lpco | 1 | |
|
44-8030 OEM | Выключатель аварийный низкого давления | 16 560 ₽ |
|
| 33-768 | GASKET - switch | 1 | ||
| 10 | 66-4729 | DEHYDRATOR (flare, before 11/92) | 1 | |
|
10-66-4729 | Дегидратор, SB-I/II/III | 3 890 ₽ |
|
| 11 | 55-459 | COUPLING - solenoid | 2 | |
| 12 | 66-2009 | VALVE - pilot solenoid (12V) | 1 | |
|
10-66-2009 | Управляющий клапан, KD/MD/TD/RD-II / SB-I/II/III | 18 500 ₽ |
|
| 44-3803 | COIL - valve (3/8 bore) | 1 | ||
| 41-1525 | COIL - valve (7/16 bore) | 1 | ||
|
10-41-1525 | Катушка соленоида, 12V 8W | 15 030 ₽ |
|
| 66-2088 | VALVE - pilot solenoid (24V) | 1 | ||
| 41-325 | COIL - valve (3/8 bore) | 1 | ||
| 44-6158 | COIL - valve (7/16 bore) | 1 | ||
| 55-3029 | SCREW - valve | 2 | ||
| 55-2202 | LOCKWASHER | 2 | ||
| 55-2201 | FLATWASHER | 2 | ||
| 55-8786 | NUT - valve | 1 | ||
| 13 | 44-2756 | DIODE - assembly (solenoid) | 1 | |
|
10-44-2756 | Диод соленоида тяги | 1 920 ₽ |
|
| 14 | 66-5067 | TUBE - tee to solenoid | 1 | |
| 15 | 66-5068 | TUBE - tee to dehydrator (before 11/92) | 1 | |
| 16 | 55-6402 | TEE | 1 | |
| 17 | 66-5066 | TUBE - receiver to tee | 1 | |
| 18 | 66-4829 | FITTING - elbow (before 11/92) | 1 | |
| 55-3247 | BUSHING - tube to fitting | 1 | ||
| 19 | 67-871 | TANK - receiver (before 1/92) | 1 | |
| 67-1180 | TANK - receiver (after 1/92) | 1 | ||
| 66-6827 | INDICATOR - liquid | 1 | ||
| 66-9257 | BALL - sight glass | 1 | ||
| 33-2419 | O-RING | 1 | ||
| 55-4955 | NUT - receiver | 2 | ||
| 55-2641 | FLATWASHER | 2 | ||
| 20 | 55-2865 | COUPLING - reducing | 1 | |
| 21 | 55-1464 | ELBOW (before 1/92) | 1 | |
| 22 | 66-5063 | TUBE - condenser to receiver (before 1/92) | 1 | |
| 66-6449 | TUBE - condenser to receiver (after 1/92) | 1 | ||
| 55-3295 | FITTING - saddle | 1 | ||
| 23 | 66-7392 | VALVE - relief (see 119B8) | 1 | |
|
10-66-7392 | Предохранительный клапан | 3 480 ₽ |
|
| PP-66-7392 | Предохранительный клапан | 1 730 ₽ |
|
|
| 24 | 44-8028 | SWITCH - condenser fan | 1 | |
| 44-7991 | SWITCH - only | 1 | ||
| 25 | 55-2505 | ELBOW | 1 | |
| 26 | 55-665 | TEE | 1 | |
| 27 | 44-7992 | SWITCH - hpco | 1 | |
| 28 | 67-884 | COIL - condenser | 1 | |
| 29 | 66-4424 | TUBE - tee to condenser | 1 | |
| 66-7034 | TUBE - tee to condenser (after 1/93) | 1 | ||
| 30 | 55-5678 | TEE (5/8 x 1/2 x 5/8) | 1 | |
| 31 | 66-6993 | TUBE - tee to check valve | 1 | |
| 66-4139 | FITTING - saddle | 1 | ||
| 32 | 66-5020 | VALVE - check (see 87C12) | 1 | |
| 33 | 55-6403 | ADAPTER - discharge (o-ring seal) | 1 | |
| 33-566 | O-RING (1/2) | 1 | ||
| 34 | 66-4843 | TUBE - check valve to adapter | 1 | |
| 35 | 66-4849 | TUBE - compressor to check valve (R12) | 1 | |
| 66-6995 | TUBE - compressor to check (R134a) | 1 | ||
| 66-7035 | TUBE - compressor to check valve (after 1/93) | 1 | ||
| 36 | 102-349 | COMPRESSOR - standby (see 87D6) | 1 | |
| 37 | 66-5075 | TUBE - tee to compressor (R12) | 1 | |
| 66-6994 | TUBE (R134a) | 1 | ||
| 33-672 | O-RING | 1 | ||
|
10-33-672 | Прокладка компрессора Regulator | 410 ₽ |
|
| 33-672 OEM | Прокладка компрессора Regulator | 80 ₽ |
|
|
| 38 | 55-904 | TEE | 1 | |
| 39 | 55-1468 | ELBOW | 1 | |
| 55-5293 | BUSHING | 1 | ||
| 40 | 66-5071 | TUBE - cpr valve to tee | 1 | |
| 41 | 66-6730 | TUBE - tee to dehydrator (o-ring seal, after 11/92) | 1 | |
| 55-6356 | SHOULDER (o-ring seal) | 1 | ||
| 55-6396 | NUT - shoulder | 1 | ||
| 42 | 61-600 | DEHYDRATOR (o-ring seal, after 11/92) | 1 | |
|
US-61-600 | Дегидратор, SL/SLe/SLX/SLXe/SMX/SMX-II/SB / UT-800/1200 | 6 880 ₽ |
|
| 10-61-600 | Дегидратор, SL/SLe/SLX/SLXe/SMX/SMX-II/SB / UT-800/1200 | 3 420 ₽ |
|
|
|
PP-61-600 | Дегидратор, SL/SLe/SLX/SLXe/SMX/SMX-II/SB / UT-800/1200 | 2 090 ₽ |
|
| 43 | 33-566 | O-RING - outlet (1/2) | 1 | |
| 44 | 33-2115 | O-RING - inlet (5/8) | 1 |
