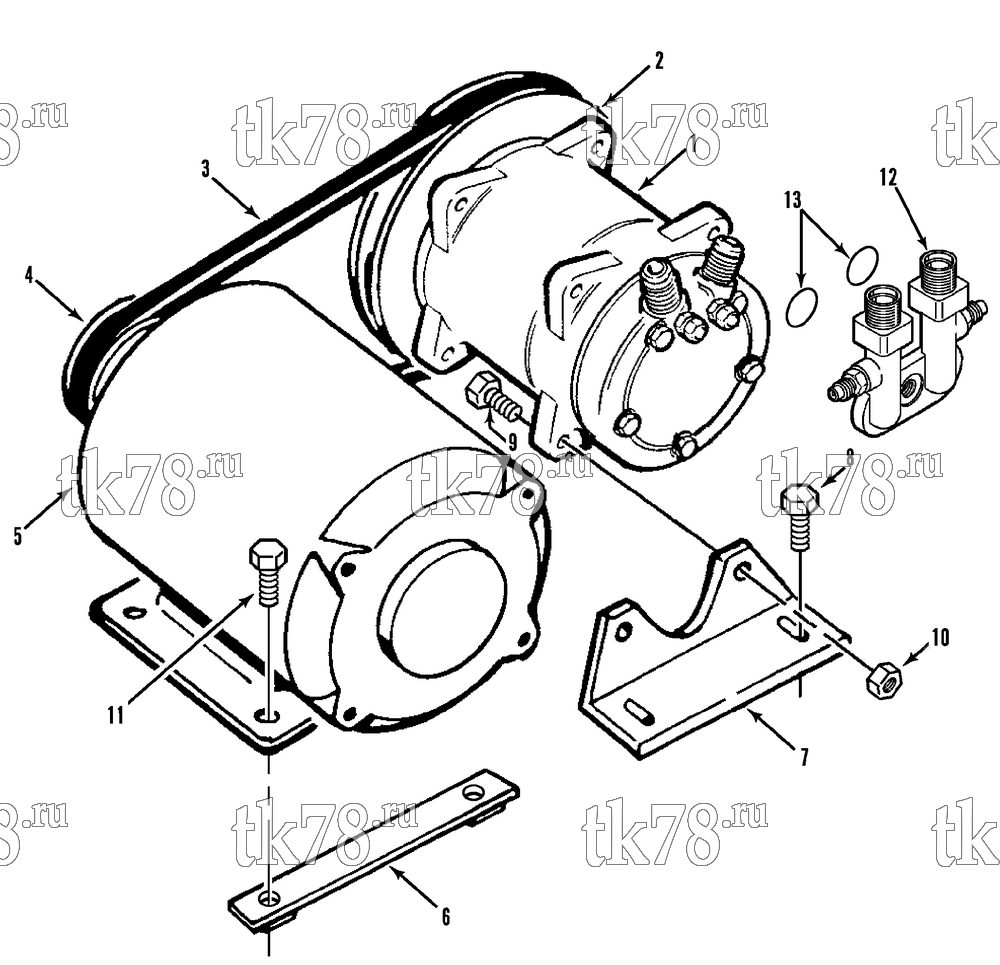

Установкa Thermo King схема STANDBY MOTOR/COMPRESSOR GROUP – 87D6
Обновление от: 10/13/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 102-349 | COMPRESSOR (Sankyo) | 1 | |
| 102-1028 | COMPRESSOR - 15XD (12V, Zexel, R134a, see note) | 1 | ||
| 102-839 | COMPRESSOR & CLUTCH - TM15-XD (24V, Zexel, R134a, see note) | 1 | ||
| 203-513 | OIL - compressor (R134a option) | 1 | ||
| EN-203-513 | Масло компрессора, R134a / R404a | 2 200 ₽ |
|
|
| 203-518 | KIT - acid test (polyol ester kit) | 1 | ||
| 2 | 77-1500 | PULLEY - compressor (Sankyo) | 1 | |
| 70-118 | KIT - hardware (pulley to compressor, Sankyo) | 1 | ||
| 3 | 78-587 | BELT - compressor (Sankyo) | 1 | |
| 10-78-587 | Ремень компрессора, JD-II, STB I, II, III | 1 890 ₽ |
|
|
| 78-336 | BELT - compressor (Zexel) | 1 | ||
| 10-78-336 | Ремень генератора, SL/SMX 50 после 93г. | 3 840 ₽ |
|
|
|
PP-78-336 | Ремень генератора, SL/SMX 50 после 93г. | 980 ₽ |
|
| 4 | 77-1502 | PULLEY - motor (60 Hz, Zexel, Sankyo before 4/92, 3.0 dia) | 1 | |
| 77-2122 | PULLEY - motor (60 cycle, Sankyo after 9/92) | 1 | ||
| 77-2059 | PULLEY - motor (50 cycle) | 1 | ||
| 77-1501 | PULLEY - motor (50 Hz, Zexel) | 1 | ||
| 77-2353 | PULLEY - motor (115/1/60, 2.5 dia) | 1 | ||
| 55-6783 | SCREW - set (pulley) | 2 | ||
| 5 | 104-497 | MOTOR (230/1/60, before 9/92) | 1 | |
| 104-587 | MOTOR (220-230/1/50-60, after 9/92, see 129B3) | 1 | ||
| 77-1498 | BEARING (drive end) | 1 | ||
| 77-1043 | BEARING (opposite drive end) | 1 | ||
| 104-559 | MOTOR (230/3/60 & 380-415/3/50, see 129B8) | 1 | ||
| 55-2789 | GRIP - cable | 1 | ||
| 33-144 | O-RING - cable grip | 1 | ||
| 55-6141 | CONNECTOR (liquid tite, EMEIA) | 1 | ||
| 55-2635 | NUT | 1 | ||
| 6 | 91-890 | NUTSTRIP - motor | 1 | |
| 7 | 99-7670 | MOUNT - compressor | 2 | |
| 8 | 55-3048 | SCREW - bracket | 4 | |
| 55-2363 | LOCKWASHER | 4 | ||
| 55-2641 | FLATWASHER | 4 | ||
| 9 | 55-2961 | SCREW - compressor | 4 | |
| 55-2641 | FLATWASHER | 8 | ||
| 10 | 55-4955 | NUT | 4 | |
| 11 | 55-2963 | SCREW - motor | 4 | |
| 55-2958 | FLATWASHER | 4 | ||
| 55-2959 | LOCKWASHER | 4 | ||
| 12 | 22-992 | MANIFOLD - compressor (90 deg, w/ o-rings) | 1 | |
|
10-22-992 | Коллектор компрессора TM-15/16/21 | 1 950 ₽ |
|
| 13 | 33-2882 | O-RING | 2 |
