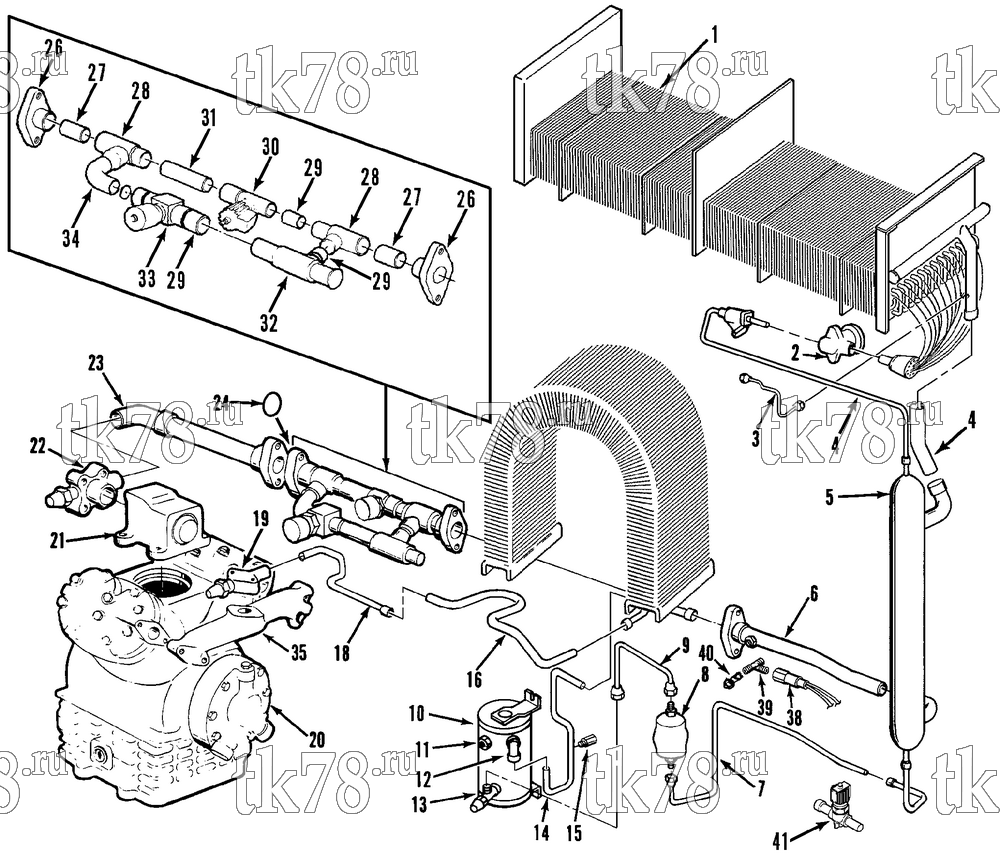

Установкa Thermo King схема REFRIGERATION COMPONENTS – 87A5
Обновление от: 7/21/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-901 | COIL - evaporator (see 87A3) | 1 | |
| 2 | 66-3877 | VALVE - expansion | 1 | |
| 66-2552 | ELEMENT - expansion valve | 1 | ||
| 91-1114 | BRACKET - valve | 1 | ||
| 55-3009 | U-BOLT | 1 | ||
| 55-4560 | NUT - u-bolt | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 55-1587 | SCREW - bracket | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 3 | 66-5197 | TUBE - equalizer | 1 | |
| 4 | 66-5196 | TUBE - strainer | 1 | |
| 66-1415 | STRAINER | 1 | ||
| 66-3967 | TUBE - strainer to expansion valve | 1 | ||
| 66-3968 | TUBE - exchanger to strainer | 1 | ||
| 5 | 67-799 | HEAT EXCHANGER | 1 | |
| 99-8949 | CLAMP - heat exchanger | 2 | ||
| 55-5641 | SCREW - clamp | 4 | ||
| 99-5966 | STRIP - cover (neoprene) | 1 | ||
| 6 | 66-5199 | TUBE - exchanger to modulator valve | 1 | |
| 66-2171 | FLANGE | 1 | ||
| 66-3615 | FITTING - saddle | 1 | ||
| 7 | 66-5198 | TUBE - dehydrator to exchanger | 1 | |
| 8 | 66-9015 | DEHYDRATOR | 1 | |
| 98-2508 | BRACKET - dehydrator | 1 | ||
| 55-4390 | HANGER - dehydrator | 1 | ||
| 55-1587 | SCREW - hanger | 1 | ||
| 55-1800 | LOCKWASHER | 1 | ||
| 55-3121 | SCREW - dehydrator | 1 | ||
| 55-4953 | NUT | 1 | ||
| 9 | 66-4905 | TUBE - receiver to dehydrator | 1 | |
| 10 | 67-870 | TANK - receiver (incl 11, 12 & 13) | 1 | |
| 11 | 66-6870 | INDICATOR - liquid | 1 | |
| 12 | 55-3441 | ELBOW - inlet | 1 | |
| 13 | 66-594 | VALVE - outlet | 1 | |
| 66-2089 | CAP - valve (brass) | 1 | ||
| 99-9601 | NAMEPLATE - liquid level | 1 | ||
| 55-1587 | SCREW - tank | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 14 | 66-4906 | TUBE - condenser to receiver | 1 | |
| 99-3060 | FITTING - saddle (valve) | 1 | ||
| 15 | 66-7392 | VALVE - relief | 1 | |
|
10-66-7392 | Предохранительный клапан | 3 480 ₽ |
|
| PP-66-7392 | Предохранительный клапан | 1 730 ₽ |
|
|
| 33-1015 | O-RING - valve | 1 | ||
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 16 | 66-5200 | TUBE - discharge to condenser | 1 | |
| 99-7477 | BRACKET - discharge tube | 1 | ||
| 99-7441 | CLAMP - tube | 1 | ||
| 55-2995 | SCREW - clamp | 2 | ||
| 55-4560 | NUT | 2 | ||
| 17 | Not Used | |||
| 18 | 66-5201 | TUBE - valve to coil | 1 | |
| 19 | 66-129 | VALVE - discharge (see 58F10) | 1 | |
|
10-66-129 | Сервисный вентиль, X426/430 | 22 340 ₽ |
|
| 20 | 102-919 | COMPRESSOR - X426 (see 231C3) | 1 | |
| 21 | 66-3826 | VALVE - throttling (see 58E7) | 1 | |
| 22 | 66-4546 | VALVE - suction (see 58F10) | 1 | |
|
10-66-4546 | Резьбовой клапан (Threaded Service Valve) | 15 910 ₽ |
|
| 23 | 66-3829 | TUBE - modulating to compressor (incl 22) | 1 | |
| 66-2171 | FLANGE | 1 | ||
| 55-5236 | ELBOW | 1 | ||
| 66-3982 | TUBE - elbow to flange | 1 | ||
| 24 | 33-1015 | O-RING - flange | 2 | |
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 25 | 67-680 | VALVE - suction modulating | 1 | |
| 26 | 66-3687 | FLANGE | 2 | |
| 27 | 66-3936 | TUBE | 2 | |
| 28 | 55-4308 | TEE | 2 | |
| 29 | 66-3937 | TUBE | 3 | |
| 30 | 66-3620 | VALVE - solenoid | 1 | |
| 66-3606 | VALVE - solenoid (only, see 137G10) | 1 | ||
| 31 | 66-3938 | TUBE | 1 | |
| 32 | 66-3860 | VALVE - pressure regulator | 1 | |
| 33 | 66-3943 | VALVE - modulation | 1 | |
| 66-3943 | VALVE - only | 1 | ||
| 44-5175 | COIL - valve | 1 | ||
| 34 | 66-3941 | ELBOW | 1 | |
| 55-2961 | SCREW - flange | 4 | ||
| 55-6395 | WASHER - special | 8 | ||
| 55-2363 | LOCKWASHER | 1 | ||
| 55-2166 | NUT | 2 | ||
| 35 | 22-750 | MANIFOLD - discharge | 1 | |
| 36 | Not Used | |||
| 37 | 67-675 | COIL - condenser (see 87A1) | 1 | |
| 38 | 44-6930 | SWITCH - lpco | 1 | |
| 39 | 55-2273 | TEE | 1 | |
| 33-768 | GASKET (1/4 flare) | 1 | ||
| 40 | 11-5513 | VALVE (Schrader) | 1 | |
| 55-1983 | CAP - valve | 1 | ||
| 41 | 66-6384 | VALVE - solenoid (liquid injection, see 121G2) | 1 | |
|
10-66-6384 | Соленоид, MD/RD-II / SB-III/ SMX/SMX-II/V-Series | 13 550 ₽ |
|
