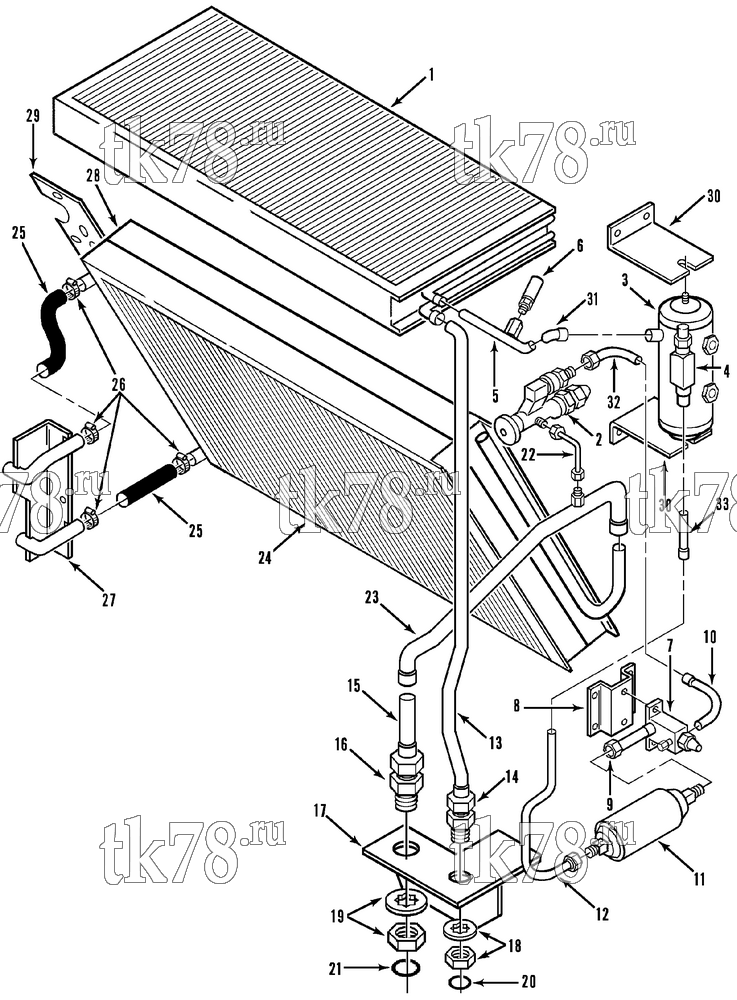

Установкa Thermo King схема REFRIGERATION COMPONENTS – 86F14
Обновление от: 7/16/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-897 | COIL - condenser | 1 | |
| 91-2711 | NUTSTRIP - coil | 2 | ||
| 55-2977 | SCREW - coil | 12 | ||
| 55-2086 | FLATWASHER | 12 | ||
| 55-1800 | LOCKWASHER | 9 | ||
| 55-4953 | NUT | 9 | ||
| 2 | 66-7393 | VALVE - expansion (R22) | 1 | |
| 66-3592 | SCREEN - inlet | 1 | ||
| 66-4213 | ELEMENT - power | 1 | ||
| 55-3547 | U-BOLT - valve | 1 | ||
| 55-4560 | NUT | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 3 | 67-2325 | TANK - receiver (see 83B7) | 1 | |
| 55-4955 | NUT - tank | 2 | ||
| 55-2641 | FLATWASHER | 2 | ||
| 4 | 66-2170 | CAP - valve (plastic) | 1 | |
| 5 | 66-5155 | TUBE - receiver to condenser | 1 | |
| 99-3060 | FITTING - saddle | 1 | ||
| 6 | 66-7392 | VALVE - relief | 1 | |
|
10-66-7392 | Предохранительный клапан | 3 480 ₽ |
|
| PP-66-7392 | Предохранительный клапан | 1 730 ₽ |
|
|
| 33-1015 | O-RING - relief valve | 1 | ||
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 7 | 66-4694 | VALVE - shutoff | 1 | |
| 66-2170 | CAP - valve | 1 | ||
| 55-2977 | SCREW - valve/bracket | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-4953 | NUT | 4 | ||
| 8 | 91-1070 | BRACKET - valve | 1 | |
| 9 | 66-5153 | TUBE - dehydrator to valve | 1 | |
| 10 | 66-5154 | TUBE - valve to expansion | 1 | |
| 11 | 66-4857 | DEHYDRATOR | 1 | |
| 55-2365 | HANGER - dehydrator | 1 | ||
| 55-2969 | SCREW - hanger | 1 | ||
| 55-2958 | FLATWASHER | 1 | ||
| 55-4954 | NUT | 1 | ||
| 55-3095 | SCREW - dehydrator | 1 | ||
| 55-4953 | NUT | 1 | ||
| 12 | 66-4697 | TUBE - receiver to dehydrator | 1 | |
| 13 | 66-5158 | TUBE - discharge | 1 | |
| 14 | 55-5933 | ADAPTER | 1 | |
| 15 | 66-5157 | TUBE - suction | 1 | |
| 16 | 55-7537 | ADAPTER - saddle | 1 | |
| 17 | 91-1071 | BRACKET - tubes | 1 | |
| 55-2977 | SCREW - bracket | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-4953 | NUT | 2 | ||
| 18 | 55-5740 | NUT - adapter (#16) | 1 | |
| 55-5741 | LOCKWASHER | 1 | ||
| 19 | 55-5739 | NUT - adapter (#20) | 1 | |
| 55-5742 | LOCKWASHER | 1 | ||
| 20 | 33-1785 | O-RING - discharge | 1 | |
| 21 | 33-1777 | O-RING - suction | 1 | |
| 22 | 66-5159 | TUBE - equalizer | 1 | |
| 23 | 66-5160 | TUBE - suction | 1 | |
| 66-874 | FITTING - flare | 1 | ||
| 24 | 67-898 | COIL - heater | 1 | |
| 99-2971 | NUTSTRIP - coil | 2 | ||
| 55-2264 | RIVET - nutstrip | 4 | ||
| 25 | 12-419 | HOSE (3/4 id x 25 ft, silicone) | A/R | |
| 26 | 55-5400 | CLAMP - hose | 4 | |
| 27 | 91-1068 | PLATE & TUBE - assembly | 1 | |
| 55-2977 | SCREW - plate | 3 | ||
| 55-2086 | FLATWASHER | 6 | ||
| 55-4953 | NUT | 3 | ||
| 99-7876 | NAMEPLATE - Water Inlet | 1 | ||
| 28 | 67-899 | COIL - evaporator | 1 | |
| 99-7803 | NUTSTRIP - coil | 3 | ||
| 55-1714 | RIVET - strip | 6 | ||
| 33-315 | GROMMET (1-5/16 id) | 2 | ||
| 33-572 | GROMMET (3/4 id) | 1 | ||
| 29 | 91-1050 | BRACKET - coil (left) | 1 | |
| 91-1051 | BRACKET - coil (right) | 1 | ||
| 55-2969 | SCREW - bracket to frame | 4 | ||
| 55-5032 | NUT - captive | 4 | ||
| 55-2958 | FLATWASHER | 8 | ||
| 55-2959 | LOCKWASHER | 4 | ||
| 30 | 91-1069 | BRACKET - receiver | 2 | |
| 55-2977 | SCREW - bracket | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-4953 | NUT | 4 | ||
| 31 | 55-2187 | ELBOW | 1 | |
| 32 | 66-5156 | TUBE - expansion inlet | 1 | |
| 66-3571 | FITTING - saddle | 1 | ||
| 33 | 66-5151 | TUBE - receiver tank outlet | 1 |
