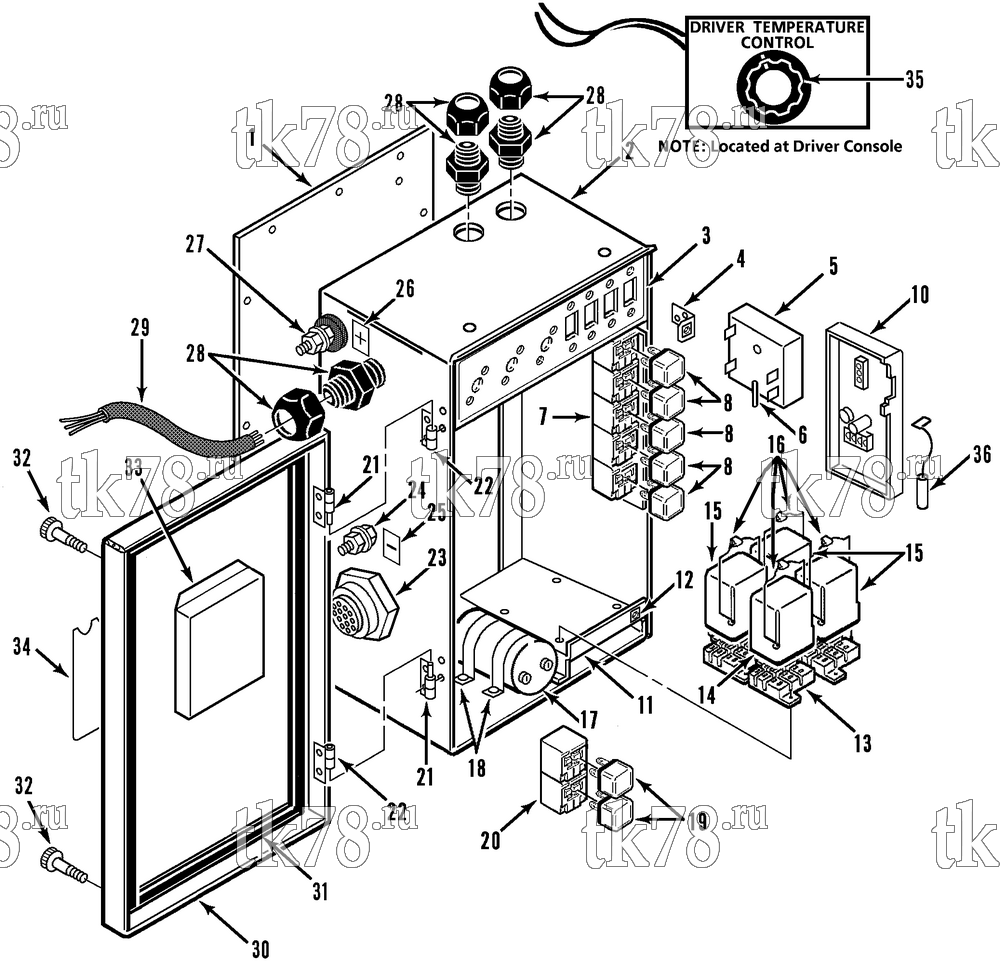

Установкa Thermo King схема CONTROL BOX (T9-M1 & M2) – 86E6
Обновление от: 3/4/98
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 91-1022 | PANEL - box (rear, see 86E7) | 1 | |
| 55-2991 | SCREW - back panel | 12 | ||
| 55-2001 | FLATWASHER | 24 | ||
| 55-4560 | NUT | 12 | ||
| 2 | 91-1024 | BOX - control | 1 | |
| 55-2991 | SCREW - box | 8 | ||
| 55-2001 | FLATWASHER | 16 | ||
| 55-4560 | NUT | 8 | ||
| 3 | 91-1026 | BRACKET - circuit breaker (see 86E8) | 1 | |
| 55-2995 | SCREW - bracket | 2 | ||
| 55-2964 | LOCKWASHER | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 4 | 99-9884 | BRACKET - cover | 1 | |
| 55-3059 | NUT - captive | 1 | ||
| 55-3015 | SCREW - bracket | 2 | ||
| 55-2996 | LOCKWASHER | 2 | ||
| 5 | 44-6428 | TIMER - solid state | 1 | |
| 44-6182 | RESISTOR (220K ohm) | 1 | ||
| 55-5622 | SCREW - timer | 1 | ||
| 55-3013 | FLATWASHER | 2 | ||
| 55-3014 | LOCKWASHER | 1 | ||
| 55-2999 | NUT | 1 | ||
| 6 | 44-8025 | WIRE - bus bar | 1 | |
| 7 | 44-5537 | SOCKET - relay | 5 | |
| 55-5975 | SCREW - socket | 3 | ||
| 55-2996 | LOCKWASHER | 3 | ||
| 55-2001 | FLATWASHER | 3 | ||
| 8 | 44-9112 | RELAY - mini (1pdt) | 5 | |
| 9 | Not Used | |||
| 10 | 44-8479 | THERMOSTAT | 1 | |
| 55-3015 | SCREW - thermostat | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 55-2964 | LOCKWASHER | 2 | ||
| 55-2965 | NUT | 2 | ||
| 11 | 91-1028 | BRACKET - relay | 1 | |
| 55-3015 | SCREW - bracket | 2 | ||
| 55-2996 | LOCKWASHER | 2 | ||
| 12 | 55-3059 | NUT - captive (cover) | 1 | |
| 13 | 44-3184 | SOCKET - relay | 4 | |
| 44-8011 | RESISTOR (4.7K ohm) | 1 | ||
| 14 | 44-4025 | RELAY (3pdt, 28VDC) | 1 | |
| 15 | 44-3186 | RELAY (3pdt, 14VDC) | 3 | |
|
10-44-3186 | Реле оттайки, KD/MD/RD/TD/URD-III / SB-I/II/III / SMX | 3 440 ₽ |
|
| 16 | 99-2027 | SPRING - holddown | 4 | |
| 55-2270 | RIVET - spring | 8 | ||
| 55-2771 | CLAMP - speednut | 4 | ||
| 17 | 44-4055 | CAPACITOR | 1 | |
| 18 | 55-5618 | CLAMP - capacitor | 2 | |
| 55-2995 | SCREW - clamp | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 55-2964 | LOCKWASHER | 2 | ||
| 19 | 44-9111 | RELAY - mini (1pdt) | 2 | |
|
10-44-9111 | Реле | 1 310 ₽ |
|
| 20 | 44-5537 | SOCKET - relay | 2 | |
| 55-5975 | SCREW - socket | 2 | ||
| 55-2996 | LOCKWASHER | 2 | ||
| 55-2965 | NUT | 2 | ||
| 21 | 99-8057 | HINGE - door (male) | 2 | |
| 22 | 99-8056 | HINGE - door (female) | 2 | |
| 55-2995 | SCREW - hinge | 8 | ||
| 55-2001 | FLATWASHER | 8 | ||
| 55-2964 | LOCKWASHER | 8 | ||
| 55-2965 | NUT | 8 | ||
| 23 | 44-8009 | CONNECTOR & HARNESS | 1 | |
| 44-8010 | CONNECTOR - harness (16-pin) | 1 | ||
| 44-6851 | PIN | 16 | ||
| 24 | 55-3167 | STUD - terminal (negative) | 1 | |
| 55-671 | NUT (hexjam) | 4 | ||
| 55-3066 | LOCKWASHER (internal) | 3 | ||
| 55-448 | FLATWASHER | 2 | ||
| 55-3672 | LOCKWASHER (internal/external) | 1 | ||
| 25 | 99-4661 | NAMEPLATE - Negative | 1 | |
| 26 | 99-4660 | NAMEPLATE - Positive | 1 | |
| 27 | 55-3167 | STUD - terminal (positive) | 1 | |
| 55-5901 | WASHER - shoulder (thermoplastic) | 1 | ||
| 55-5902 | FLATWASHER (thermoplastic) | 1 | ||
| 55-671 | NUT (hexjam) | 4 | ||
| 55-3066 | LOCKWASHER (internal) | 4 | ||
| 55-448 | FLATWASHER | 4 | ||
| 28 | 55-5900 | CONNECTOR - liquid tite | 11 | |
| 29 | 44-8737 | HARNESS - control | 1 | |
| 44-7881 | CONNECTOR - tower (4-pin) | 1 | ||
| 99-2477 | NAMEPLATE - 24 Volt | 1 | ||
| 30 | 91-1025 | COVER - control box | 1 | |
| 31 | 99-8986 | STRIP - gasket (25 ft) | A/R | |
| 32 | 55-5396 | SCREW - cover (self retaining) | 2 | |
| 33 | 44-8005 | CONVERTER - voltage | 1 | |
| 55-4576 | SCREW - converter | 4 | ||
| 44-7849 | STANDOFF | 4 | ||
| 55-3013 | FLATWASHER | 4 | ||
| 55-3014 | LOCKWASHER | 4 | ||
| 55-2999 | NUT | 4 | ||
| 34 | 99-2789 | NAMEPLATE - TK Logo | 1 | |
| 35 | 44-7477 | POTENTIOMETER - driver temperature control | 1 | |
| 91-903 | KNOB - only | 1 | ||
| 36 | 44-8026 | SENSOR - thermostat | 1 | |
| 44-9923 | SENSOR - only | 1 | ||
| 91-1106 | BRACKET - sensor | 1 | ||
| 55-546 | CLAMP | 1 | ||
| 55-3027 | SCREW - clamp | 1 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 55-4560 | NUT | 1 |
