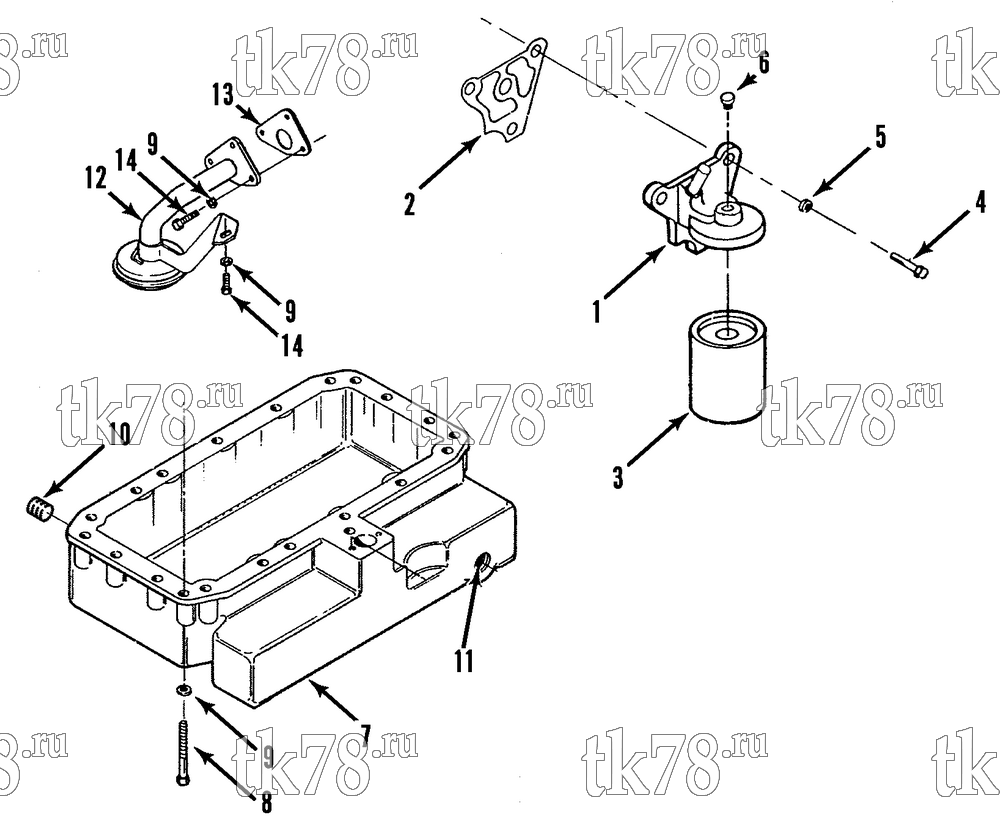

Установкa Thermo King схема OIL FILTER & SUMP GROUP – 86D7
Обновление от: 1/10/96
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 11-7019 | ADAPTER - oil filter | 1 | |
| 2 | 33-1861 | GASKET - adapter | 1 | |
| 3 | 11-9099 | FILTER - oil | 1 | |
|
US-11-9099 | Фильтр масляный, SB-I/II/III | 2 930 ₽ |
|
|
10-11-9099 | Фильтр масляный, SB-I/II/III | 1 260 ₽ |
|
| 4 | 55-6121 | SCREW - adapter | 3 | |
| 5 | 55-6122 | FLATWASHER | 3 | |
| 6 | 55-6075 | PLUG - pipe | 1 | |
| 7 | 12-551 | BASE - oil | 1 | |
| 8 | 55-6101 | SCREW - oil base (35 mm lg) | 17 | |
| 55-6118 | SCREW - oil base (75 mm lg) | 8 | ||
| 9 | 55-6083 | FLATWASHER | 25 | |
| 10 | 55-6119 | PLUG (3/4) | 2 | |
| 11 | 55-6120 | PLUG (plastic) | 1 | |
| 12 | 11-6838 | PICKUP - oil | 1 | |
| 13 | 33-1844 | GASKET - pickup | 1 | |
| 14 | 55-6109 | SCREW - pickup (20 mm lg) | 2 | |
| 55-6108 | SCREW - pickup (60 mm lg) | 2 |
