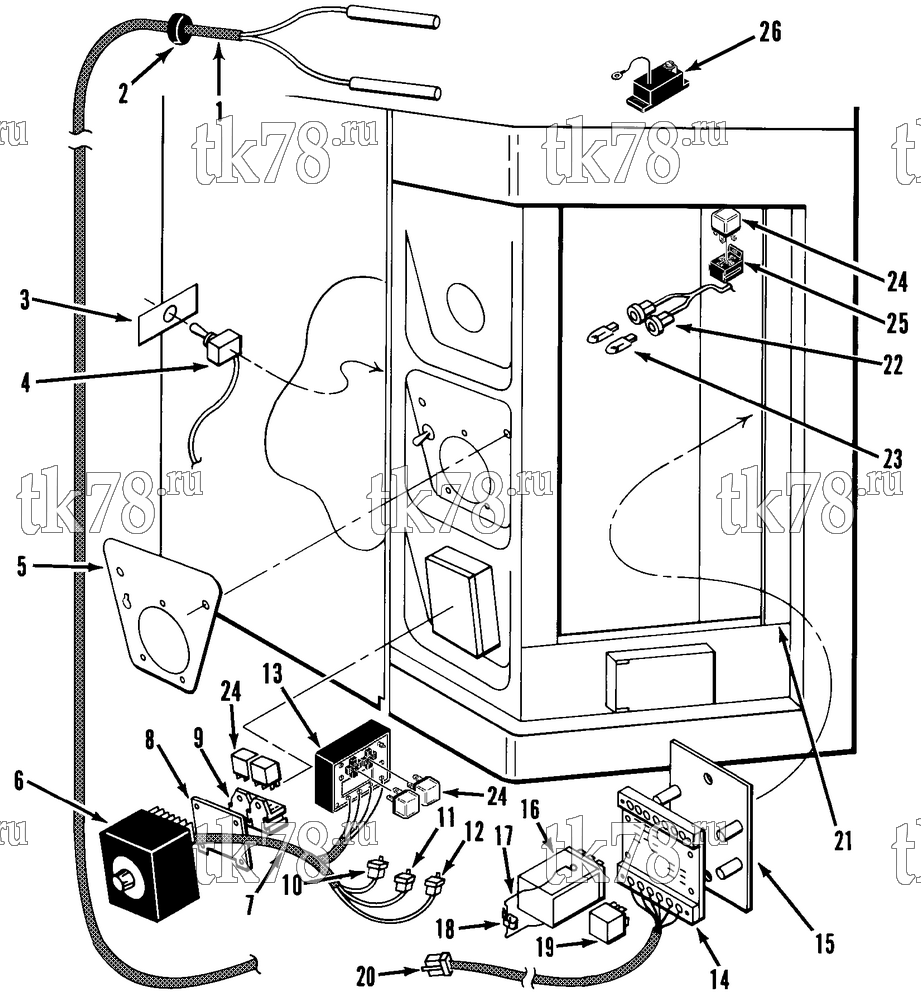

Установкa Thermo King схема REFRIGERATION SYSTEM MONITOR – 84D6
Обновление от: 3/23/98
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 44-7754 | SENSOR - Refrigeration System Alert | 1 | |
| 2 | 33-547 | GROMMET - damper panel (3/8 id) | 1 | |
| 3 | 91-665 | NAMEPLATE - switch reset | 1 | |
| 4 | 44-7759 | HARNESS & SWITCH - Refrigeration System Alert | 1 | |
| 44-2899 | SWITCH - refrigeration system alert reset | 1 | ||
| 5 | 91-666 | NAMEPLATE - gauge panel (w/ Refrigeration System Alert) | 1 | |
| 6 | 45-1404 | THERMOSTAT - TG IV (B type, Thermoguard) | 1 | |
| 91-8691 | DIAL - thermostat | 1 | ||
| 7 | 44-9052 | HARNESS - thermostat (w/o C/S, 3D95936G01) | 1 | |
| 44-8109 | HARNESS - thermostat (w/ C/S, 3D95937G02) | 1 | ||
| 44-9053 | HARNESS - thermostat (w/ FS, 3D97787G02) | 1 | ||
| 8 | 99-9311 | BRACKET - relay | 1 | |
| 9 | 44-5537 | SOCKET - relay | 2 | |
| 55-5975 | SCREW - socket | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 55-2965 | NUT | 2 | ||
| 10 | 44-4925 | CONNECTOR (to Refrigeration System Alert harness) | 1 | |
| 11 | 44-5600 | CONNECTOR - main harness | 1 | |
| 12 | 44-5718 | CONNECTOR - Cycle Sentry harness | 1 | |
| 13 | 44-8679 | TIMER - FS II | 1 | |
|
10-44-8679 | Таймер | 18 450 ₽ |
|
| 14 | 44-7755 | BOARD - Refrigeration System Alert (complete) | 1 | |
| 44-7756 | BOARD - interface | 1 | ||
| 15 | 91-664 | PLATE - backing | 1 | |
| 55-5407 | SCREW - plate to backing | 4 | ||
| 16 | 44-8100 | MODULE - control (Refrigeration System Alert) | 1 | |
| 17 | 99-8475 | HOLDDOWN - module | 1 | |
| 55-3035 | RIVET - holddown | 2 | ||
| 18 | 55-2771 | CLAMP - speednut | 1 | |
| 19 | 41-895 | RELAY - mini | 1 | |
|
30-41-895 | Реле | 1 650 ₽ |
|
| 99-5400 | BOLTSTRIP - board assembly | 1 | ||
| 55-1725 | RIVET - boltstrip | 1 | ||
| 55-2086 | FLATWASHER - board | 2 | ||
| 55-4953 | NUT | 2 | ||
| 20 | 44-7760 | HARNESS - Refrigeration System Alert module to thermostat harness | 1 | |
| 44-5030 | CONNECTOR | 1 | ||
| 21 | 98-3457 | BOX - control (only) | 1 | |
| 22 | 44-7761 | HARNESS - indicator light | 1 | |
| 44-6462 | SOCKET - light | 2 | ||
| 44-7054 | TERMINAL | 4 | ||
| 23 | 44-3711 | BULB - indicator light | 2 | |
| 24 | 44-9111 | RELAY - mini | 4 | |
|
10-44-9111 | Реле | 1 310 ₽ |
|
| 25 | 44-9054 | HARNESS - ambient relay | 1 | |
| 44-9055 | HARNESS - ambient relay (w/ C/S) | 1 | ||
| 26 | 44-8729 | SWITCH - ambient temperature | 1 |
