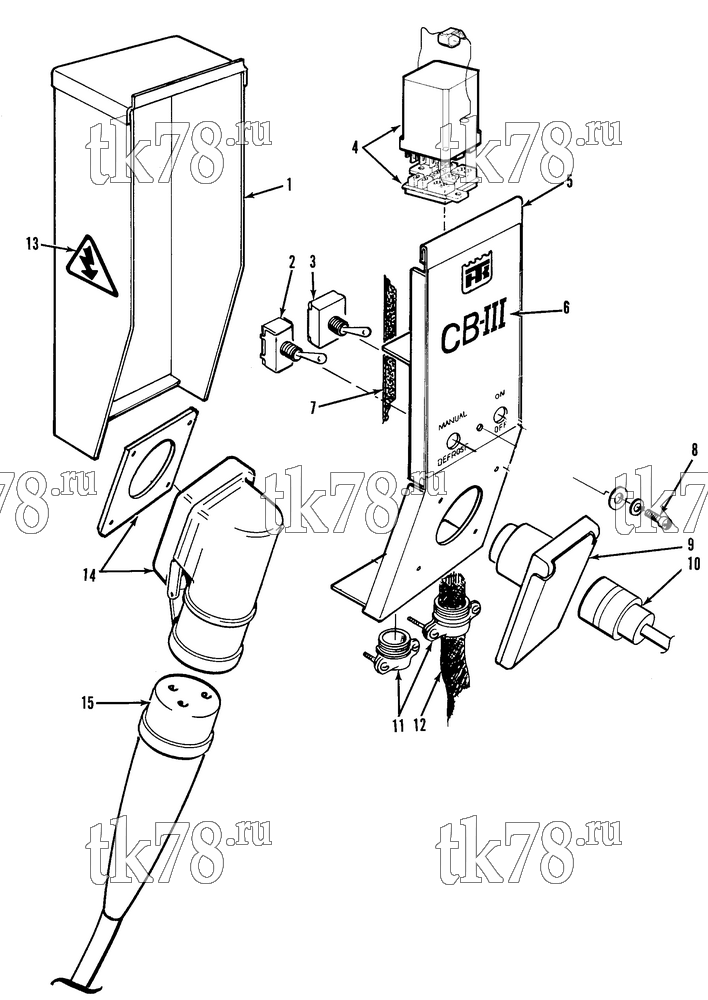

Установкa Thermo King схема REMOTE CONTROL BOX – 83A13
Обновление от: 5/30/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 99-7054 | BOX - only | 1 | |
| 2 | 44-1164 | SWITCH - manual defrost | 1 | |
|
P-10-01129-01 | Выключатель разморозки, Genesis/Thunderbird | 2 890 ₽ |
|
|
10-44-1164 | Выключатель размораживания, JD/KD/MD/RD/TD-I/II / SB-I/II/III | 2 890 ₽ |
|
| 3 | 44-490 | SWITCH - on/off | 1 | |
|
10-44-490 | Выключатель | 2 590 ₽ |
|
| 55-5746 | WASHER - sealing (switches) | 2 | ||
| 4 | 44-3186 | RELAY - defrost (12VDC) | 1 | |
|
10-44-3186 | Реле оттайки, KD/MD/RD/TD/URD-III / SB-I/II/III / SMX | 3 440 ₽ |
|
| 44-4025 | RELAY - defrost (24V) | 1 | ||
| 99-2027 | SPRING - holddown | 1 | ||
| 55-2270 | RIVET - spring | 2 | ||
| 55-2771 | CLAMP - speednut | 1 | ||
| 44-3184 | SOCKET - relay | 1 | ||
| 5 | 99-7053 | COVER - box | 1 | |
| 91-608 | COVER - box (EMEIA) | 1 | ||
| 55-2995 | SCREW - cover | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 55-2964 | LOCKWASHER | 2 | ||
| 6 | 91-497 | NAMEPLATE - cover | 1 | |
| 91-609 | NAMEPLATE - cover (EMEIA) | 1 | ||
| 7 | 99-4976 | STRIP - gasket (cover) | 2 | |
| 8 | 55-2269 | SCREW - ground | 1 | |
| 55-2996 | LOCKWASHER | 1 | ||
| 55-2001 | FLATWASHER | 1 | ||
| 55-2965 | NUT | 2 | ||
| 9 | 44-4656 | RECEPTACLE (20 amp, 230/3/60) | 1 | |
| 44-5825 | RECEPTACLE (20 amp, 380-415-460/3/50-60) | 1 | ||
| 44-4699 | RECEPTACLE (30A, 220-230/1/50-60) | 1 | ||
| 55-3511 | SCREW - receptacle | 4 | ||
| 55-2201 | FLATWASHER | 4 | ||
| 55-2202 | LOCKWASHER | 4 | ||
| 55-4223 | LOCKNUT | 4 | ||
| 55-3031 | SCREW - receptacle (EMEIA) | 1 | ||
| 55-2965 | NUT | 4 | ||
| 10 | 44-4646 | PLUG (mate to 44-4656) | 1 | |
| 44-4700 | PLUG (mate to 44-5825) | 1 | ||
| 44-4697 | PLUG (mate to 44-4699) | 1 | ||
| 11 | 55-3831 | CONNECTOR - cable | 1 | |
| 12 | 44-7678 | HARNESS - remote box | 1 | |
| 44-6972 | HARNESS - remote box (EMEIA) | 1 | ||
| 44-4776 | DIODE | 1 | ||
| 13 | 99-7834 | NAMEPLATE - Caution | 1 | |
| 14 | 44-7731 | RECEPTACLE (32 amp, 220/1/50, EMEIA) | 1 | |
| 44-6971 | RECEPTACLE (32 amp, 220/3/50, EMEIA) | 1 | ||
| 44-6875 | RECEPTACLE (32 amp, 380-415/3/50, EMEIA) | 1 | ||
| 99-9052 | COVER | 1 | ||
| 33-1697 | GASKET - cover | 2 | ||
| 15 | 44-7732 | RECEPTACLE - power (mate for 44-7731, EMEIA) | 1 | |
| 44-7565 | PLUG - EMEIA (mate to 44-6971) | 1 | ||
| 44-6685 | PLUG (EMEIA, mate to 44-6875) | 1 |
