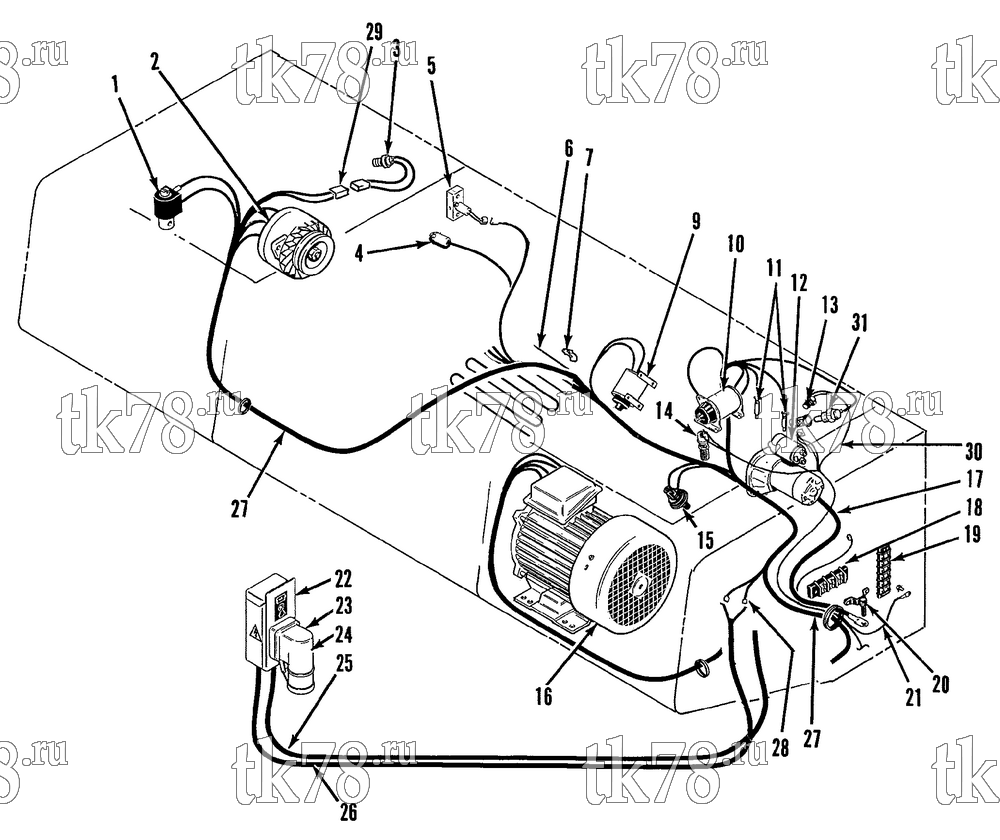

Установкa Thermo King схема ELECTRICAL COMPONENTS (Before 8/91) – 81G6
Обновление от: 1/29/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 66-2009 | VALVE - pilot solenoid | 1 | |
|
10-66-2009 | Управляющий клапан, KD/MD/TD/RD-II / SB-I/II/III | 18 500 ₽ |
|
| 44-3803 | COIL (3/8 bore) | 1 | ||
| 41-1525 | COIL (7/16 bore) | 1 | ||
|
10-41-1525 | Катушка соленоида, 12V 8W | 15 030 ₽ |
|
| 55-4523 | SCREW - solenoid | 2 | ||
| 55-2202 | LOCKWASHER | 2 | ||
| 55-2201 | FLATWASHER | 2 | ||
| 55-8786 | NUT - valve | 1 | ||
| 2 | 41-2194 | ALTERNATOR (23 amp, model EA, see 78A8) | 1 | |
|
10-41-2194 | Генератор 23A, KD/MD/RD/TD-II / TS / SB-II/III | 19 720 ₽ |
|
| 41-2194 | ALTERNATOR (23 amp, model 8MR) | 1 | ||
|
|
10-41-2194 | Генератор 23A, KD/MD/RD/TD-II / TS / SB-II/III | 19 720 ₽ |
|
| 3 | 44-5305 | SWITCH - hpco | 1 | |
|
10-44-5305 | Выключатель высокого давления (R12) | 3 950 ₽ |
|
| 4 | 44-3155 | SWITCH - defrost termination | 1 | |
|
10-44-3155 | Выключатель оттайки, KD/MD/RD-I / SB-I/II | 4 780 ₽ |
|
| 55-5639 | SCREW - switch | 2 | ||
| 5 | 44-6691 | SWITCH - remote temperature (SD-I 50 only) | 1 | |
| 55-3029 | SCREW - sensor | 2 | ||
| 55-2201 | FLATWASHER | 4 | ||
| 55-4223 | NUT | 2 | ||
| 6 | 45-1356 | HEATER (600W, SD-I 50 only) | 3 | |
| 7 | 91-240 | RETAINER - heater | 12 | |
| 9 | 44-2823 | SOLENOID - damper | 1 | |
|
10-44-2823 | Соленоид оборотов двигателя | 5 370 ₽ |
|
| 10 | 44-7441 | SOLENOID - throttle | 1 | |
| 11 | 41-6582 | GLOW PLUG | 2 | |
|
10-41-6582 | Свеча накаливания, Yanmar 249 / 366 / 374 / 388 / 395 | 2 470 ₽ |
|
|
10-42-916 | Свеча накаливания, Yanmar 370 / 376 | 2 340 ₽ |
|
| PP-42-916 | Свеча накаливания, Yanmar 370 / 376 | 1 190 ₽ |
|
|
| PP-41-6582 | Свеча накаливания, Yanmar 249 / 366 / 374 / 388 / 395 | 1 190 ₽ |
|
|
| 12 | 45-1335 | STARTER | 1 | |
| US-45-1335 | Стартер, Yanmar 244 | 57 980 ₽ |
|
|
| 10-45-1335 | Стартер | 27 960 ₽ |
|
|
| 13 | 44-3018 | SWITCH - water temperature | 1 | |
|
10-44-3018 | Датчик температуры двигателя, Yanmar / Isuzu | 5 830 ₽ |
|
| PP-44-3018 | Датчик температуры двигателя, Yanmar / Isuzu | 2 200 ₽ |
|
|
| 55-2116 | BUSHING - switch | 1 | ||
| 14 | 44-7443 | SENSOR - rpm (Cycle Sentry) | 1 | |
| 15 | 41-6865 | SWITCH - oil pressure | 1 | |
|
10-41-6865 | Сенсор давления масла, Yanmar, кроме 370 / 376 | 9 310 ₽ |
|
|
PP-41-6865 | Сенсор давления масла, Yanmar, кроме 370 / 376 | 2 720 ₽ |
|
| 16 | 104-488 | MOTOR (380/3/50, 3hp, see note) | 1 | |
| 104-609 | MOTOR (5hp, see note) | 1 | ||
| 17 | 44-7598 | CABLE - battery | 1 | |
| 18 | 44-5555 | BOARD - terminal (3 terminal) | 1 | |
| 91-275 | MARKSTRIP | 1 | ||
| 19 | 44-1728 | BOARD - terminal (6 terminal) | 1 | |
| 91-277 | MARKSTRIP | 1 | ||
| 44-2915 | STRIP - jumper | 1 | ||
| 55-5665 | SCREW - boards | 4 | ||
| 55-2201 | FLATWASHER | 8 | ||
| 55-4223 | NUT | 4 | ||
| 20 | 44-7997 | INSULATOR - battery terminal | 1 | |
| 55-5195 | SCREW (3/8) | 1 | ||
| 55-402 | FLATWASHER | 3 | ||
| 55-416 | LOCKWASHER | 3 | ||
| 55-3227 | NUT - jam | 3 | ||
| 55-3404 | SCREW - insulator | 2 | ||
| 55-2201 | FLATWASHER | 4 | ||
| 55-4223 | NUT | 2 | ||
| 21 | 44-7579 | HARNESS - ground | 1 | |
| 22 | 99-9845 | BOX - power receptacle | 1 | |
| 55-2979 | SCREW - box | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-5984 | NUT - blind | 2 | ||
| 23 | 44-6971 | RECEPTACLE (220V) | 1 | |
| 24 | 44-7576 | RECEPTACLE - power (220V) | 1 | |
| 25 | 44-7574 | HARNESS - diesel/electric | 1 | |
| 44-5814 | CONNECTOR (4-pin, female) | 1 | ||
| 44-5827 | CONNECTOR (4-pin, male) | 1 | ||
| 26 | 44-7448 | CABLE - power | 1 | |
| 27 | 44-7575 | HARNESS - main | 1 | |
| 28 | 44-5814 | CONNECTOR (4-pin, female) | 1 | |
| 44-5827 | CONNECTOR (4-pin, male) | 1 | ||
| 29 | 44-5219 | CONNECTOR (2-pin, female) | 1 |
