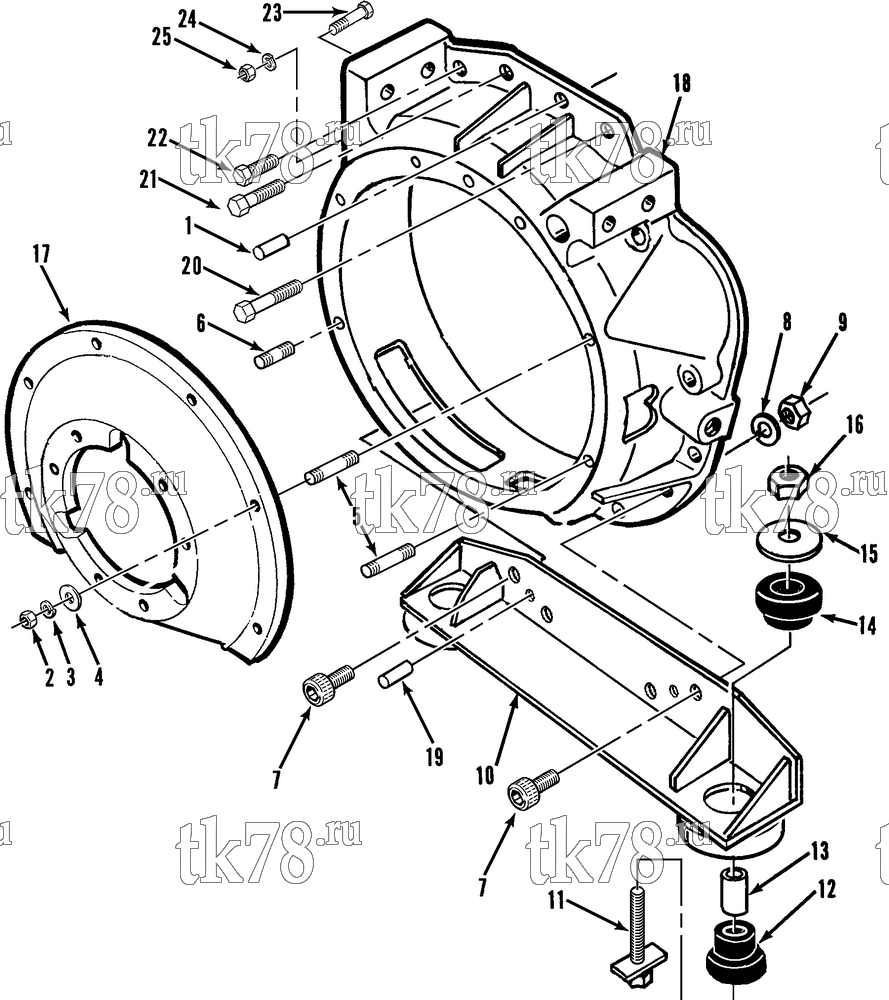

Установкa Thermo King схема ENGINE & COMPRESSOR GROUP (di 2.2) – 81D5
Обновление от: 12/9/98
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 55-5578 | PIN - dowel (locator) | 2 | |
| 2 | 55-285 | NUT - compressor | 6 | |
| 3 | 55-375 | LOCKWASHER | 6 | |
| 4 | 55-402 | FLATWASHER | 6 | |
| 5 | 55-5753 | STUD - compressor (M10 x 2-1/2 lg, before 1/1/88) | 2 | |
| 55-1525 | STUD - compressor (3/8 x 2-1/2 lg, 1/1/88 & after) | 2 | ||
| 6 | 55-5752 | STUD - compressor (M10 x 1-3/4 lg, before 1/1/88) | 4 | |
| 55-1487 | STUD - compressor (3/8 x 1-3/4 lg, 1/1/88 & after) | 4 | ||
| 7 | 55-4266 | SCREW - engine to bracket | 4 | |
| 8 | 55-1418 | WASHER - special | 4 | |
| 9 | 55-285 | NUT | 4 | |
| 10 | 98-2731 | BRACKET - engine (30s) | 1 | |
| 98-3405 | BRACKET - engine (50s) | 1 | ||
| 11 | 99-798 | BOLT - power tray | 4 | |
| 12 | 99-1433 | MOUNT - vibration | 4 | |
|
10-99-1433 | Опора двигателя Isuzu 2.2 DI (D201), SB/SB-I/SB-II/SB-III | 1 530 ₽ |
|
| 13 | 99-1642 | SPACER | 4 | |
| 14 | 99-1916 | MOUNT - vibration | 4 | |
|
10-99-1916 | Опора | 1 140 ₽ |
|
| 15 | 55-5749 | WASHER | 4 | |
| 16 | 55-4963 | NUT | 4 | |
| 17 | 22-723 | FLANGE - compressor drive (30s 12/29/86 & after, see 76F8) | 1 | |
|
10-22-723 | Фланец компрессора | 16 580 ₽ |
|
| 22-734 | FLANGE - compressor drive (50s & AC units, see 76F8) | 1 | ||
| 18 | 12-439 | HOUSING - flywheel (30s) | 1 | |
| 12-448 | HOUSING - flywheel (50s, see 70C6) | 1 | ||
| 19 | 55-5576 | PIN - dowel | 2 | |
| 20 | 55-5477 | SCREW - housing (135 mm) | 1 | |
| 21 | 55-5476 | SCREW - housing (85 mm) | 2 | |
| 22 | 55-5478 | SCREW - housing (75 mm) | 1 | |
| 55-5481 | LOCKWASHER | 4 | ||
| 23 | 55-5463 | BOLT - reamer | 1 | |
| 24 | 55-5481 | LOCKWASHER | 1 | |
| 25 | 55-2430 | NUT | 1 | |
| 90-153 | KIT - Easy Ride Power Pak mounts | 1 |
