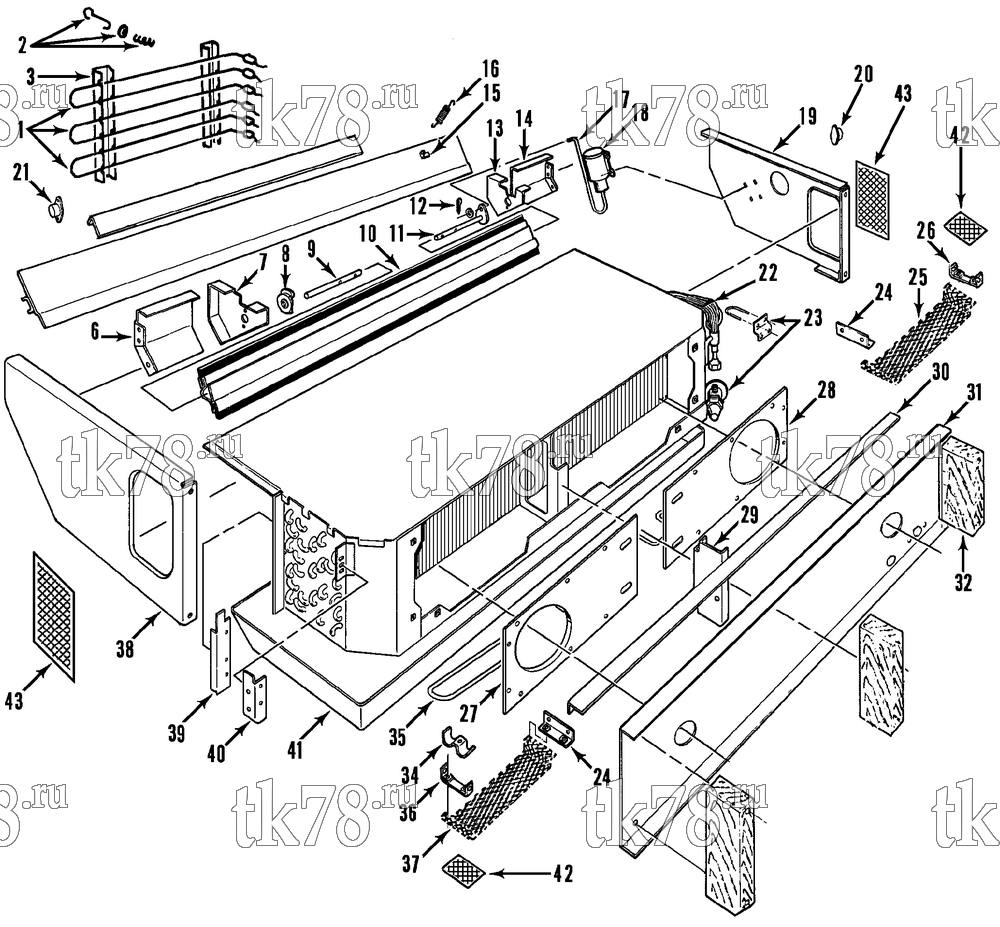

Установкa Thermo King схема EVAPORATOR COMPARTMENT – 81C14
Обновление от: 5/30/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 45-1315 | HEATER (750W, 1/5/87 & after) | 3 | |
| 45-394 | HEATER (750W, before 1/5/87) | 3 | ||
| 55-1587 | SCREW - heater | 6 | ||
| 55-2086 | FLATWASHER | 12 | ||
| 55-3275 | NUT - flexlock | 1 | ||
| 2 | 99-8420 | KEEPER - heater (1/5/87 & after) | 8 | |
| 55-2001 | FLATWASHER | 1 | ||
| 99-8490 | SPRING | 1 | ||
| 99-7831 | ROD - keeper | 1 | ||
| 3 | 99-8510 | CHANNEL - heater (1/5/87 & after) | 2 | |
| 99-5998 | BRACKET - heater (right, before 1/5/87) | 1 | ||
| 99-5997 | BRACKET - heater (left, before 1/5/87) | 1 | ||
| 4 | 98-2143 | PANEL - funnel (rear) | 1 | |
| 5 | 99-2142 | ANGLE - shutter adjusting | 1 | |
| 6 | 99-6038 | PANEL - air stop (right) | 1 | |
| 7 | 99-5995 | SUPPORT - bearing | 1 | |
| 8 | 91-3905 | BEARING - damper | 2 | |
|
10-91-3905 | Демпфер | 2 080 ₽ |
|
| 9 | 99-5990 | SHAFT - damper | 1 | |
| 10 | 98-3332 | DAMPER | 1 | |
| 55-5757 | SCREW - damper | 4 | ||
| 55-2201 | FLATWASHER | 8 | ||
| 55-4223 | NUT | 4 | ||
| 11 | 99-5991 | SHAFT & ARM - damper | 1 | |
| 12 | 55-605 | PIN - cotter | 1 | |
| 55-431 | FLATWASHER | 1 | ||
| 13 | 99-5996 | SUPPORT - bearing (left) | 1 | |
| 14 | 99-6039 | PANEL - air stop (left) | 1 | |
| 15 | 99-1267 | BRACKET - damper spring | 2 | |
| 16 | 99-5804 | SPRING - shutter | 2 | |
| 17 | 99-6067 | ROD - damper blade | 1 | |
| 18 | 44-2823 | SOLENOID | 1 | |
|
10-44-2823 | Соленоид оборотов двигателя | 5 370 ₽ |
|
| 91-3095 | BOOT - cover | 1 | ||
|
10-91-3095 | Крышка плунжера соленоида оборотов двигателя | 1 890 ₽ |
|
| 44-2756 | DIODE - solenoid | 1 | ||
|
10-44-2756 | Диод соленоида тяги | 1 920 ₽ |
|
| 99-7096 | HARNESS - ground | 1 | ||
| 19 | 98-2885 | PANEL - evaporator (left) | 1 | |
| 20 | 41-1514 | SWITCH - defrost termination | 1 | |
|
10-41-1514 | Датчик окончания оттайки | 14 220 ₽ |
|
| 99-6002 | BRACKET - switch (defrost) | 1 | ||
| 21 | 44-3627 | SWITCH - high temperature cutout | 1 | |
| 44-6691 | SWITCH - remote temperature (EMEIA) | 1 | ||
| 99-6002 | BRACKET - switch | 1 | ||
| 22 | 67-752 | COIL - evaporator | 1 | |
| 55-4974 | NUT - captive | 22 | ||
| 91-121 | NAMEPLATE - pressure vessel | 1 | ||
| 23 | 66-4098 | VALVE - expansion (R12) | 1 | |
| 66-4099 | ELEMENT - power | 1 | ||
| 61-811 | SCREEN - inlet | 1 | ||
| 66-3469 | VALVE - expansion (R502) | 1 | ||
| 61-822 | ELEMENT - power | 1 | ||
| 61-811 | SCREEN - inlet | 1 | ||
| 99-8613 | BRACKET - expansion valve | 1 | ||
| 99-661 | U-BOLT - expansion valve | 1 | ||
| 24 | 99-6004 | BRACKET - screen (center) | 2 | |
| 25 | 99-6007 | SCREEN - evaporator (left) | 1 | |
| 26 | 99-6006 | BRACKET - screen (left) | 1 | |
| 27 | 98-2146 | ORIFICE - evaporator (right) | 1 | |
| 28 | 98-2145 | ORIFICE - evaporator (left) | 1 | |
| 55-3045 | WASHER - dome | 18 | ||
| 29 | 98-2144 | CHANNEL - evaporator support | 1 | |
| 33-287 | GROMMET (5/8 id) | 2 | ||
| 55-5078 | NUT (3/8-16) | 6 | ||
| 30 | 98-2142 | ANGLE | 1 | |
| 31 | 98-2147 | BULKHEAD | 1 | |
| 32 | 99-6009 | SUPPORT - wood | 3 | |
| 55-5983 | SCREW - evaporator | 6 | ||
| 55-2641 | FLATWASHER | 6 | ||
| 55-4955 | NUT | 6 | ||
| 34 | 99-5992 | BRACKET - defrost tube | 1 | |
| 35 | 66-4100 | TUBE - defrost | 1 | |
| 36 | 99-6005 | BRACKET (right) | 1 | |
| 37 | 99-8513 | SCREEN - evaporator (right) | 1 | |
| 38 | 98-2879 | PANEL - evaporator (right) | 1 | |
| 39 | 99-5994 | BRACKET - coil | 1 | |
| 99-8488 | NUTSTRIP (3 nuts) | 1 | ||
| 40 | 99-5993 | BRACKET - coil | 1 | |
| 99-8211 | NUTSTRIP (2 nuts) | 1 | ||
| 55-1714 | RIVET | 3 | ||
| 41 | 98-3112 | PAN - drain | 1 | |
| 42 | 99-8511 | SCREEN (bottom, EMEIA) | 2 | |
| 43 | 99-8512 | SCREEN - evaporator (side, EMEIA) | 2 | |
| 55-3099 | SCREW - truss head (#10-32 x 5/8) | A/R | ||
| 55-3623 | SCREW - truss head (#10-32 x 3/4) | A/R | ||
| 55-3027 | SCREW (#10-32 x 5/8, hh) | A/R | ||
| 55-2991 | SCREW (hh, #10-32 x 3/4) | A/R | ||
| 55-3561 | SCREW (#10-32 x 1/2, hhtc) | A/R | ||
| 55-2001 | FLATWASHER (#10) | A/R | ||
| 55-2964 | LOCKWASHER (#10) | A/R | ||
| 55-5292 | NUT (#10-32) | A/R | ||
| 55-3018 | SCREW (hh, 1/4-20 x 5/8) | A/R | ||
|
20-55-3018 | Болт | 540 ₽ |
|
| 55-1587 | SCREW (hh, 1/4-20 x 3/4) | A/R | ||
| 55-2977 | SCREW (hh, 1/4-20 x 1) | A/R | ||
| 55-2086 | FLATWASHER (1/4) | A/R | ||
| 55-1800 | LOCKWASHER (1/4) | A/R | ||
| 55-4053 | NUT (1/4-20) | A/R | ||
| 55-3493 | NUT - captive (10-32) | A/R | ||
| 55-4974 | NUT - captive (1/4-20) | A/R | ||
| 55-3028 | WASHER - sealing (1/4) | 4 | ||
| 55-3008 | WASHER - sealing (#10) | 3 |
