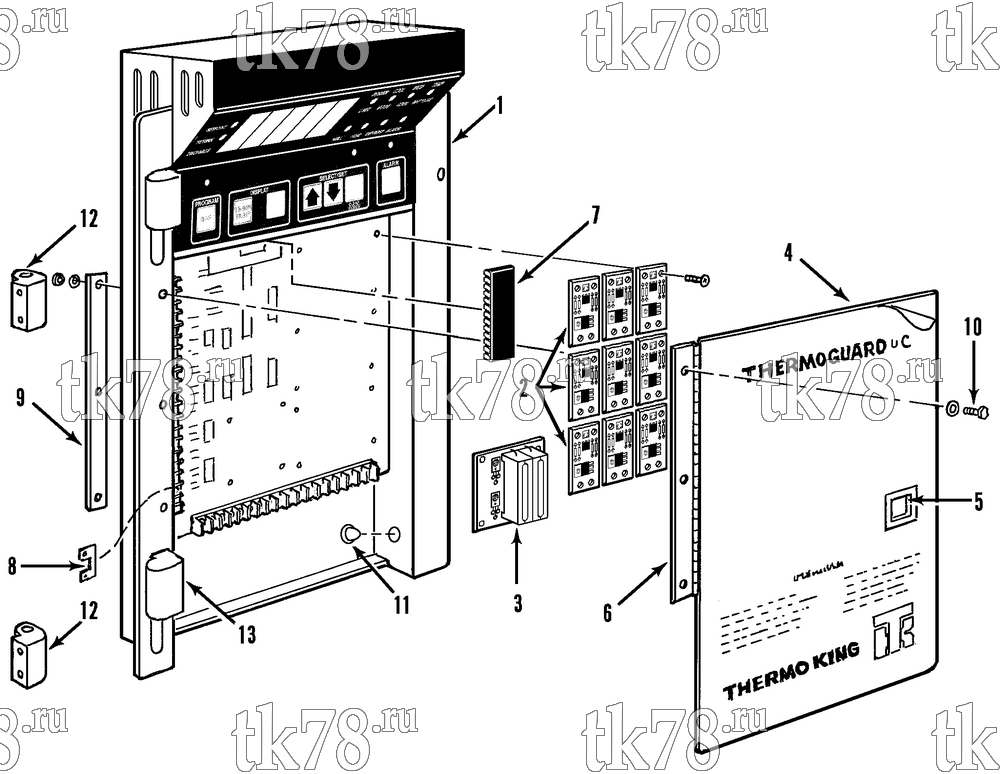

Установкa Thermo King схема MICROCONTROLLER – 81B14
Обновление от: 11/14/97
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 845-1554 | CONTROLLER - microprocessor (reman) | 1 | |
| 2 | 44-7554 | RELAY - solid state | 9 | |
| 3 | 41-542 | RELAY - solid state | 1 | |
| 4 | 91-187 | COVER | 1 | |
| 5 | 91-188 | LATCH | 1 | |
|
10-91-188 | Замок | 2 130 ₽ |
|
| 6 | 91-189 | HINGE | 1 | |
| 55-3010 | RIVET - hinge | 1 | ||
| 7 | 40-364 | KIT - chip | 1 | |
| 8 | 44-6562 | JUMPER | 1 | |
| 9 | 91-191 | BRACKET - controller | 1 | |
| 10 | 55-3443 | SCREW - bracket | 3 | |
| 55-2201 | FLATWASHER | 3 | ||
| 11 | 33-1808 | GROMMET - bumper | 2 | |
| 12 | 91-192 | HINGE - controller | 2 | |
| 55-3021 | SCREW - hinge | 4 | ||
| 55-3028 | WASHER - sealing | 4 | ||
| 13 | 91-190 | HINGE - controller | 2 | |
| 55-3021 | SCREW - hinge | 4 | ||
| 55-2086 | FLATWASHER | 4 |
